20 CAS User’s Guide
Installation
Using the Cable Tie Wraps
When you have wired outputs to the TB-50, use the cable tie wraps

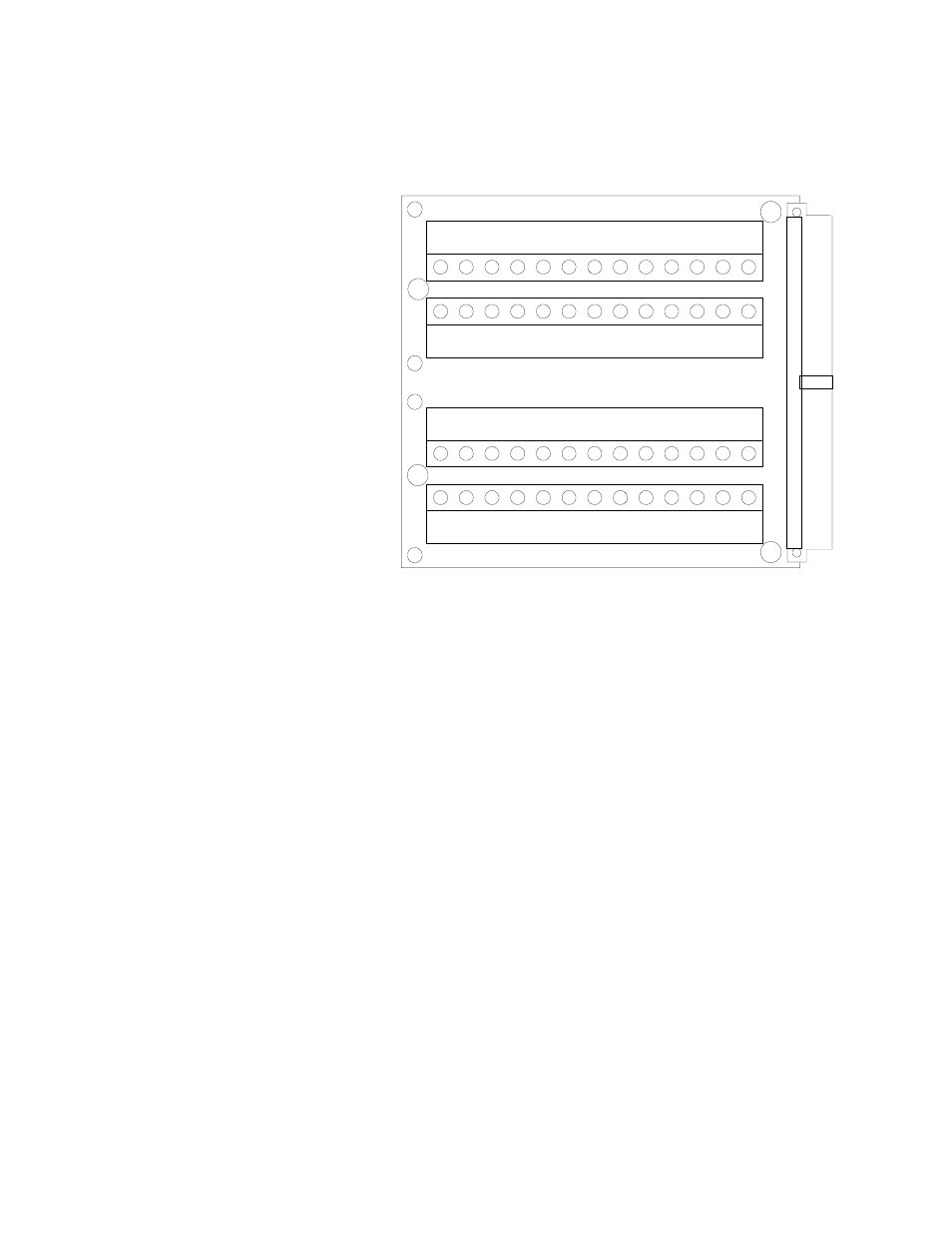

shipped with it. This diagram shows the cable tie wrap holes.
Each row of terminals has a cable tie wrap hole at one end. Thread the
cable tie wrap through the cable tie wrap hole. Then wrap the cable tie
wrap around the wires attached to that terminal block.
1 2 3 4 5 6 7 8 9 10 11 12 13A
25 24 23 22 21 20 19 18 17 16 15 14 13B
26 27 28 29 30 31 32 33 34 35 36 37 38A
50 49 48 47 46 45 44 43 42 41 40 39 38B B
B
B
B
A
A
A
A
Holes labeled "A" are mounting holes.
Holes labeled "B" are tie wrap holes.
