Panel cut dimensions – Proface FP3900 - 19 Flat Panel" User Manual
Page 68

Chapter 4 Specifications
4-29
Panel Cut Dimensions
• Panel thickness should be between 1.6mm [0.06in.] and 10mm [0.39in.]. Decide
the panel's thickness based on the level of panel strength required.
• Check that the installation panel or cabinet's surface is flat, in good condition and
has no jagged edges.
• Create the correct sized opening required to install the FP, using the installation
dimensions given.
• If desired, metal reinforcing strips can be attached to the inside of the panel, near
the Panel Cut, to increase the panel's strength.
SEE
Structural specifications (page4-18)

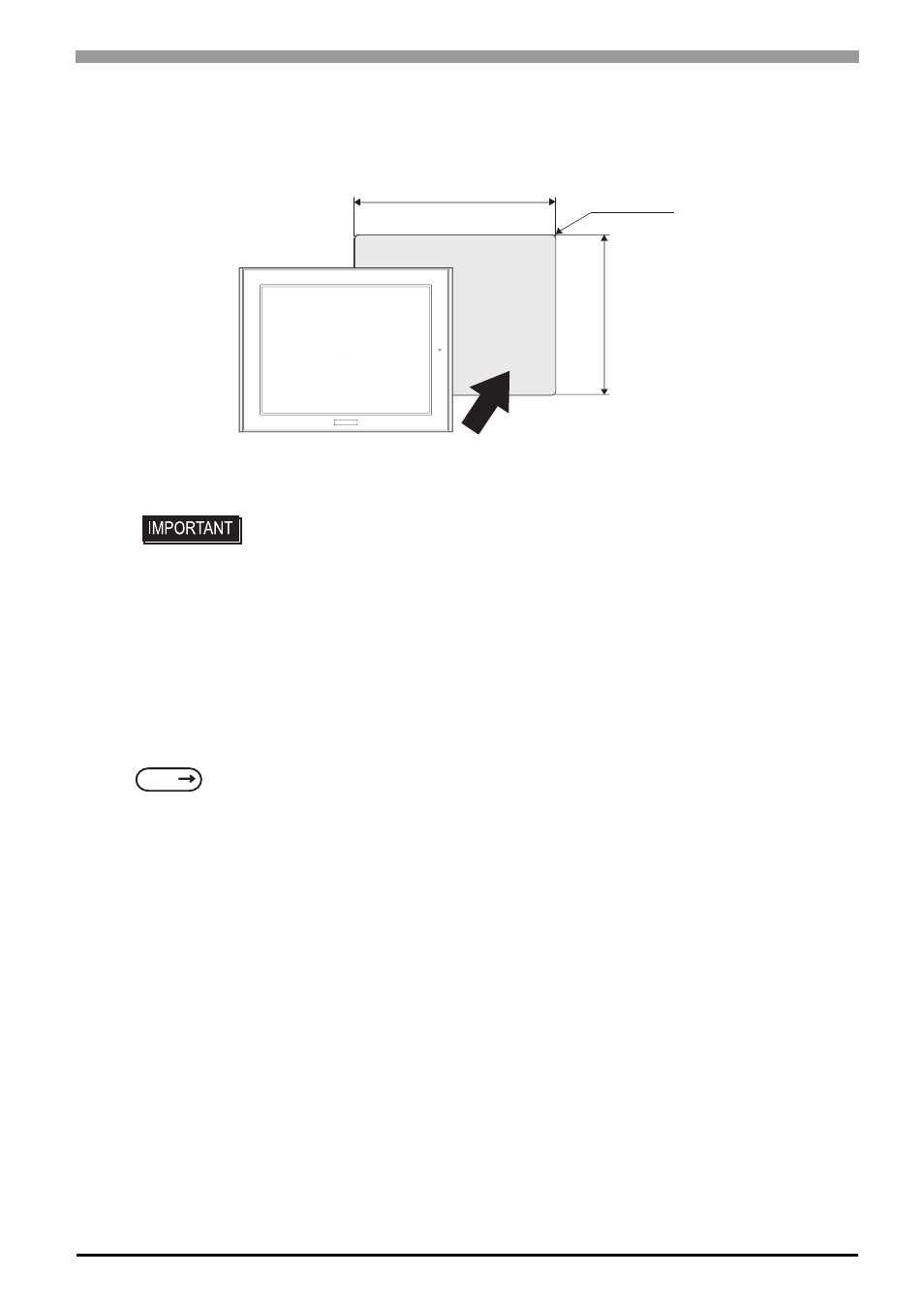

301.5 [11.87 ]
+1.0
-0
r
≤ 3 [0.12]
22
7.
5
[8
.9
6
]
+0
.0
4
-0
+1
.0
-0
+0.04
-0
FP
Panel Cut
