Chapter 9 Maintenance
9-17
9.3.4
FP-3710T Series
Replacing CA3-BLU15-01 and CA7-BLU15-01
(1)

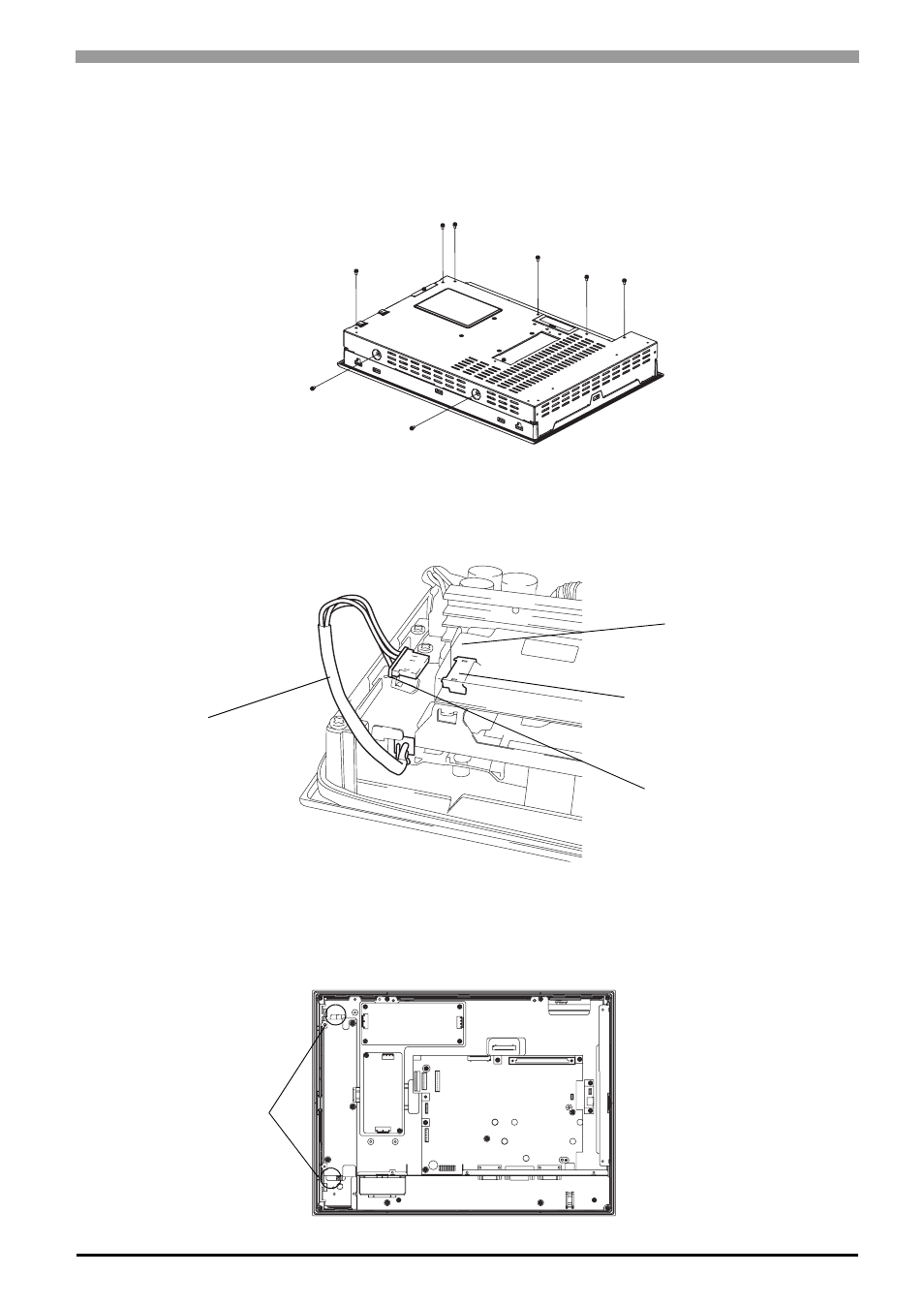

Turn off the FP unit’s power supply. Remove the eight (8) cover attachment screws.
(2)
Remove the FP unit’s rear cover.
(3)
Remove the cable from the Inverter Insulation Sheet, and then free the cable from the cable clamp. Next,
disconnect the cable connector from the Inverter board’s backlight connector.
(4)
Insert a screwdriver into the two holes (points) shown below, and remove the backlight attachment
screws (1 per hole).
Inverter Insulating Sheet
Backlight Connector
Cable Clump
Cable
Insert a driver
(2 holes)
