(4)

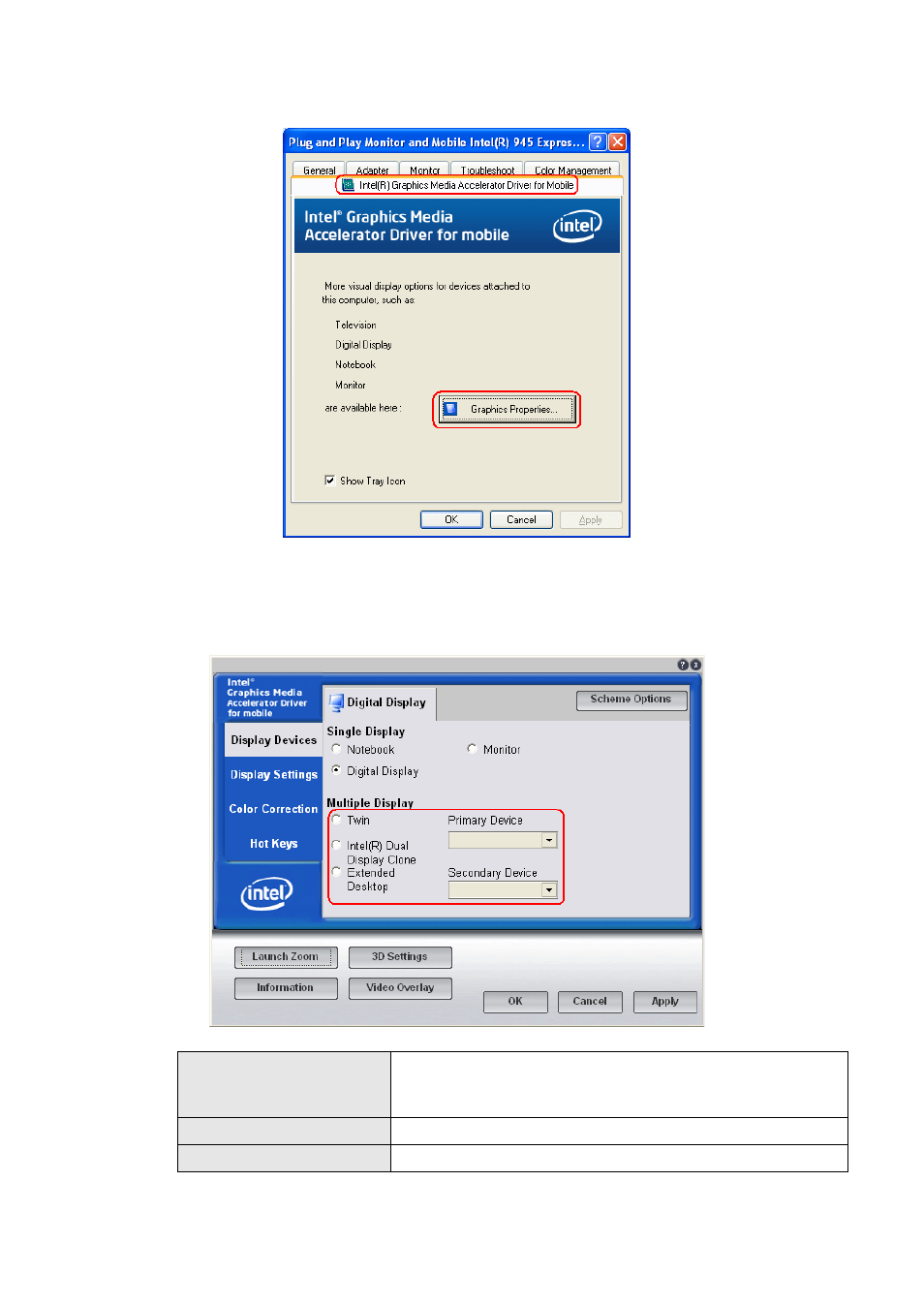

In the Intel(R) Graphics Media Accelerator Drive for Mobile tab, click [Graphics Properties].

(5)

In the properties window that appears, select the menu to display using [Multi-display]

. Select the main

monitor for the primary device and the extended monitor for the secondary device.

* For details about each menu, refer to “ Multi-display function types (page 11)”.

(6)

Click [Apply].

[Notebook]

Select this option when using the PL3000 Series TFT type.
Do not select this option when using the PL3000 Series box
type as the image signal output will stop.

[PC monitor]

This is the monitor connected with an analog RGB cable.

[Digital display]

This is the monitor connected with a DVI cable.
