Proface LT3300 - 5.7 All-in-One HMI" User Manual
Page 85
LT3000 Series Hardware Manual
4-18

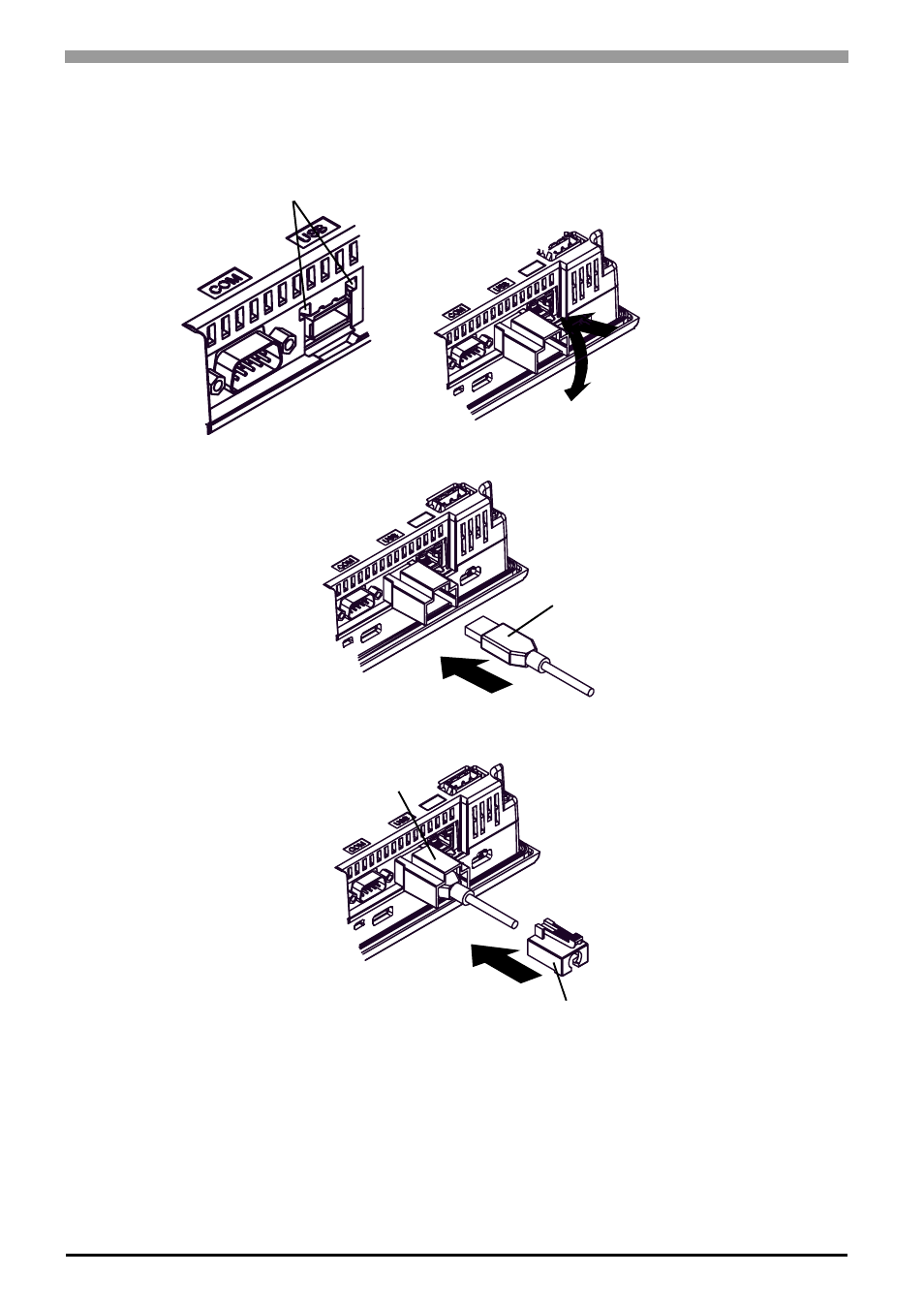

(2) With the main unit display part positioned so that it is facing down, attach the USB holder to the USB
host interface. Insert the picks on the top of the USB holder into the attachment holes on the main unit,
and then insert the holder into the USB host interface so that the holder is secured in the main unit.
(3) Insert the USB cable into the USB Host Interface.
(4) Attach the USB cover to the USB host interface. Hold the USB cover in the orientation shown in the
figure and insert it into the USB holder.
Attachment Hole
USB cable
USB Holder
USB cover
