Chapter 2 Specifications
2-25

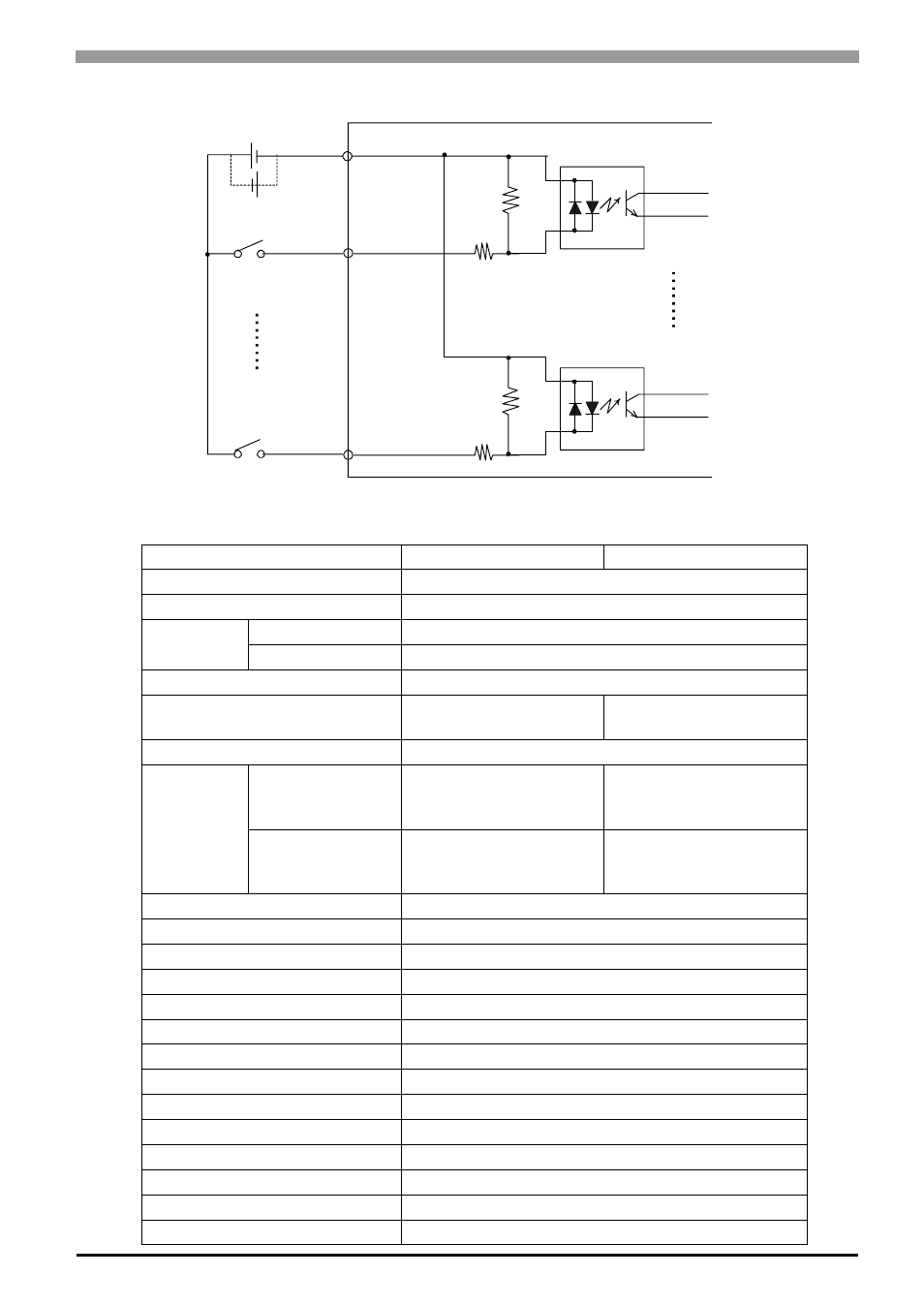

• Input Circuit
‹ Output Specifications
Output Terminal OUT0 to OUT3 OUT4 to OUT15
Rated Voltage DC24V
Allowable Voltage Range DC20.4V to DC28.8V
Output
Method LT330*-*1-D24-K Sink Output
LT330*-*1-D24-C Source Output
Maximum Load Current 0.2A/point, 1.6A/common
Minimum Load Current 1mA
1mA (Pulse/PWM output
unavailable)
Output Voltage Drop DC 0.5V or less
Output
Delay Time
OFF to ON
5µs or less (With output
at DC24V, 200mA)
0.5ms or less (With
output at DC24V,
200mA)
ON to OFF
5µs or less (With output
at DC24V, 200mA)
0.5ms or less (With
output at DC24V,
200mA)
Voltage Leakage (when OFF) 0.1mA or less
Clamp Voltage 39V ± 1V
Type of Output Transistor Output
Common Lines 2
Common Design 8 points/1 common line x 2
External Connection 38-pin connector (also used for Input)
Output Protection Type Output is unprotected
Internal Fuse 3.5A, 125V Chip fuse x 2 (not replaceable)
Surge Control Circuit Zener diode
Output Points 16
Output Signal Display No LED indicators
Status Display Element None
Isolation Method Photocoupler Isolation
External Power Supply For Signal: DC 24V
DC 24V
External Power
Internal Circuit
COM B9 +
-
*1
*1 Dotted line shows connection to sink output type.
IN15 A8
IN14 B8
IN13 A7
IN12 B7
IN11 A6
IN10 B6
IN9 A5
IN8 B5
IN7 A4
IN6 B4
IN5 A3
IN4 B3
IN3 A2
IN2 B2
IN1 A1
IN0 B1
Internal Circuit
-
+
