Chapter 4 Installation and Wiring
4-17
(3) Insert the USB cable into the USB Host Interface.
(4) Attach the USB cover to the USB host interface. Insert the USB cover into the tab of the USB holder.
4.3.2
LT-3300 Series
Attachment

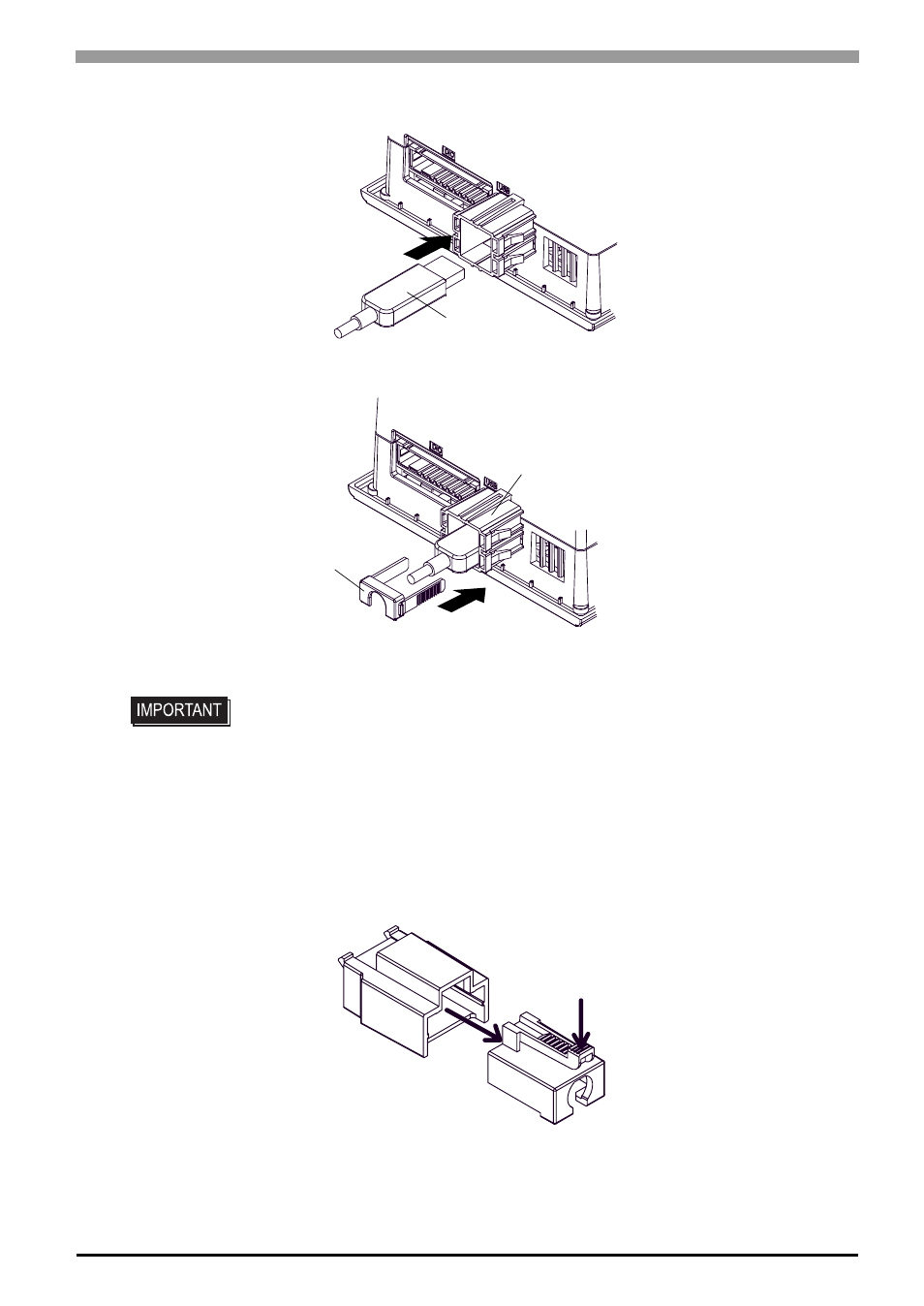

(1) Before starting the procedure, pull out the USB cover from the USB holder by holding the top and
bottom of the USB holder and pressing down the tab on the USB cover.
• Insert the USB cover in the orientation shown in the illustration above.
USB cable
USB cover
USB Holder
c
Press down the tab,
d
And pull out the
USB cover.
