Chapter 2 Specifications
2-27

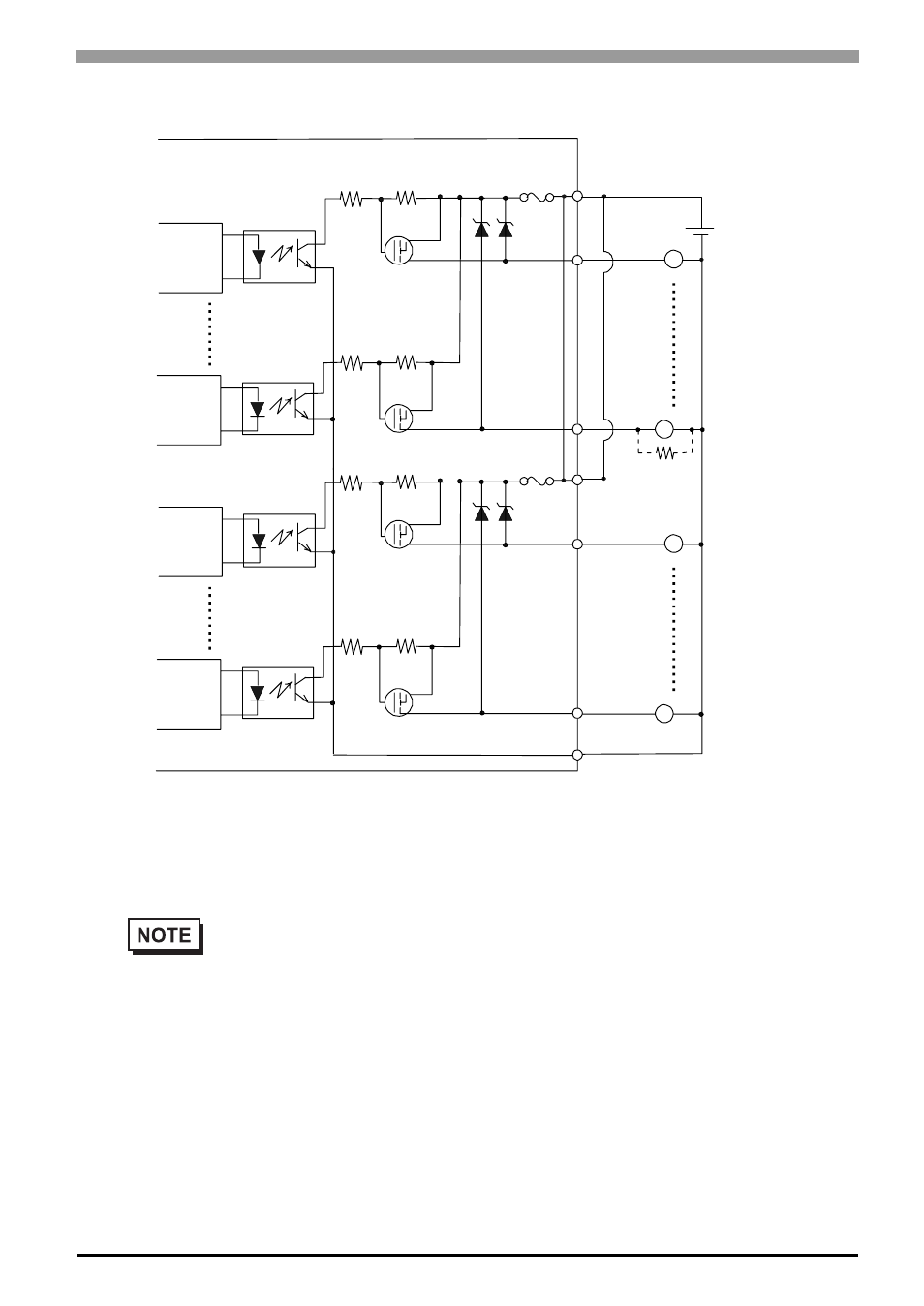

• LT330*-*1-D24-C Output Circuit (Source type)
• Since the output terminals are not electrically protected, an output line might be short-cir-
cuited or a connection fault might burn the external devices and LT. Be sure to install an
applicable fuse for each output terminal if there should be the risk for the current running
over the rating.
L
L
L
L
OUT6 B15
OUT5 A14
OUT4 B14
OUT3 A13
OUT2 B13
OUT1 A12
-
+
OUT7 A15
OUT14 B19
OUT13 A18
OUT12 B18
OUT11 A17
OUT10 B17
OUT9 A16
OUT15 A19
+24V A10
OUT0 B12
OUT8 B16
0V B11
Internal Circuit
Internal Circuit
Internal Circuit
Internal Circuit
Fuse
3.5A
DC 24V
External Power
+24V B10
Fuse
3.5A
*1 OUT0 to OUT3 only.
(Example) The output delay time (ON to OFF) is 1.5
µs where the output current is DC 24V, 50mA.
Install an external dummy resistor to increase the amount of current when more responsiveness is
required and the load is light.
OUT0 to OUT3 only
Dummy Resistor*
1
