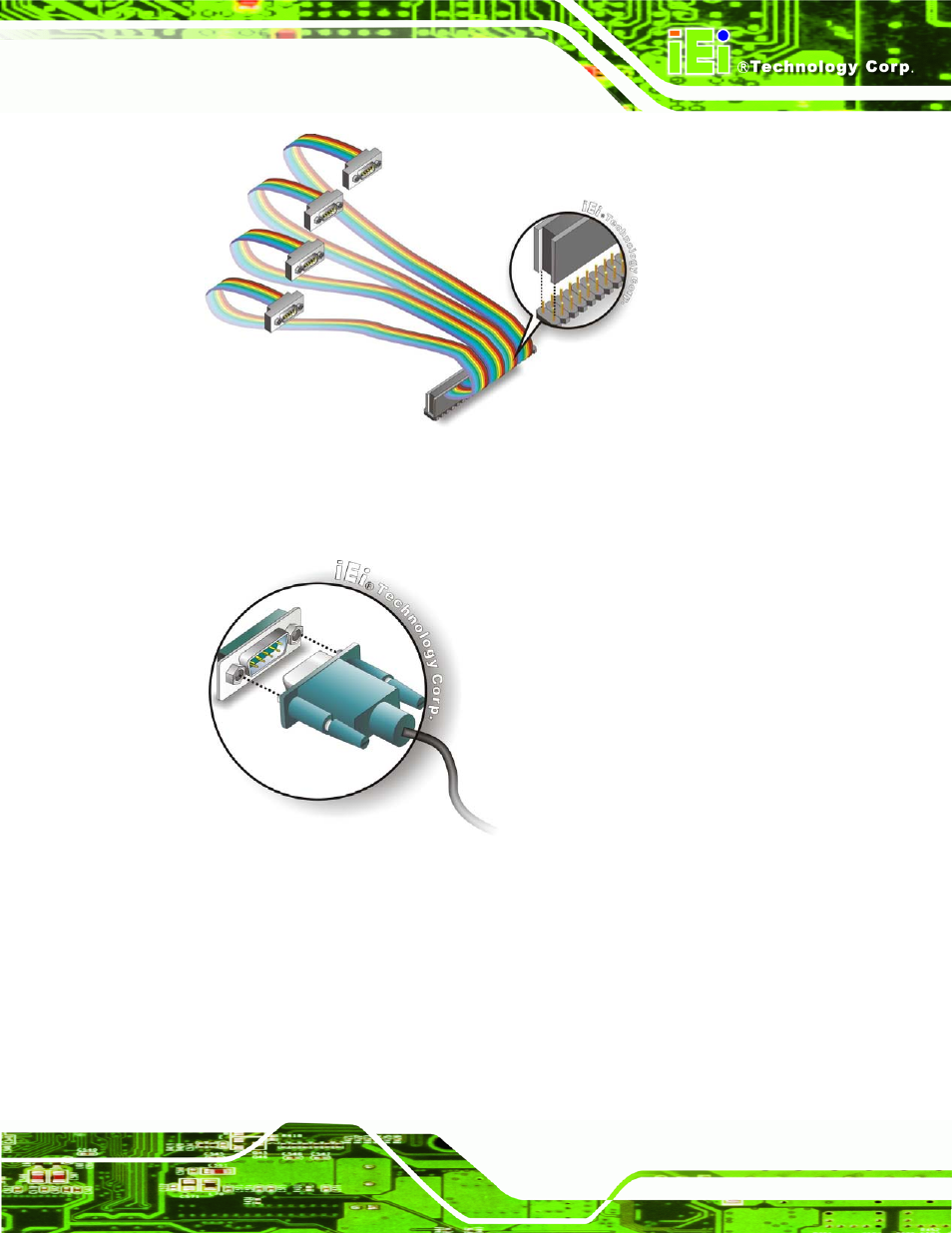

Figure 4-18: Four Serial Port Connector

Step 3:

Secure the serial ports to the chassis. Tighten the screws on the DB-9

connectors to secure them to the chassis.

Step 0:

Figure 4-19: Serial Device Connector

4.7.7 USB Cable

The NOVA-PV-D5251/D4251 is shipped with a dual port USB 2.0 cable. To connect the

USB cable connector, please follow the steps below.

Step 1:

Locate the connectors. The locations of the USB connectors are shown in

Chapter 3.
