NOVA-PV-D5251/D4251 5.25" SBC
Page 86
WARNING:
If the USB pins are not properly aligned, the USB device can burn out.
Step 2: Align the connectors. The cable has two connectors. Correctly align pin 1on
each cable connector with pin 1 on the NOVA-PV-D5251/D4251 USB connector.
Step 3: Insert the cable connectors. Once the cable connectors are properly aligned
with the USB connectors on the NOVA-PV-D5251/D4251, connect the cable
connectors to the on-board connectors. See Figure 4-20.

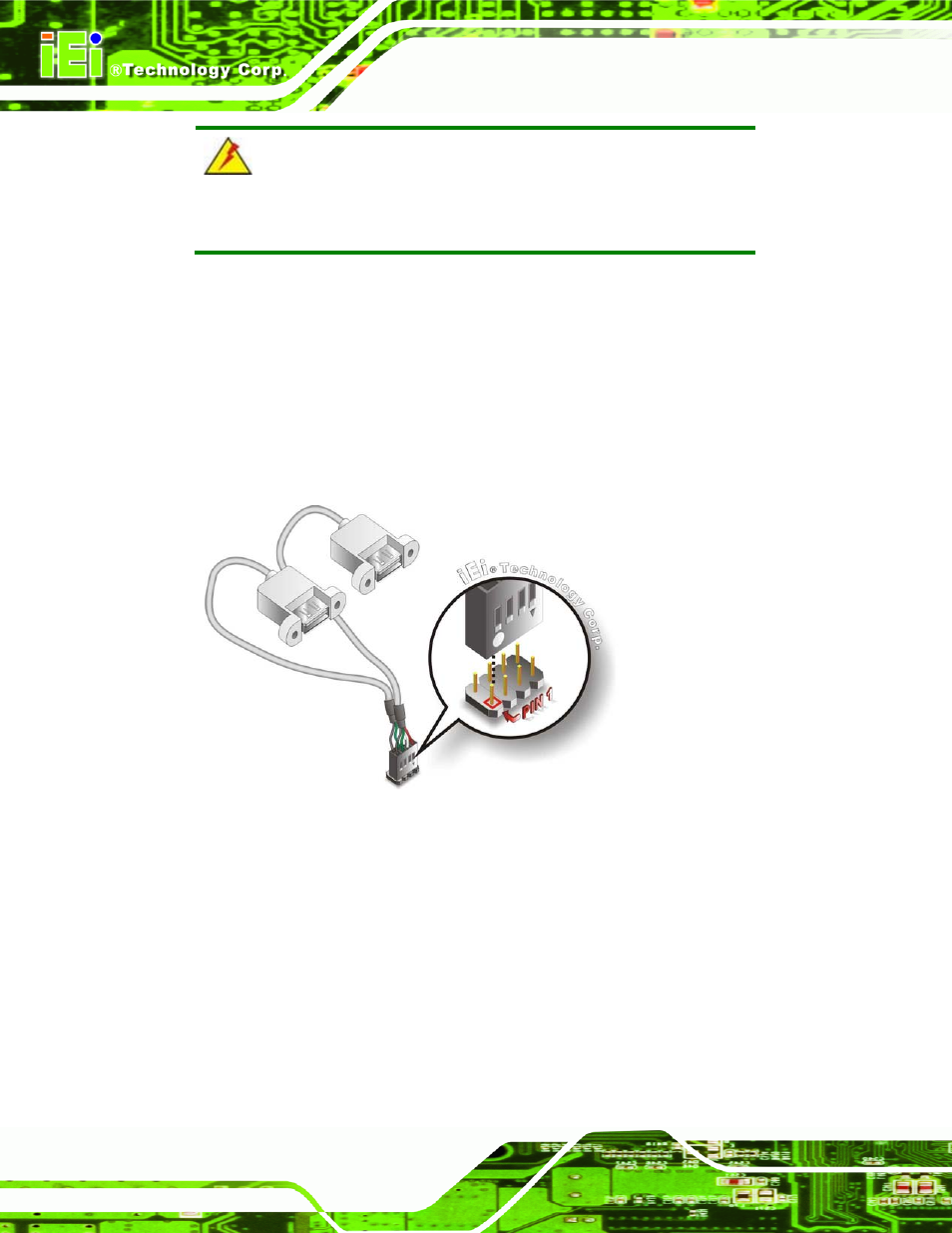

Figure 4-20: Dual USB Cable Connection
Step 4: Attach the USB connectors to the chassis. The USB 2.0 connectors each of
two retention screw holes. To secure the connectors to the chassis please refer
to the installation instructions that came with the chassis. Step 0:
4.8 External Peripheral Interface Connection
The following external peripheral devices can be connected to the external peripheral
interface connectors.
