NOVA-PV-D5251/D4251 5.25" SBC

Page 27

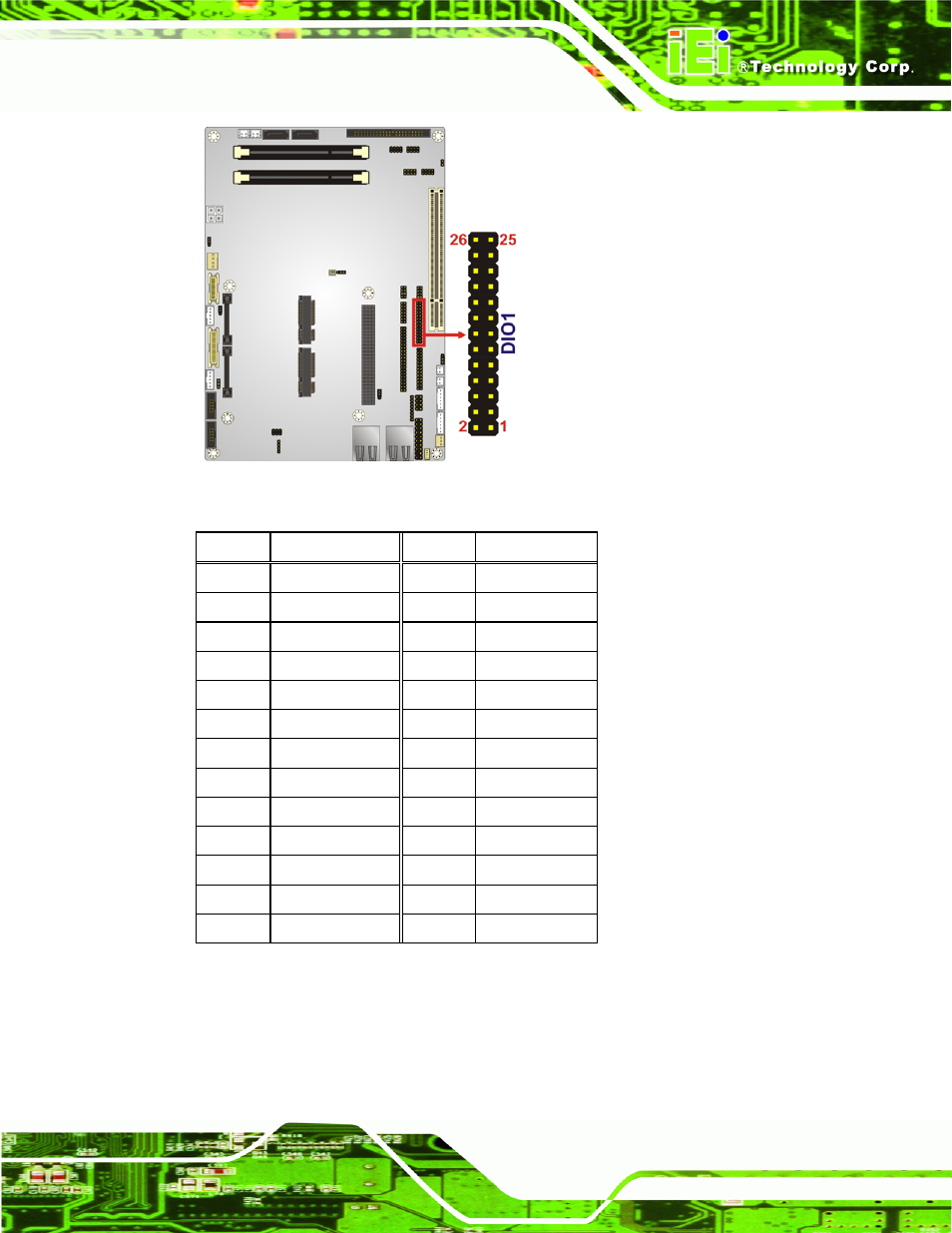

Figure 3-7: Digital I/O Connector Locations

Pin Description Pin Description

1 GND

2 VCC

(+5V)

3 IN0

4 OUT0

5 IN1

6 OUT1

7 IN2

8 OUT2

9 IN3

OUT3

11 8IN0

12 8OUT0

13 8IN1

14 8OUT1

15 8IN2

16 8OUT2

17 8IN3

18 8OUT3

19 8IN4

20 8OUT4

21 8IN5

22 8OUT5

23 8IN6

24 8OUT6

25 8IN7

26 8OUT7

Table 3-6: Digital I/O Connector Pinouts
