NOVA-PV-D5251/D4251 5.25" SBC

Page 71

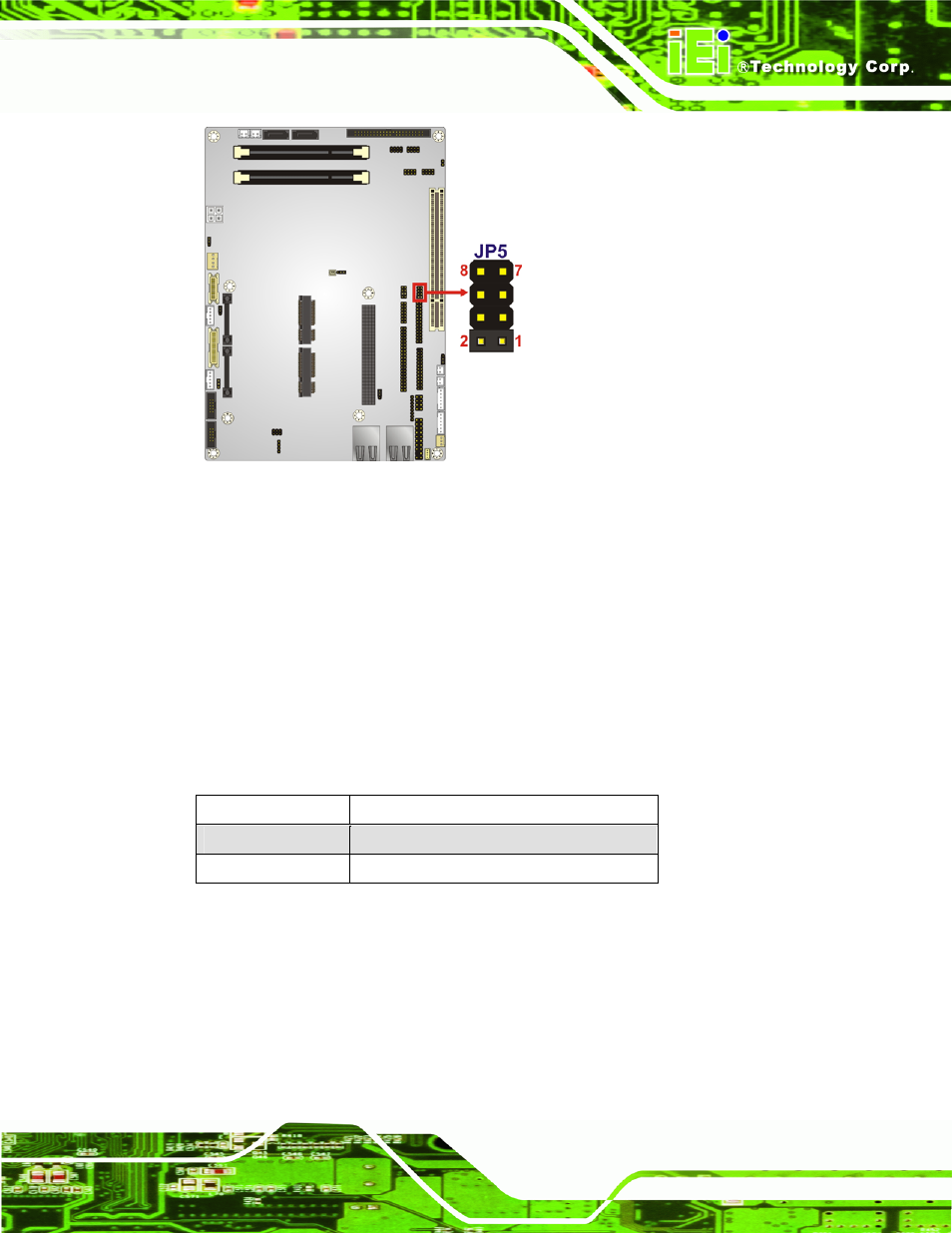

Figure 4-6: COM 6 Function Select Jumper Location

4.5.4 CompactFlash® Setup

Jumper Label:

JCF1

Jumper Type:

2-pin header

Jumper Settings:

See Table 4-5

Jumper Location:

See Figure 4-7

The CompactFlash® slot is connected through an IDE connection. This jumper sets the

CompactFlash® card as the master or slave IDE device.

Setting Description

Open

Slave (Default)

Short 1-2

Master

Table 4-5: CompactFlash® Setup Jumper Settings
