NOVA-PV-D5251/D4251 5.25" SBC
Page 58
3.3 External Peripheral Interface Connector Panel
The following diagrams show the NOVA-PV-D5251/D4251 external peripheral interface
connector (EPIC) panel. The NOVA-PV-D5251/D4251 EPIC panel consists of the
following:
ƒ 2 x Ethernet connectors (G2L2 models)
ƒ 4 x Ethernet connectors (G4 model)
ƒ 1 x RS-232 serial port connector (G4 model)

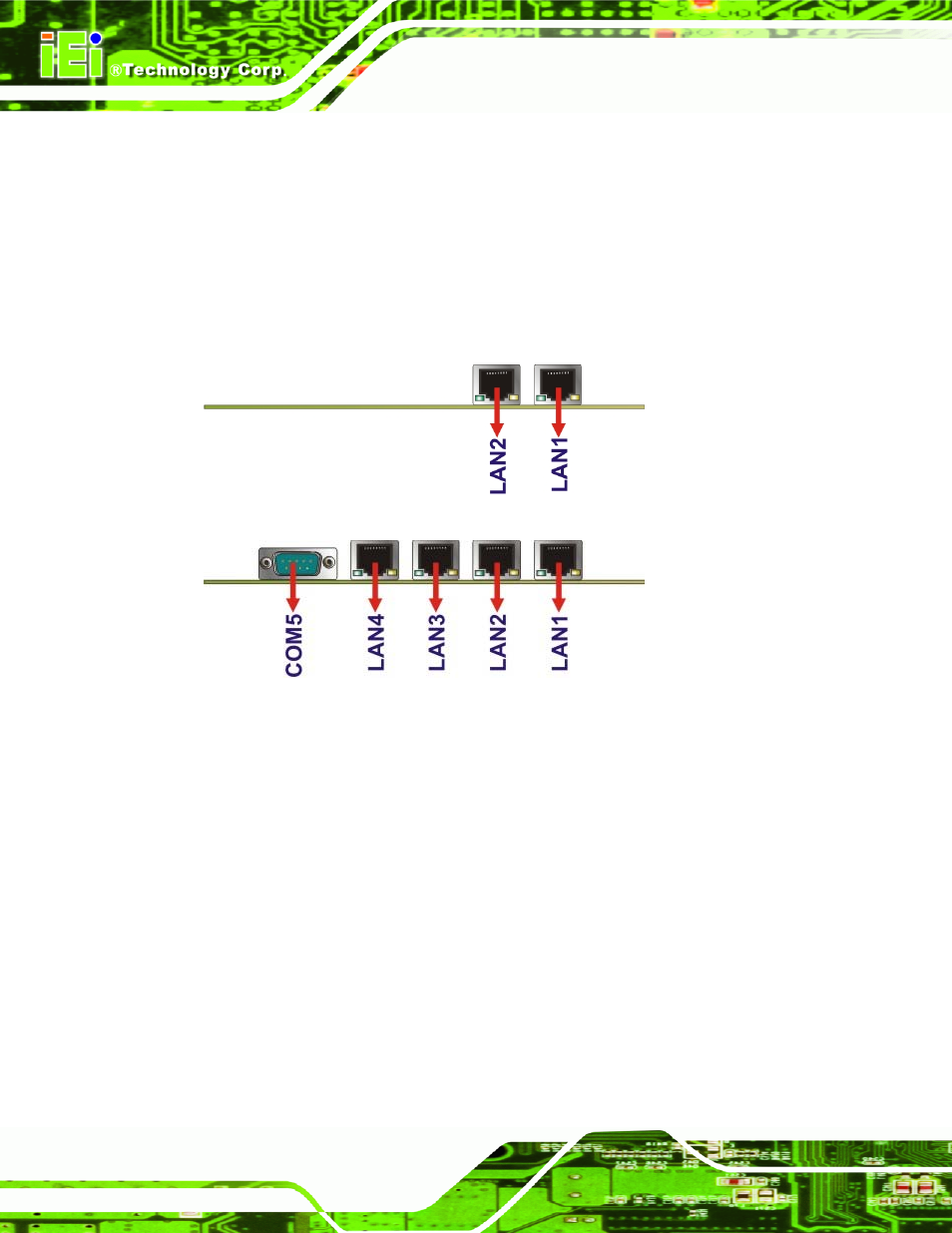

Figure 3-33: External Peripheral Interface Connector (G2L2 Models)
Figure 3-34: External Peripheral Interface Connector (G4 Models)
3.3.1 Ethernet Connector
CN Label: LAN1, LAN2, (LAN3, LAN4)
CN Type: RJ-45
CN Location: See
7
Figure 3-33
CN Pinouts: See
7
Table 3-33
The NOVA-PV-D5251/D4251 is equipped with two or four built-in RJ-45 Ethernet
controllers. Each controller can connect to the LAN through one RJ-45 LAN connector.
