NOVA-PV-D5251/D4251 5.25" SBC

Page 24

NOTE:

1. Both CompactFlash® Type I and Type II cards are supported.

2. To use SATA and CF, CF must be set to slave.

A CompactFlash® Type I or Type II card can be used in this slot.

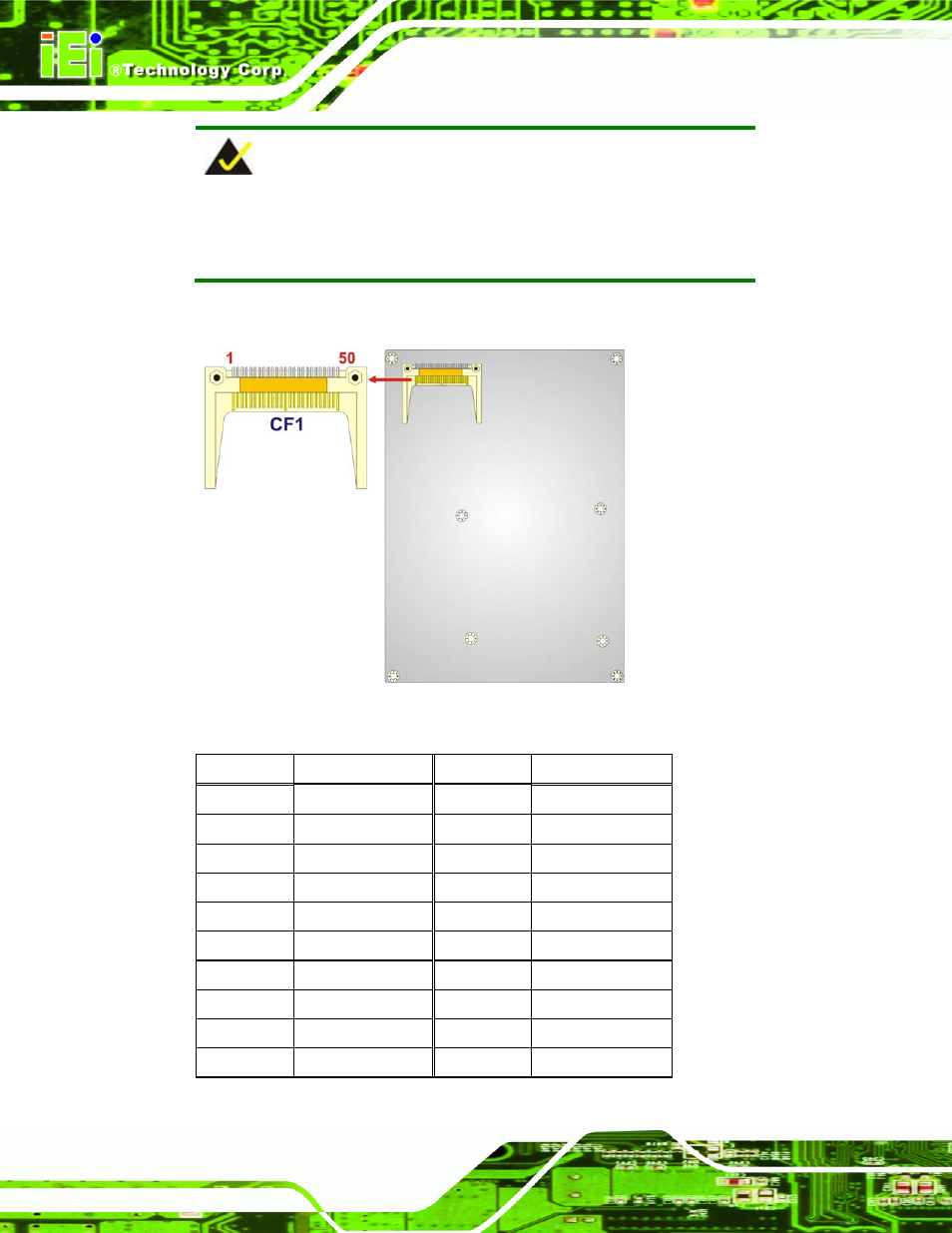

Figure 3-5: CompactFlash® Slot Location

Pin Description

Pin Description

1 GND

26

CD1#

2 D3

27

D11

3 D4

28

D12

4 D5

29

D13

5 D6

30

D14

6 D7

31

D15

7 CE#

32

CE2#

8 A10

33

VS1#

9 OE#

34

IOR#

10 A9

35 IOW#
