NOVA-PV-D5251/D4251 5.25" SBC

Page 68

4.5.1 AT/ATX Power Select

Jumper Label:

J_AUTOPWR1

Jumper Type:

3-pin header (1x3)

Jumper Settings:

See Table 4-2

Jumper Location:

See Figure 4-4

The AT/ATX Power Select jumper specifies the systems power mode as AT or ATX.

AT/ATX Power Select jumper settings are shown in Table 4-2.

Setting Description

Short 1 - 2

Use ATX power (Default)

Short 2 – 3

Use AT power

Table 4-2: AT/ATX Power Select Jumper Settings

The location of the AT/ATX Power Select jumper is shown in Figure 4-4 below.

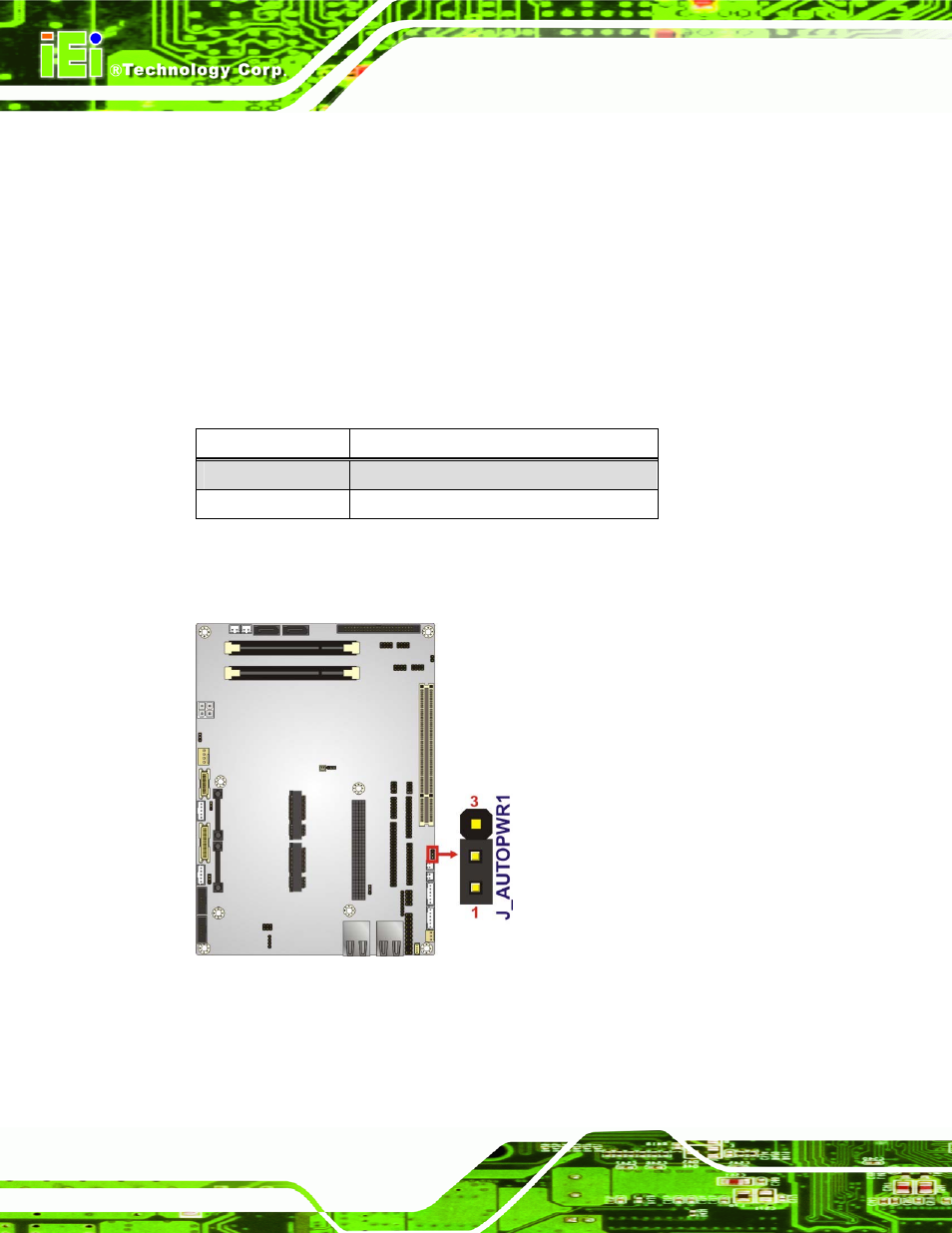

Figure 4-4: AT/ATX Power Select Jumper Location
