NOVA-PV-D5251/D4251 5.25" SBC

Page 28

3.2.6 Digital I/O Programming Port

CN Label:

P_DIO_1

CN Type:

8-pin header (1x8)

CN Location:

See

6

Figure 3-26

CN Pinouts:

See

6

Table 3-7

Used for programming the LC4064 chip connected to connector DIO1.

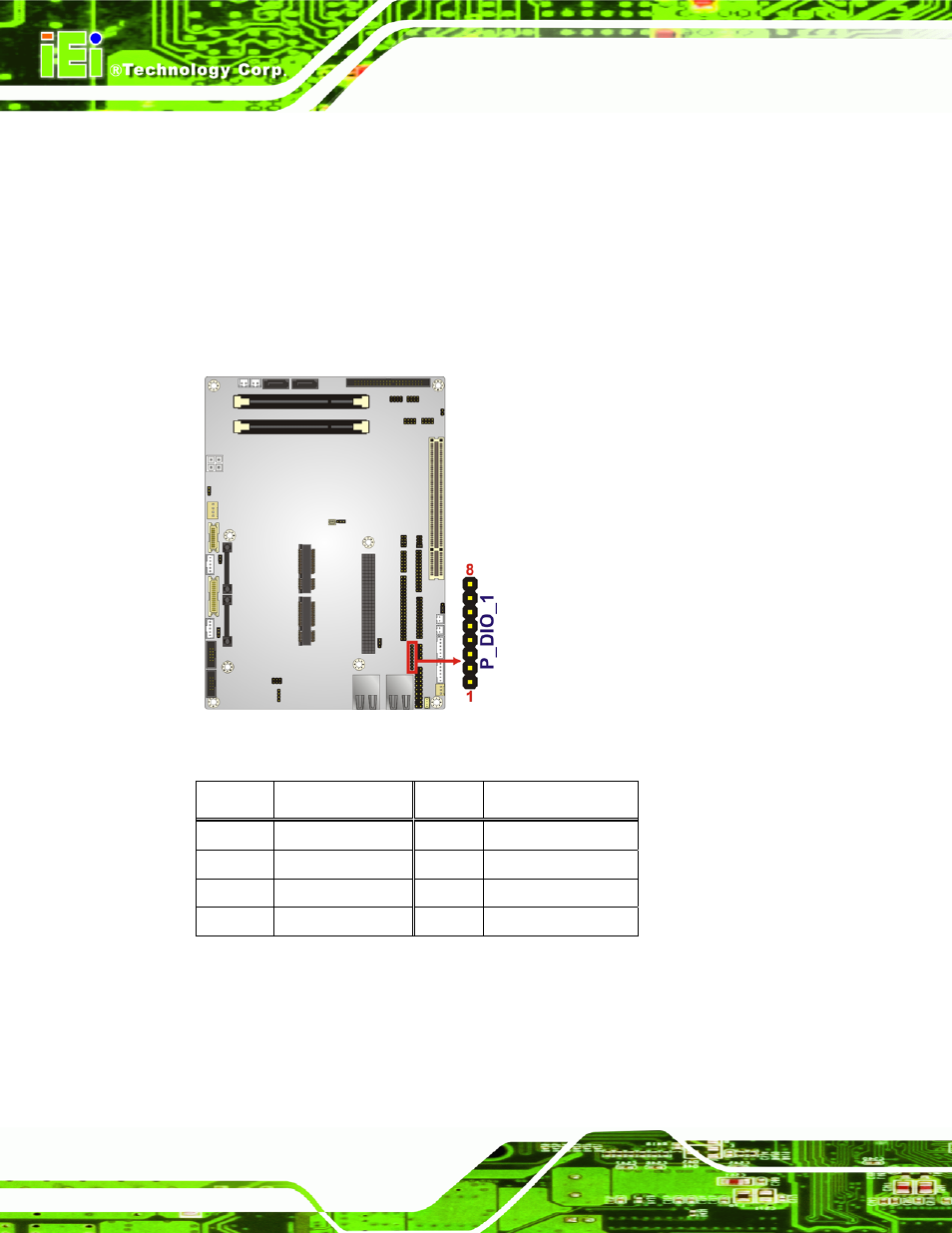

Figure 3-8: Programming Port Location

Pin Description Pin

Description

1 3.3V

2

D_TDO

3 D_TDI

4

NC

5 NC

6

D_TMS

7 GND

8

D_TCK

Table 3-7: Programming Port Pinouts
