Figure 3-20: pcie mini card slot location – IEI Integration NOVA-PV-D4251_D5251 v1.01 User Manual

Page 58

NOVA-PV-D5251/D4251 5.25" SBC

Page 44

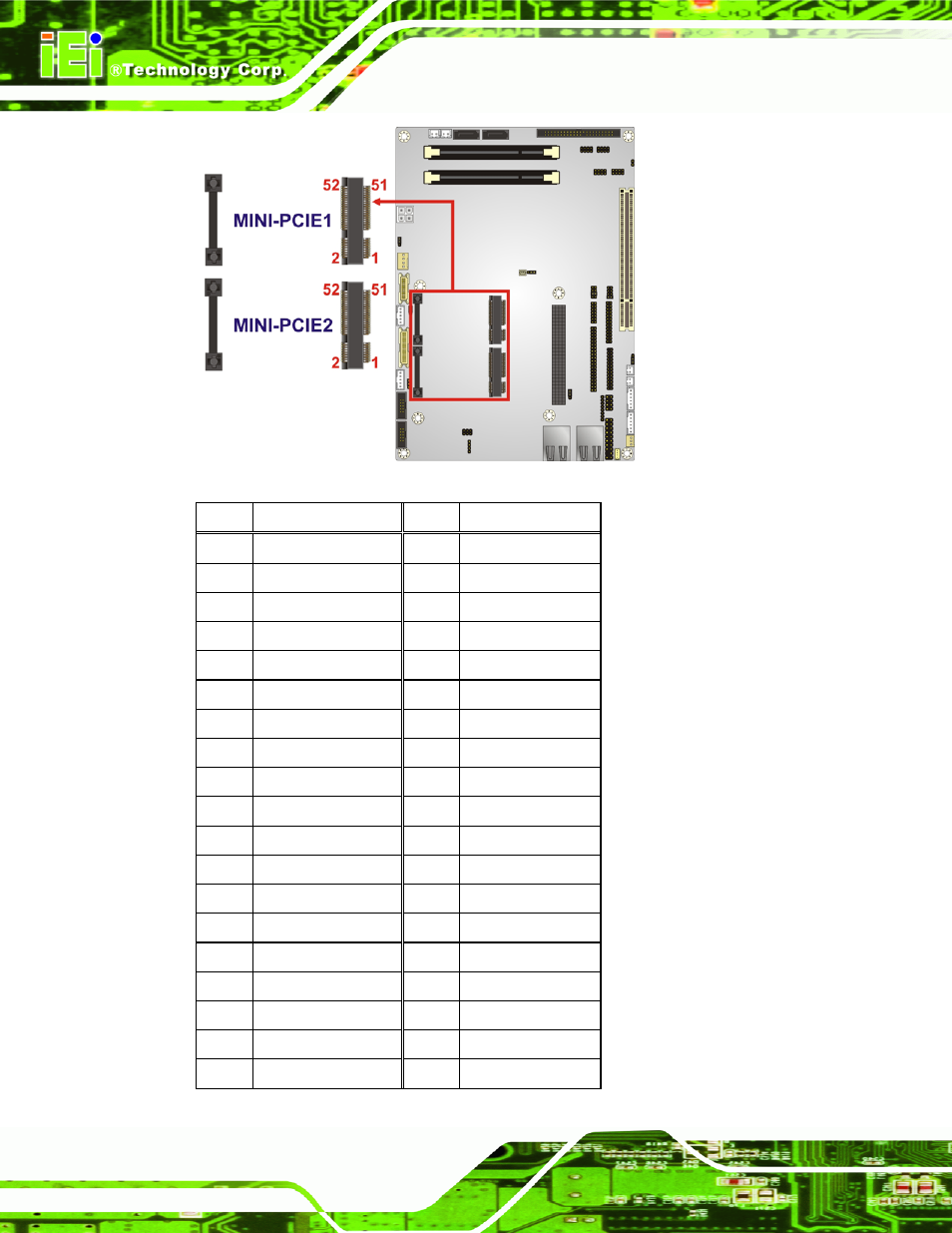

Figure 3-20: PCIe Mini Card Slot Location

Pin Description

1 PCIE_WAKE#

2 VCC3

3 N/C

4 GND

5 N/C

6 1.5V

7 N/C

8 N/C

9 GND

N/C

11 CLK-

12 N/C

13 CLK+

14 N/C

15 GND

16 N/C

17 PCIRST#

18 GND

19 N/C

20 VCC3

21 GND

22 PCIRST#

23 PERN2

24 3VDual

25 PERP2

26 GND

27 GND

28 1.5V

29 GND

30 SMBCLK

31 PETN2

32 SMBDATA

33 PETP2

34 GND

35 GND

36 USBD-

37 GND

38 USBD+
