NOVA-PV-D5251/D4251 5.25" SBC

Page 47

3.2.20 Power Button Connector

CN Label:

PWR_BTN1

CN Type:

2-pin wafer (1x2)

CN Location:

See Figure 3-22

CN Pinouts:

See Table 3-22

The power button connector is connected to a power switch on the system chassis.

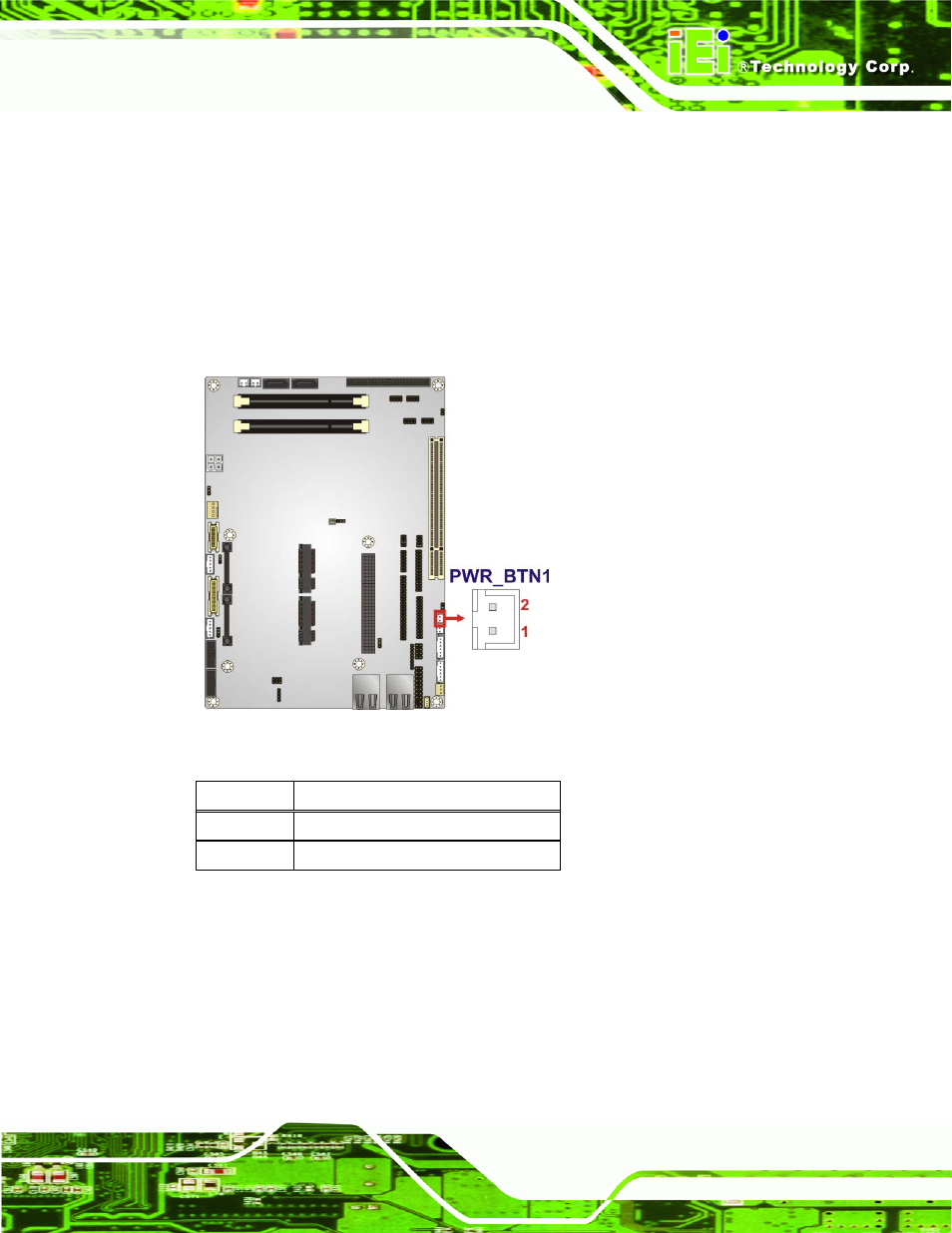

Figure 3-22: Power Button Connector Location

Pin Description

1 PWRBTN#

signal

2 GND

Table 3-22: Power Button Connector Pinouts

3.2.21 Reset Button Connector

CN Label:

RST_BTN1

CN Type:

2-pin wafer (1x2)

CN Location:

See Figure 3-23
