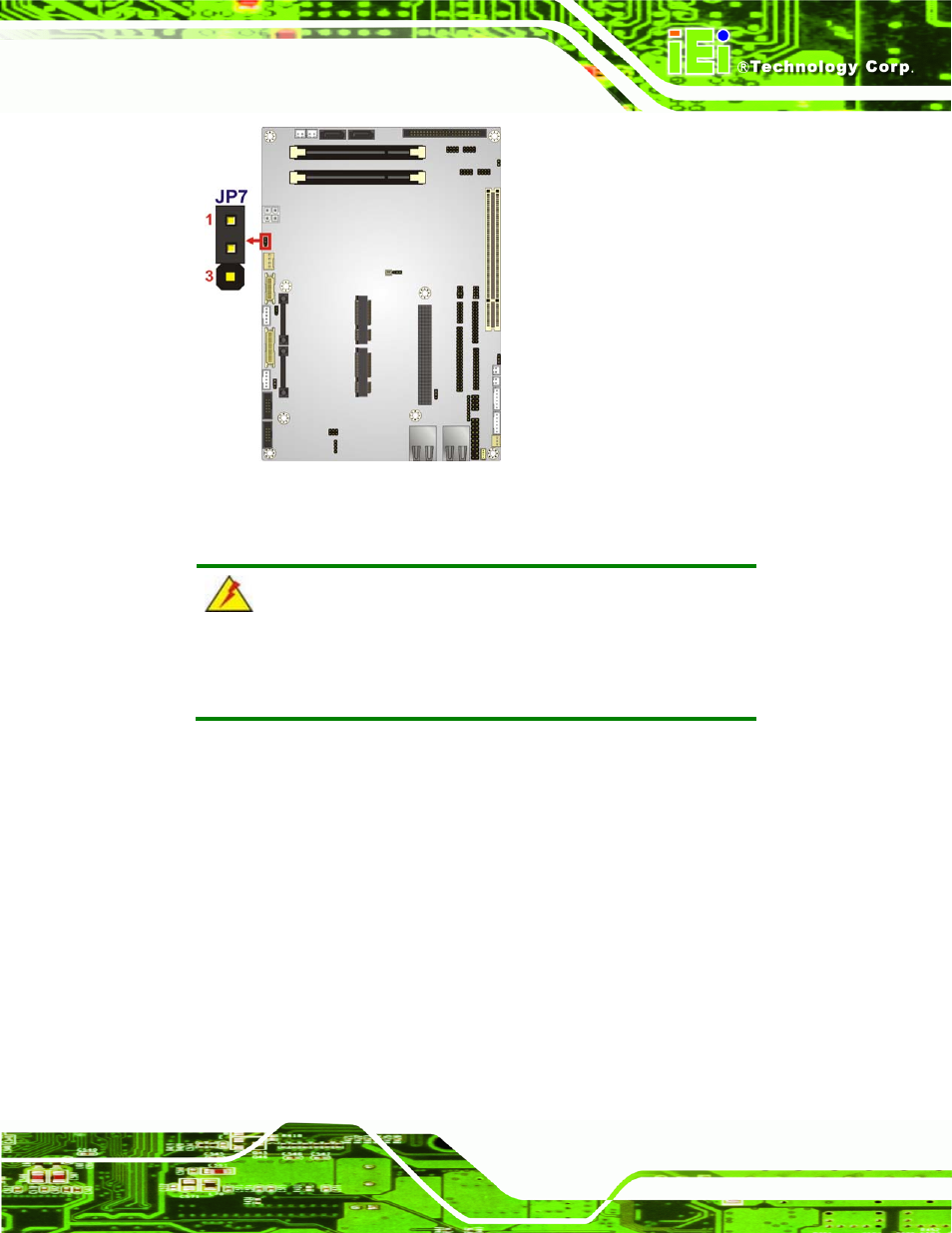

Figure 4-8: CPU Fan Setting Jumper Location
4.5.6 LVDS Voltage Select
WARNING:
Incorrect voltages can destroy the LCD panel. Make sure to select a
voltage that matches the voltage required by the LCD panel.
Jumper Label: J_VLVDS1 for LVDS2
J_VLVDS2 for LVDS3
Jumper Type: 3-pin header
Jumper Settings: See Table 4-7
Jumper Location: See Figure 4-9
The LCD voltage selection jumper sets the voltage of the power supplied to the LCD panel.
The J_VLVDS1 jumper sets the voltage connected to LVDS2 while the J_VLVDS2 jumper
sets the voltage connected to LVDS3.
