The SATA Power Connectors provides +5V power output to the SATA connectors.

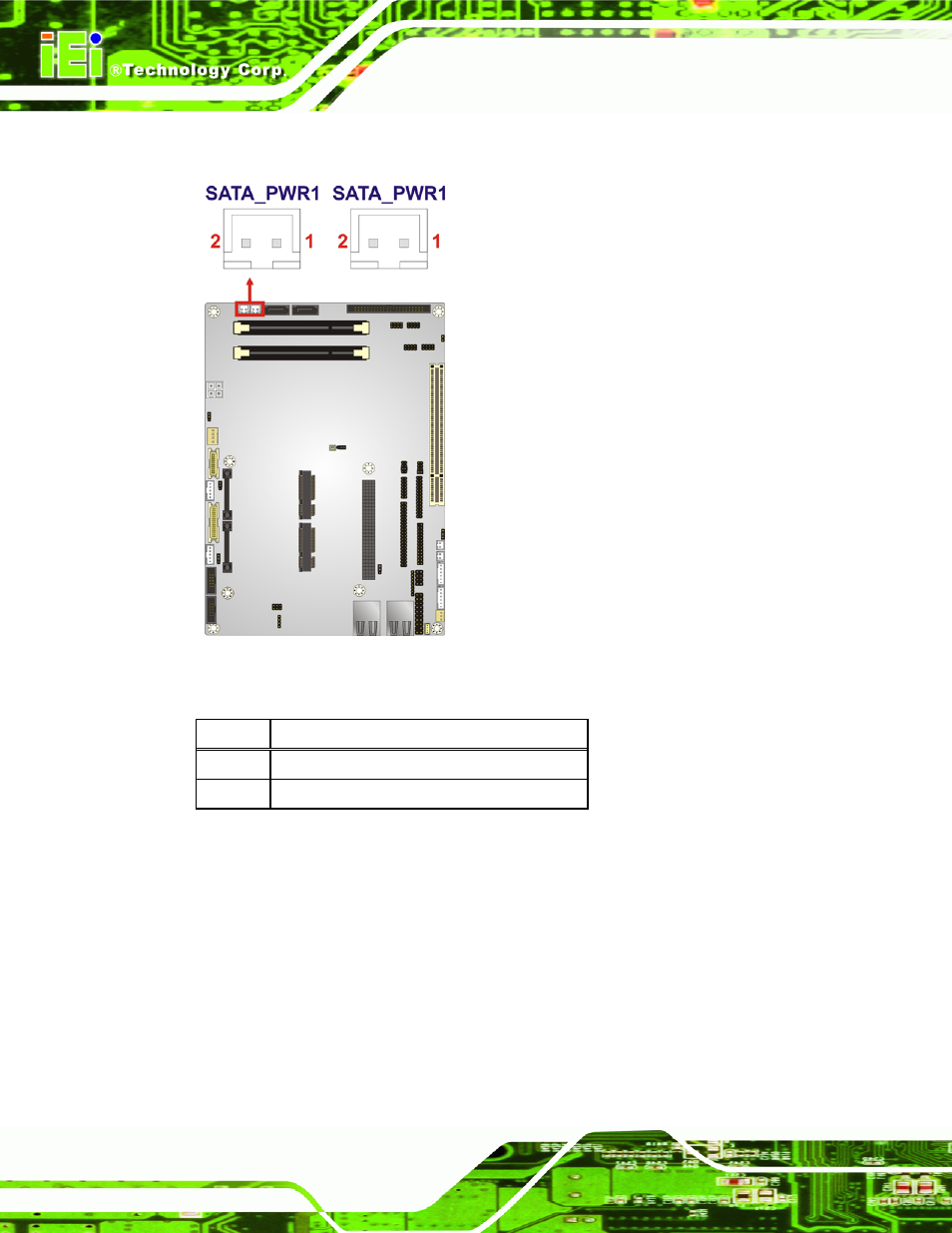

Figure 3-25: SATA Power Connector Locations
Pin Description
1 +5V
2 GND
Table 3-25: SATA Power Connector Pinouts
3.2.24 Serial Port Connector (RS-232)
CN Label: COM1
CN Type: 40-pin header (2x20)
CN Location: See
7
Figure 3-26
CN Pinouts: See
7
Table 3-26
