NOVA-PV-D5251/D4251 5.25" SBC

Page 29

3.2.7 Fan Connector (CPU)

CN Label:

CPU_FAN1

CN Type:

4-pin wafer (1x4)

CN Location:

See Figure 3-9

CN Pinouts:

See Table 3-8

The fan connector attaches to a CPU cooling fan.

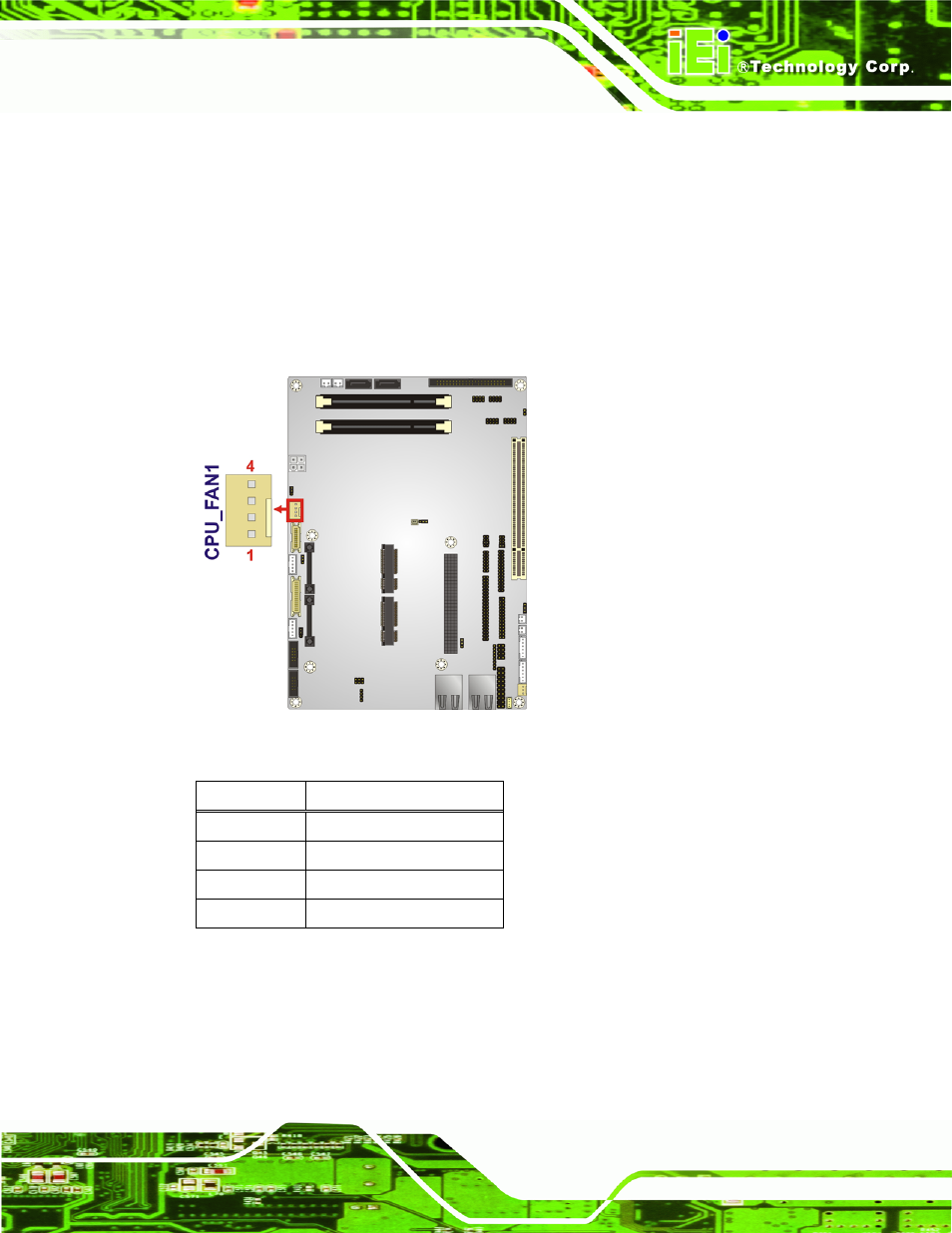

Figure 3-9: CPU Fan Connector Location

Pin Description

1 GROUND

2 +12V

3 CPUFANIN

4 CPUFANOUT

Table 3-8: CPU Fan Connector Pinouts
