NOVA-PV-D5251/D4251 5.25" SBC
Page 67

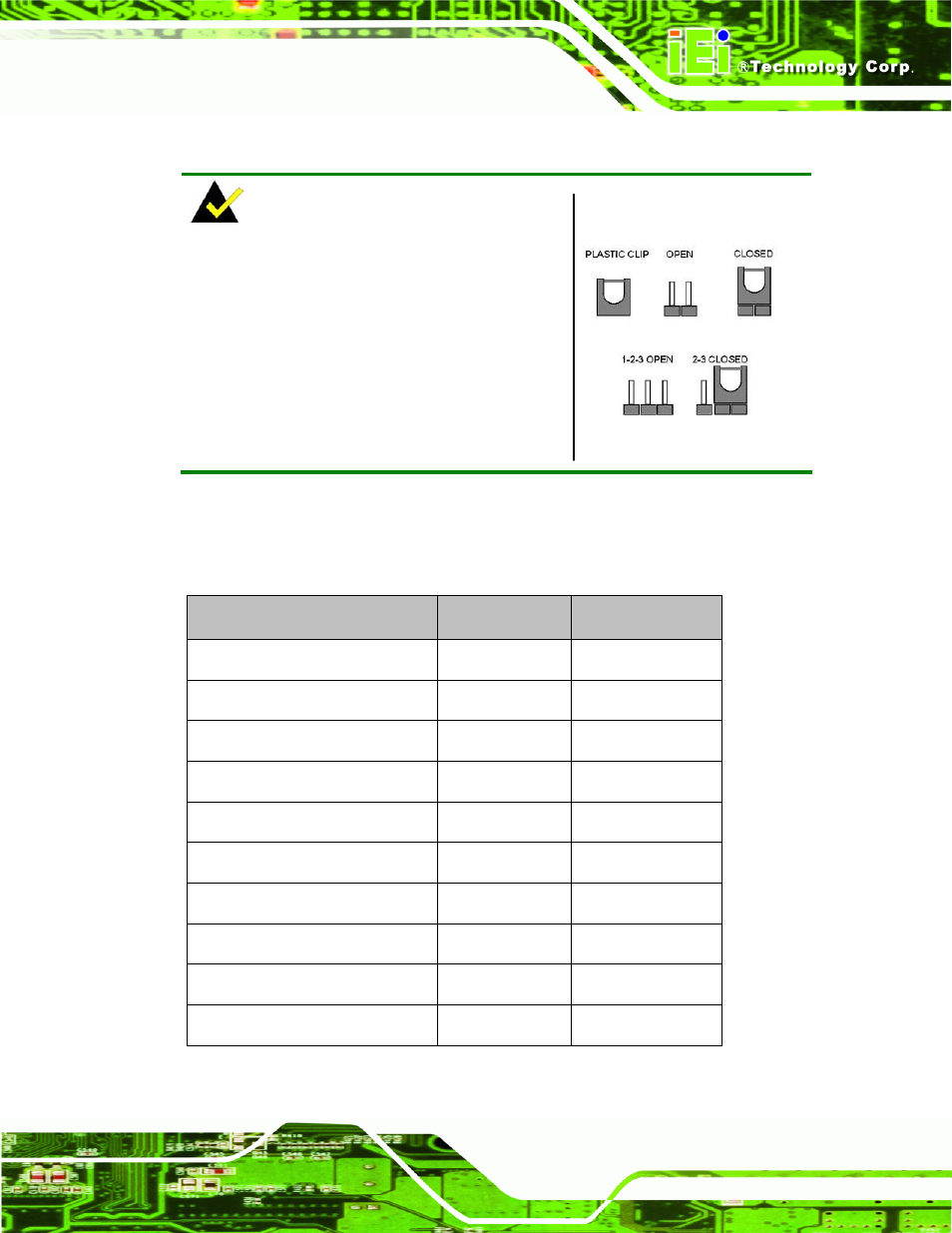

4.5 Jumper Settings
NOTE:
A jumper is a metal bridge used to close an
electrical circuit. It consists of two or three metal
pins and a small metal clip (often protected by a
plastic cover) that slides over the pins to connect
them. To CLOSE/SHORT a jumper means
connecting the pins of the jumper with the plastic
clip and to OPEN a jumper means removing the
plastic clip from a jumper.
Figure 4-3: Jumper Locations
Before the NOVA-PV-D5251/D4251 is installed in the system, the jumpers must be set in
accordance with the desired configuration. The jumpers on the NOVA-PV-D5251/D4251
are listed in
AT/ATX power mode setting
3-pin header
J_AUTOPWR1
Clear CMOS
3-pin header
J_CMOS1
COM6 RS-232/422/485 select
8-pin header
JP5
CompactFlash® setup
2-pin header
JCF1
CPU fan setting
3-pin header
JP7
LVDS2 LCD voltage select
3-pin header
J_VLVDS1
LVDS3 LCD voltage select
3-pin header
J_VLVDS2
LVDS2 panel resolution select
8-pin header
J_LCD_TYPE1
LVDS3 panel resolution select
6-pin header
JP10
PCI-104 and VIO voltage select
3-pin header
JP6
Table 4-1: Jumpers
