3 compactflash® slot, Figure 3-4: battery connector location, Table 3-4: battery connector pinouts – IEI Integration NOVA-PV-D4251_D5251 v1.01 User Manual

Page 37

NOVA-PV-D5251/D4251 5.25" SBC

Page 23

CN Pinouts:

See Table 3-4

This is connected to the system battery. The battery provides power to the system clock to

retain the time when power is turned off.

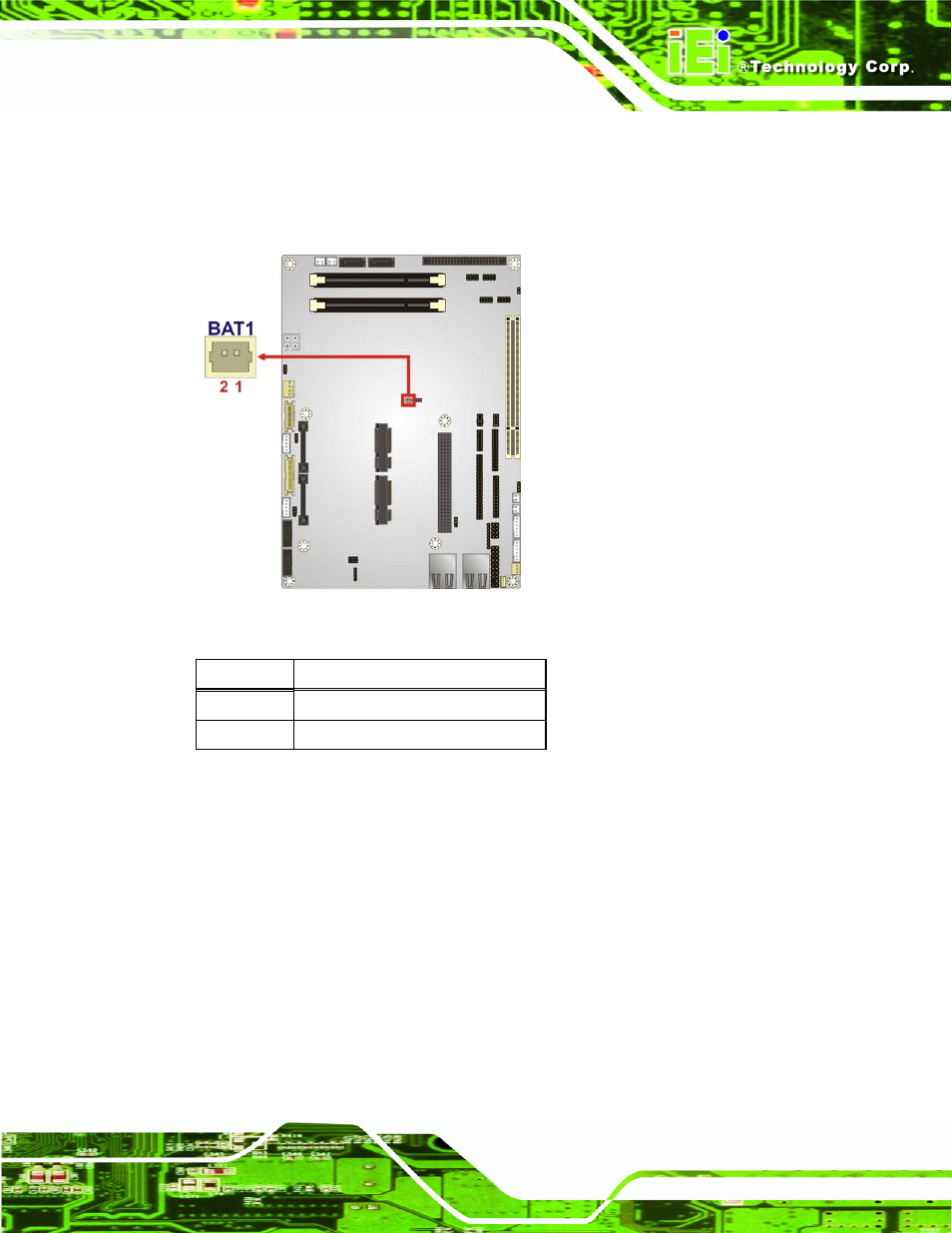

Figure 3-4: Battery Connector Location

Pin Description

1 Battery+

(+3.3V)

2 Ground

Table 3-4: Battery Connector Pinouts

3.2.3 CompactFlash® Slot

CN Label:

CF1

CN Type:

CompactFlash® card slot (solder side)

CN Location:

See Figure 3-5

CN Pinouts:

See Table 3-5
