7 data flow, Figure 1-6: data flow block diagram – IEI Integration NOVA-PV-D4251_D5251 v1.01 User Manual
Page 22
NOVA-PV-D5251/D4251 5.25" SBC
Page 8
1.7 Data Flow
Figure 1-6 shows the data flow between the CPU, the chipset and other components
installed on the motherboard and described in the following sections of this chapter.

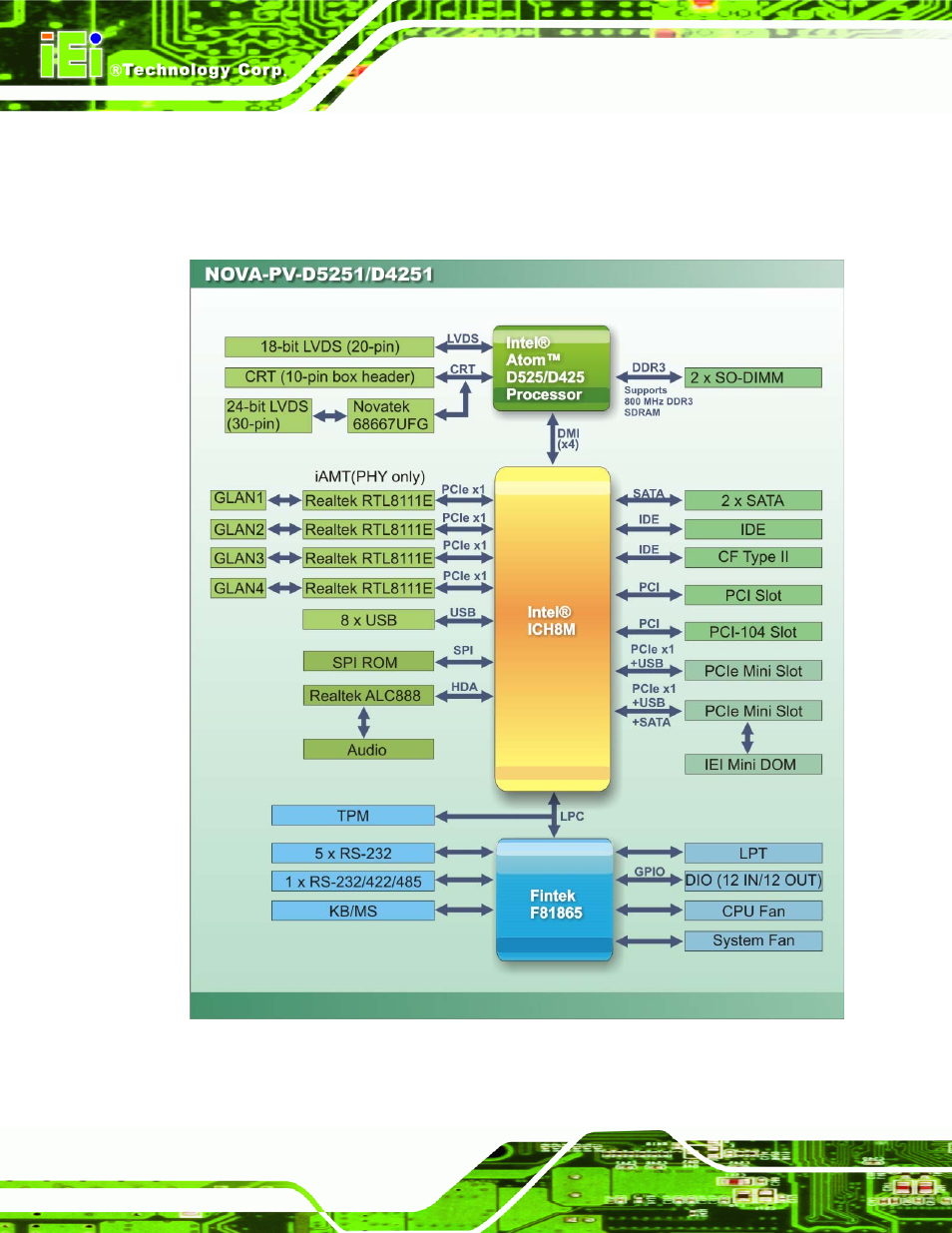

Figure 1-6: Data Flow Block Diagram
