NOVA-PV-D5251/D4251 5.25" SBC

Page 75

J_LCD_TYPE1 Description

Short 1-2, 3-4

1024 X 768 (18-bit)

Short 5-6

1280 X 1024 (18-bit)

Short 1-2, 7-8

1366 X 768 (18-bit)

Short 1-2, 5-6, 7-8

1280 X 800 (18-bit)

Short 3-4, 5-6, 7-8

1280 X 600 (18-bit)

Table 4-8: LVDS1 Panel Resolution Jumper Setting

JP10 Description

Short 1-2

800 X 600

Short 3-4

1024 X 768

Short 1-2, 3-4

1280 X 1024

Short 5-6

1366 X 768

Short 1-2, 5-6

1920 x 1080

Table 4-9: LVDS2 Panel Resolution Jumper Setting

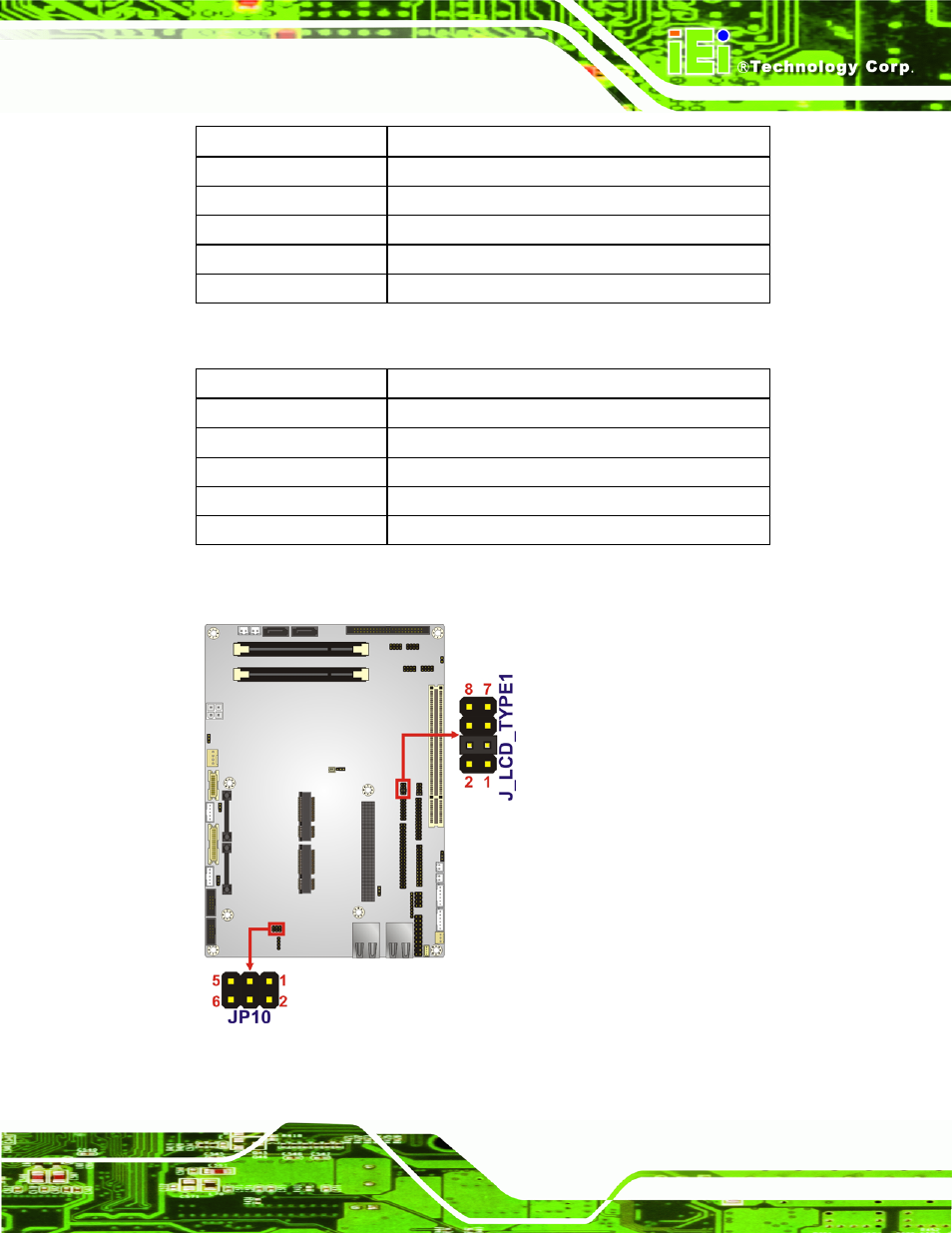

Figure 4-10:LVDS Panel Resolution Jumper Pinout Locations
