NOVA-PV-D5251/D4251 5.25" SBC

Page 79

Step 1:

Locate the connector. The location of the keyboard/mouse Y-cable connector

is shown in Chapter 3.

Step 2:

Align the connectors. Correctly align pin 1 on the cable connector with pin 1 on

the NOVA-PV-D5251/D4251 keyboard/mouse connector. See Figure 4-13.

Step 3:

Insert the cable connectors

Once the cable connector is properly aligned with

the keyboard/mouse connector on the NOVA-PV-D5251/D4251, connect the

cable connector to the on-board connectors. See Figure 4-13.

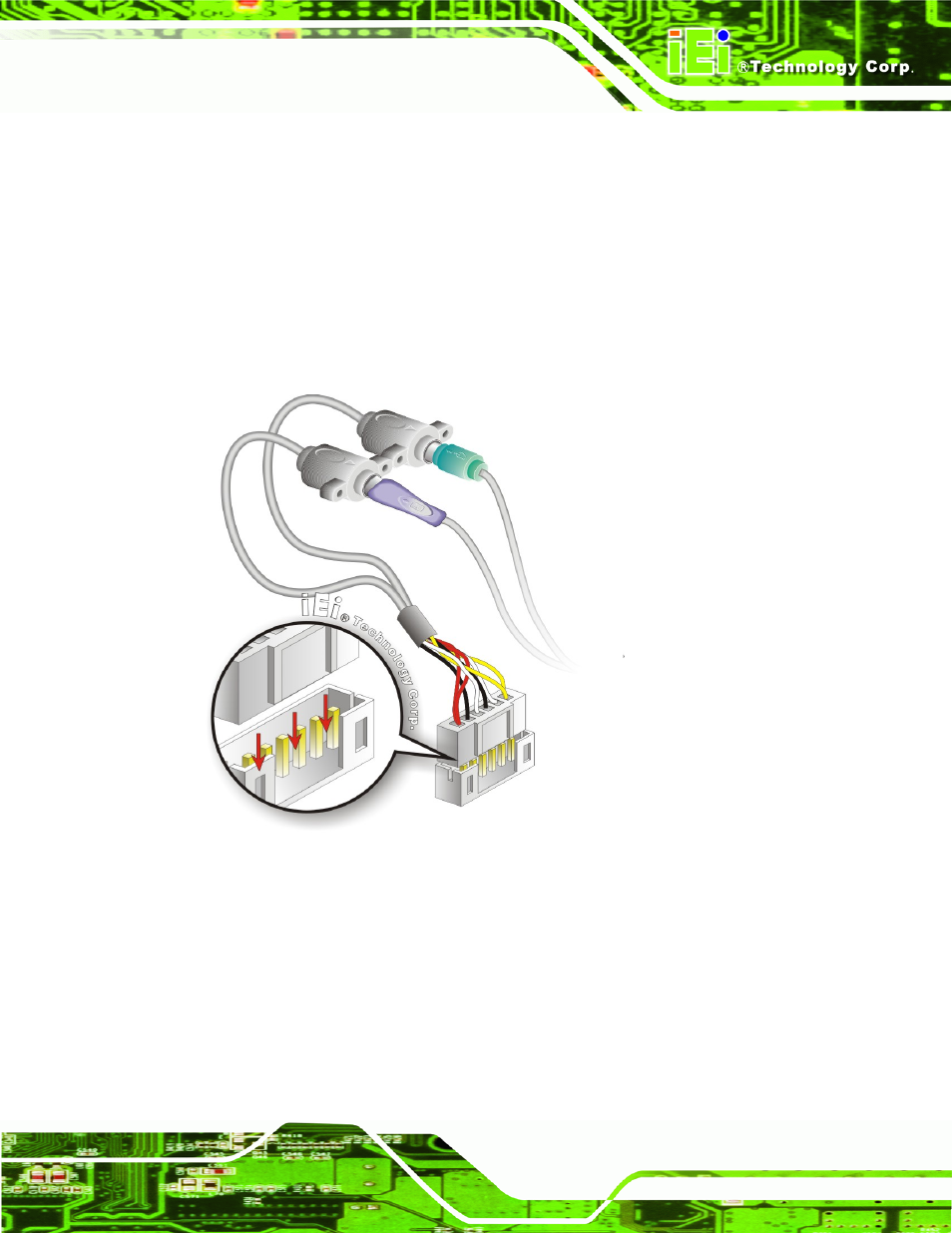

Figure 4-13: Keyboard/mouse Y-cable Connection

Step 4:

Attach PS/2 connectors to the chassis. The keyboard/mouse Y-cable

connector is connected to two PS/2 connectors. To secure the PS/2 connectors

to the chassis please refer to the installation instructions that came with the

chassis.

Step 5:

Connect the keyboard and mouse. Once the PS/2 connectors are connected

to the chassis, a keyboard and mouse can each be connected to one of the
