NOVA-PV-D5251/D4251 5.25" SBC
Page 35

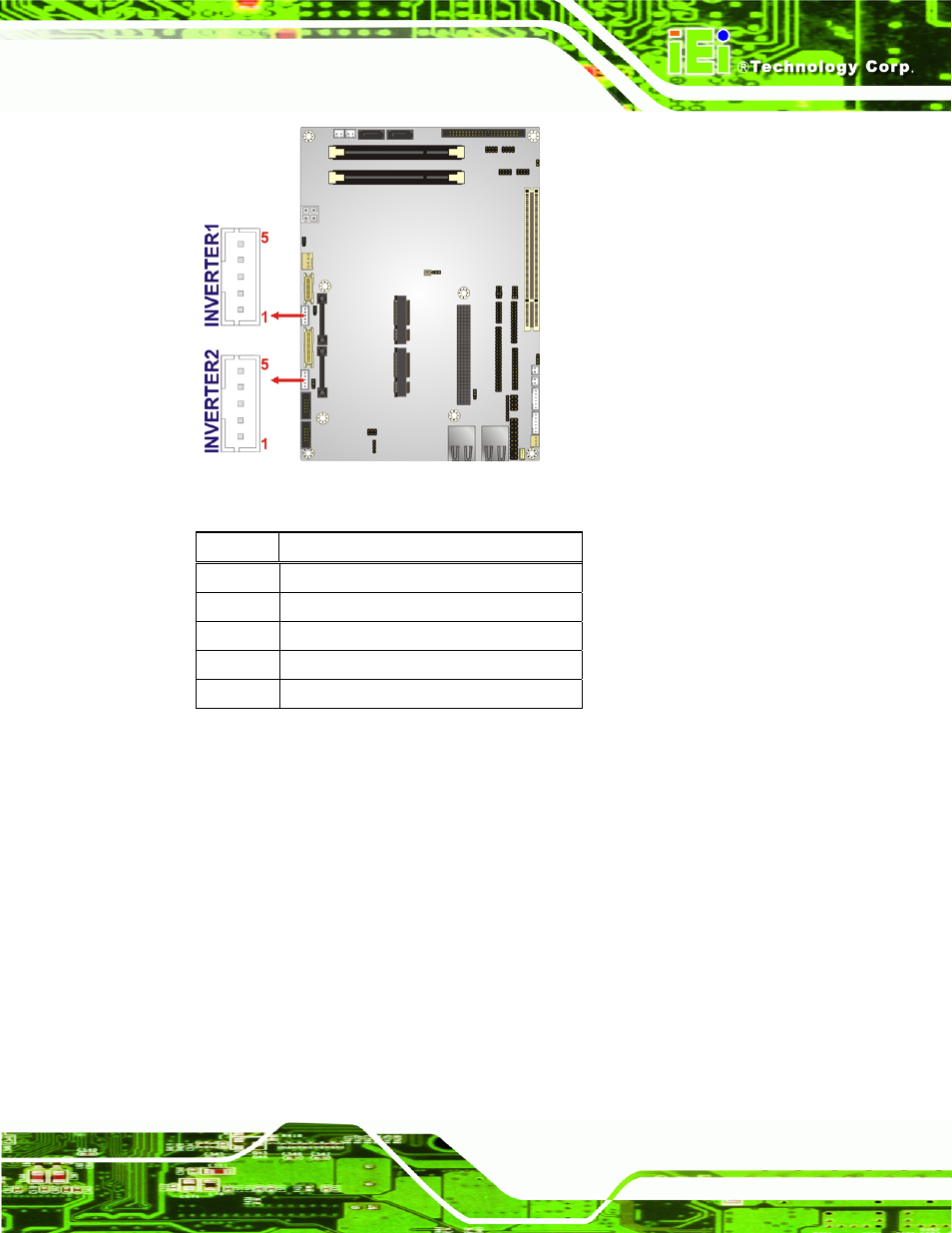

Figure 3-14: Backlight Inverter Connector Location
Pin Description
1 BRIGHTNESS
2 GROUND1
3 +12 V
4 GROUND2
5 BACKLIGHT ENABLE
Table 3-13: Backlight Inverter Connector Pinouts
3.2.13 LVDS LCD Connector (18/24-bit Dual-channel)
CN Label: LVDS2
CN Type: 30-pin crimp (2x15)
CN Location: See Figure 3-15
CN Pinouts: See Table 3-14
The LVDS connector is for an LCD panel connected to the board.
