NOVA-PV-D5251/D4251 5.25" SBC
Page 87
ƒ HDMI devices
ƒ RJ-45 Ethernet cable connector
To install these devices, connect the corresponding cable connector from the actual
device to the corresponding NOVA-PV-D5251/D4251 external peripheral interface
connector making sure the pins are properly aligned.
4.8.1 LAN Connection
There are four external RJ-45 LAN connectors. The RJ-45 connector enables connection
to an external network. To connect a LAN cable with an RJ-45 connector, please follow
the instructions below.
Step 1: Locate the RJ-45 connectors. The location of the LAN connector is shown in
Chapter 3.
Step 2: Align the connectors. Align the RJ-45 connector on the LAN cable with one of
the RJ-45 connectors on the NOVA-PV-D5251/D4251. See Figure 4-21.

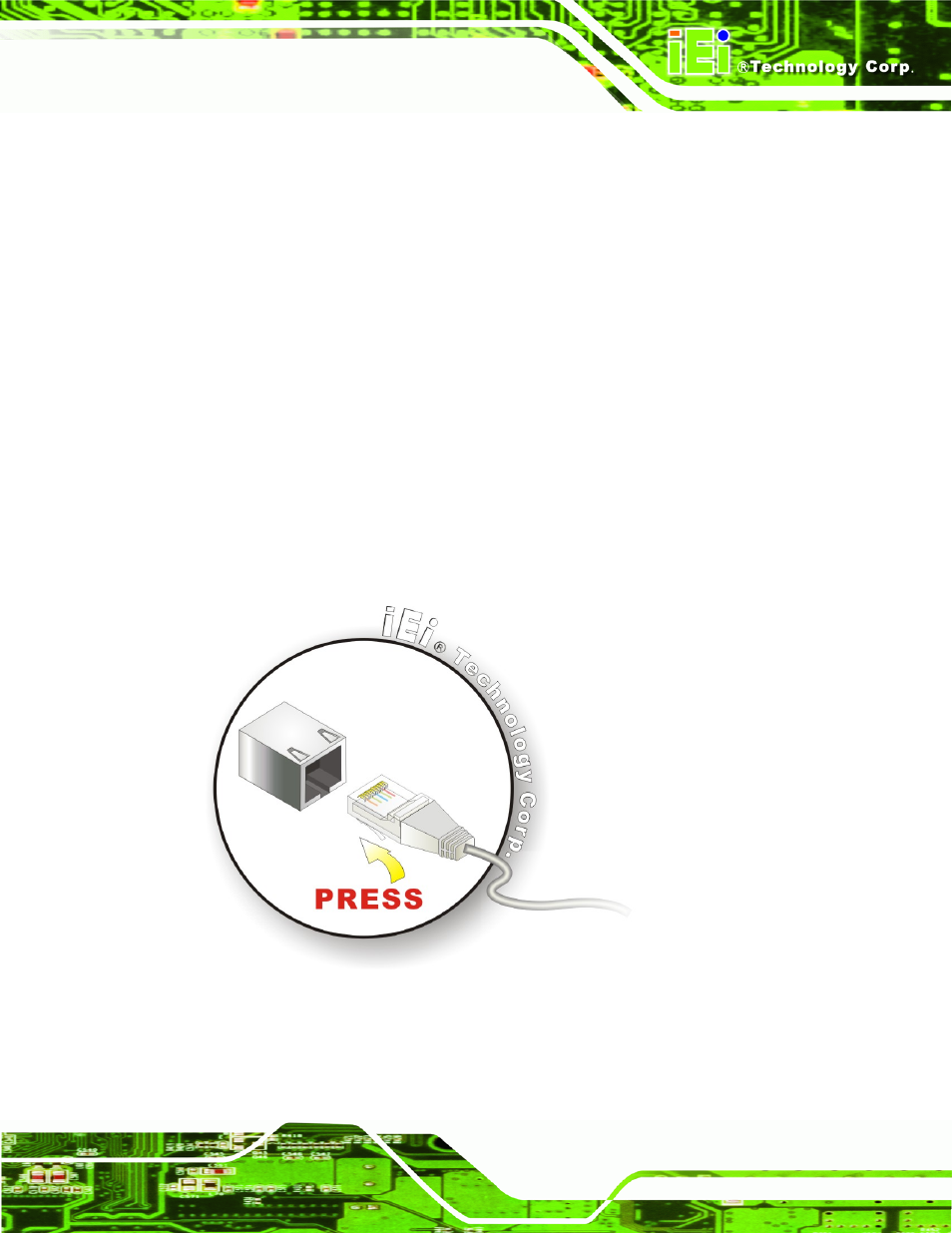

Figure 4-21: LAN Connection
Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN
cable RJ-45 connector into the on-board RJ-45 connector. Step 0:
