NANO-QM770 EPIC SBC

Page 59

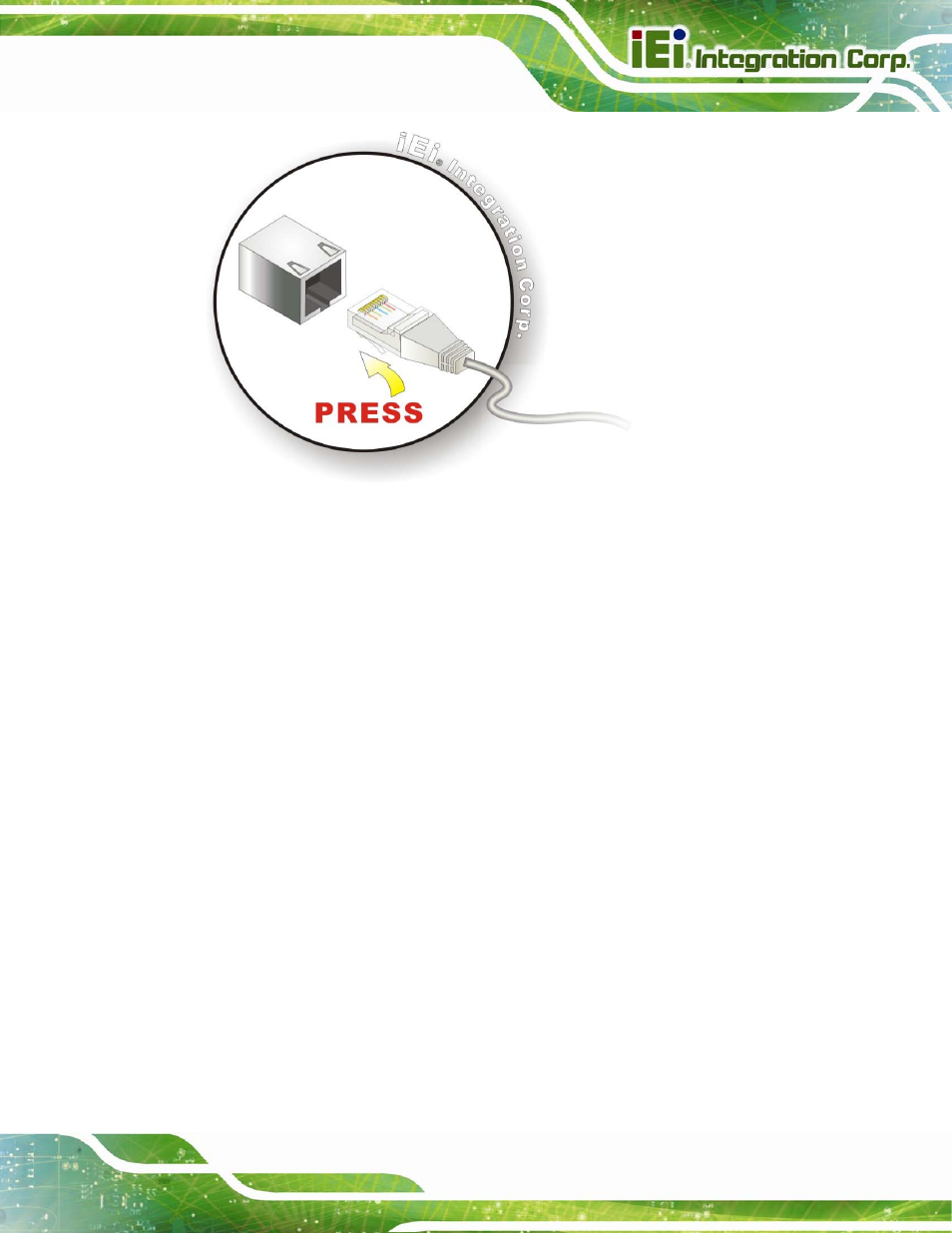

Figure 4-17: LAN Connection

Step 3:

Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN

cable RJ-45 connector into the on-board RJ-45 connector.

Step 0:

4.8.4 USB Connection

The external USB 3.0 connectors provide easier and quicker access to external USB

devices. Follow the steps below to connect USB devices to the NANO-QM770.

Step 1:

Locate the USB 3.0 connectors. The locations of the USB 3.0 connectors are

shown in Chapter 3.

Step 2:

Insert a USB 3.0 plug.

Insert the USB 3.0 plug of a device into the USB 3.0 on

the external peripheral interface. See Figure 4-18.

Step 0:
