NANO-QM770 EPIC SBC

Page 50

Pin Description

3-4

1024 X 768 (18bit)

1-2 & 3-4

1024 X 768 (24bit) Default

5-6

1280 X 800 (24bit)

1-2 & 5-6

1280 X 1024 (48bit)

3-4 & 5-6

1366 X 768 (24bit)

1-2 & 3-4 & 5-6

1440 X 900 (48bit)

7-8

1400 X 1050 (48bit)

1-2 & 7-8

1600 X 900 (48bit)

3-4 & 7-8

1600 X 1200 (48bit)

1-2 & 3-4 & 7-8

1680 X 1050 (48bit)

5-6 & 7-8

1920 X 1080 (48bit)

1-2 & 5-6 & 7-8

1920 X 1200 (48bit)

3-4 & 5-6 & 7-8

2048 X 1536 (48bit)

1-2 & 3-4 & 5-6 & 7-8

LVDS disabled

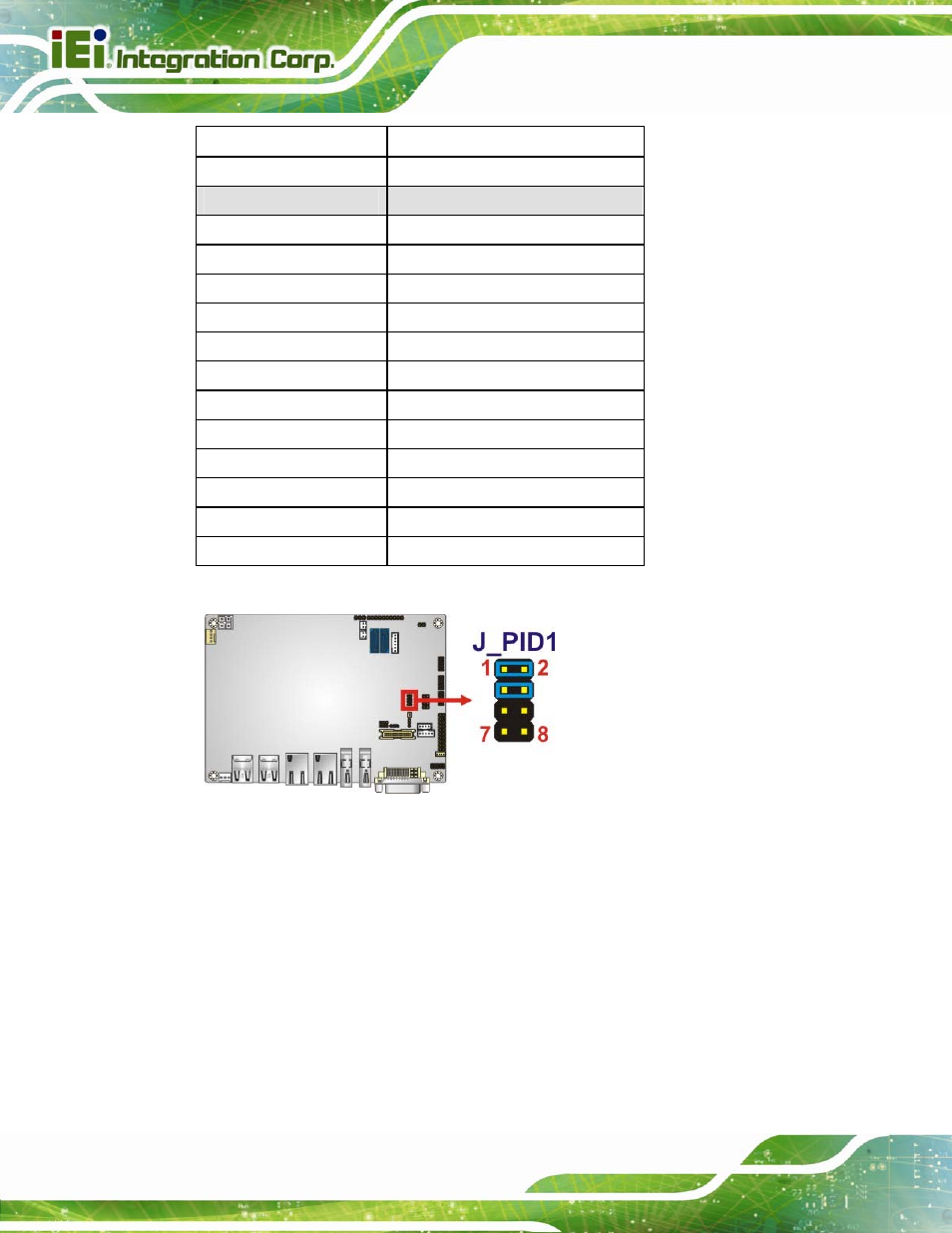

Table 4-7: LVDS Screen Resolution Jumper Settings

Figure 4-8: LVDS Resolution Selection Jumper Location

4.5.7 PCIe Mini/mSATA Mode Selection

Jumper Label:

MSATA_SW

Jumper Type:

2-pin header

Jumper Settings:

See Table 4-8

Jumper Location:

See Figure 4-9

Sets the PCIe Mini slot (M_PCIE1) as the PCIe Mini card slot or mSATA drive slot.
