NANO-QM770 EPIC SBC

Page 32

Pin Description

1 GND

2 SMB_DATA

3 SMB_CLK

4 +V5S

Table 3-19: SMBus Connector Pinouts

3.2.17 SO-DIMM Connector

CN Label:

DIMM1

CN Type:

204-pin DDR3 SO-DIMM connector

CN Location:

See Figure 3-19

The SO-DIMM connector is for installing memory on the system.

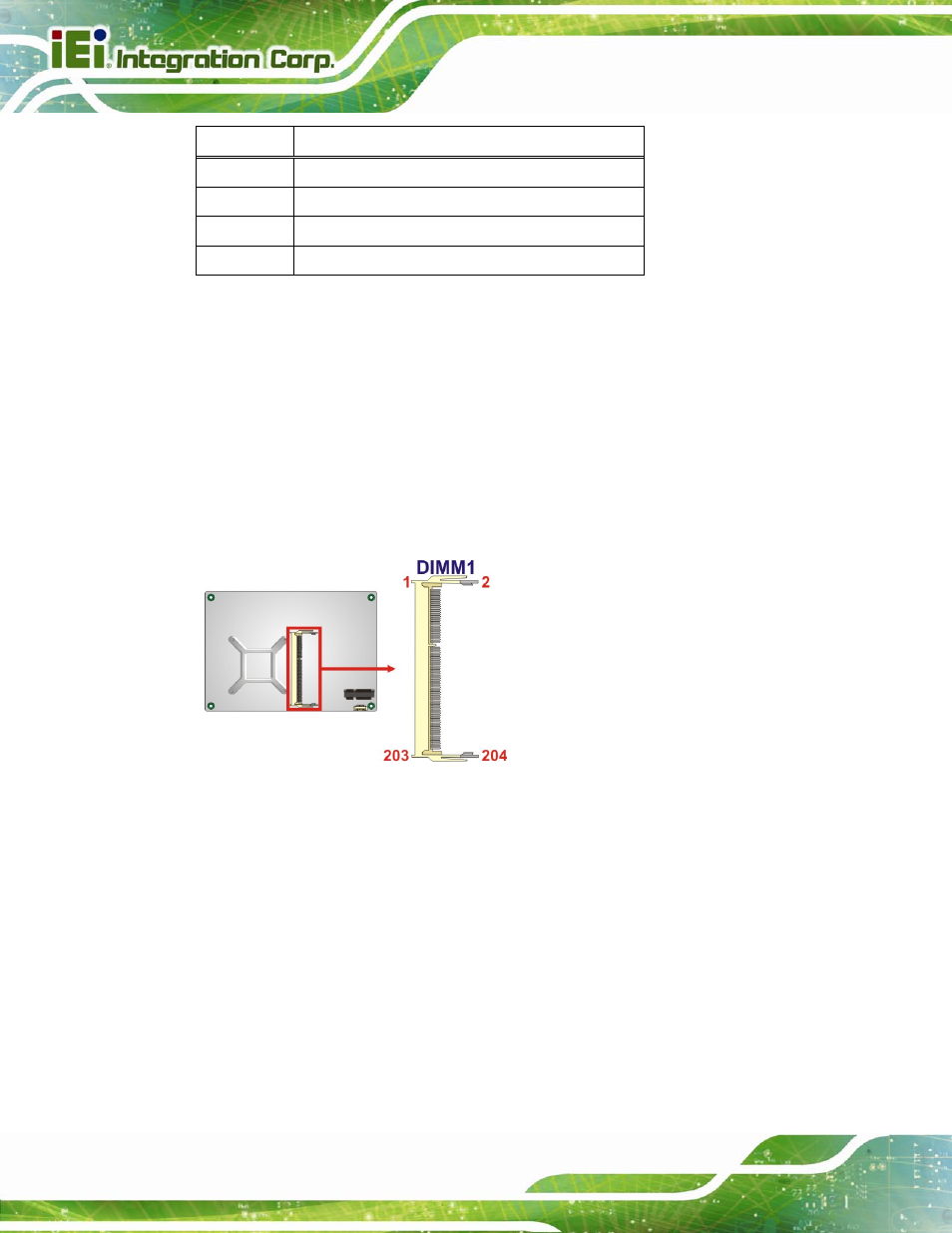

Figure 3-19: SO-DIMM Connector Location

3.2.18 SPI Flash Connector

CN Label:

JSPI1

CN Type:

6-pin header

CN Location:

See Figure 3-20

CN Pinouts:

See Table 3-20

The 6-pin SPI Flash connector is used to flash the BIOS.
