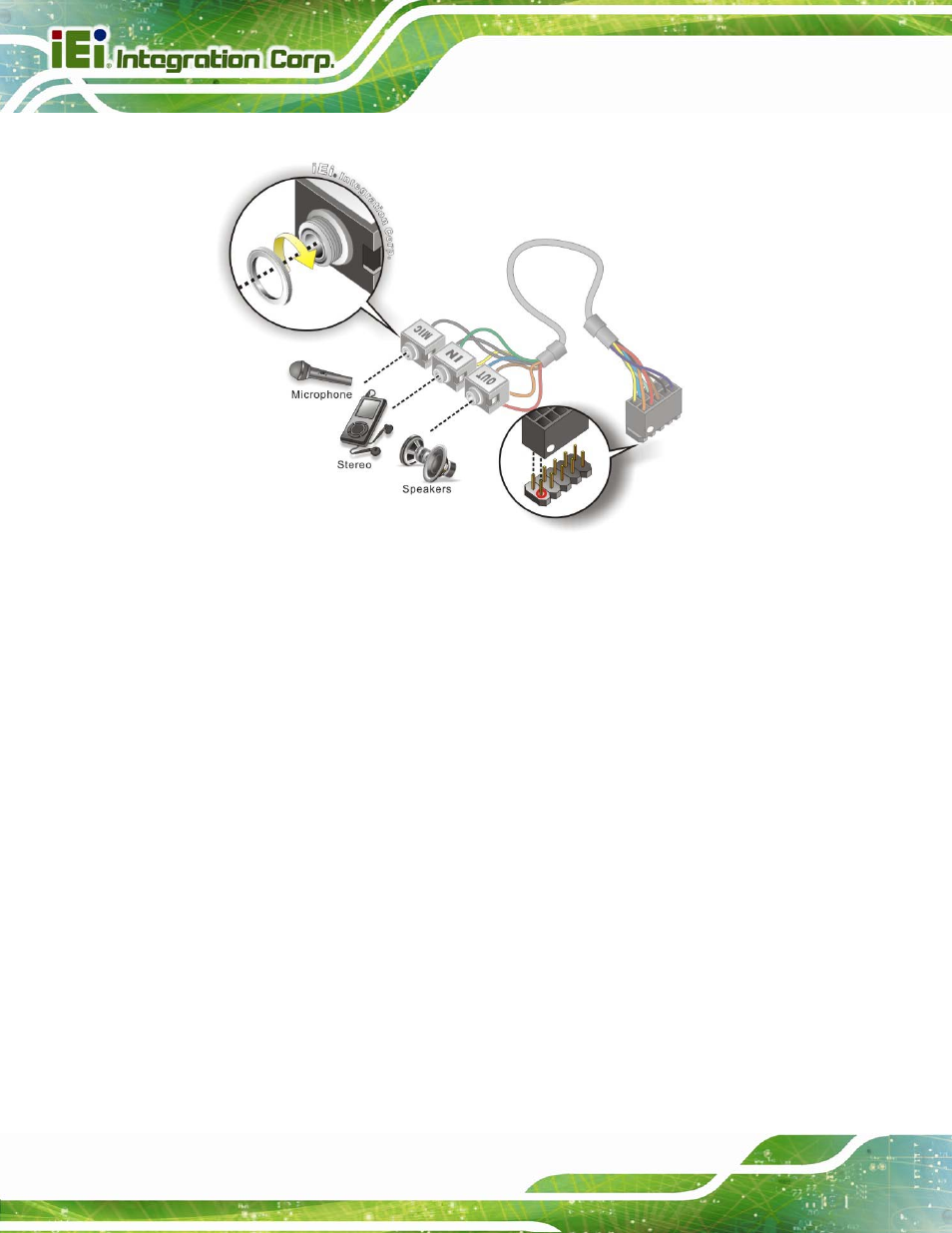

Figure 4-12: Audio Kit Cable Connection

Step 3:

Connect the audio devices. Connect speakers to the line-out audio jack.

Connect the output of an audio device to the line-in audio jack. Connect a

microphone to the mic-in audio jack.

Step 0:

4.7.3 SATA Drive Connection

The NANO-QM770 is shipped with two SATA drive cable. To connect the SATA drive to

the connector, please follow the steps below.

Step 1:

Locate the SATA connector and the SATA power connector. The locations of

the connectors are shown in Chapter 3.

Step 2:

Insert the cable connector. Insert the cable connector into the on-board SATA

drive connector and the SATA power connector. See Figure 4-13.
