NANO-QM770 EPIC SBC

Page 30

CN Location:

See Figure 3-16

CN Pinouts:

See Table 3-17

The SATA connectors connect to SATA hard drives or optical drives with data transfer

speeds as high as 6Gb/s.

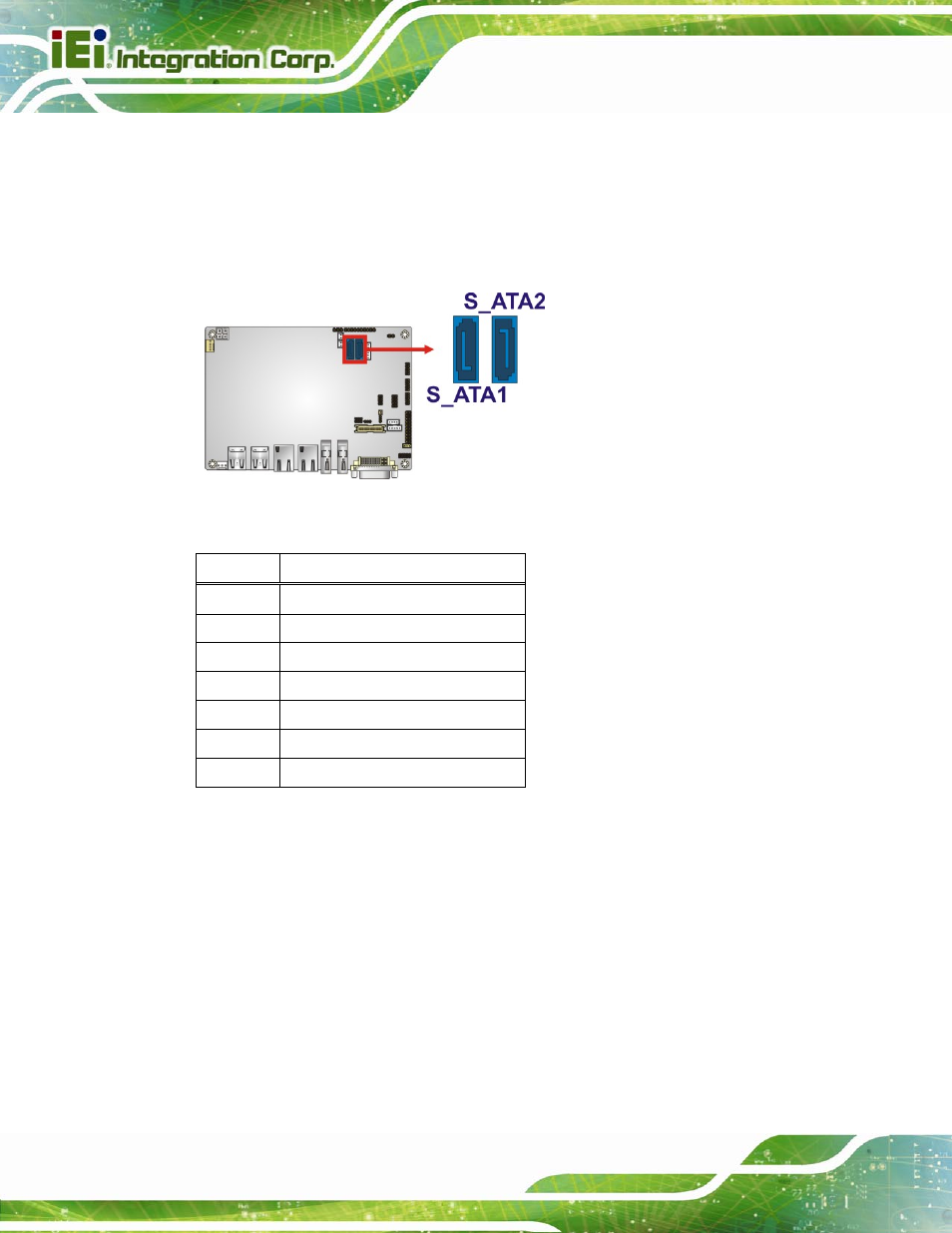

Figure 3-16: SATA Drive Connector Locations

Pin Description

1 GND

2 TX+

3 TX-

4 GND

5 RX-

6 RX+

7 GND

Table 3-17: SATA Drive Connector Pinouts

3.2.15 SATA Power Connectors

CN Label:

CN1, CN2

CN Type:

2-pin wafer

CN Location:

See Figure 3-17

CN Pinouts:

See Table 3-18

Use the SATA Power Connector to connect to SATA device power connections.
