NANO-QM770 EPIC SBC

Page 22

Pin Description

1

Rotation Signal

2

+12V

3

GND

Table 3-7: System Fan Connector Pinouts

3.2.6 Front Panel Connector

CN Label:

F_PANEL1

CN Type:

10-pin header

CN Location:

See Figure 3-8

CN Pinouts:

See Table 3-8

The front panel connector connects to the indicator LEDs and buttons on the computer's

front panel.

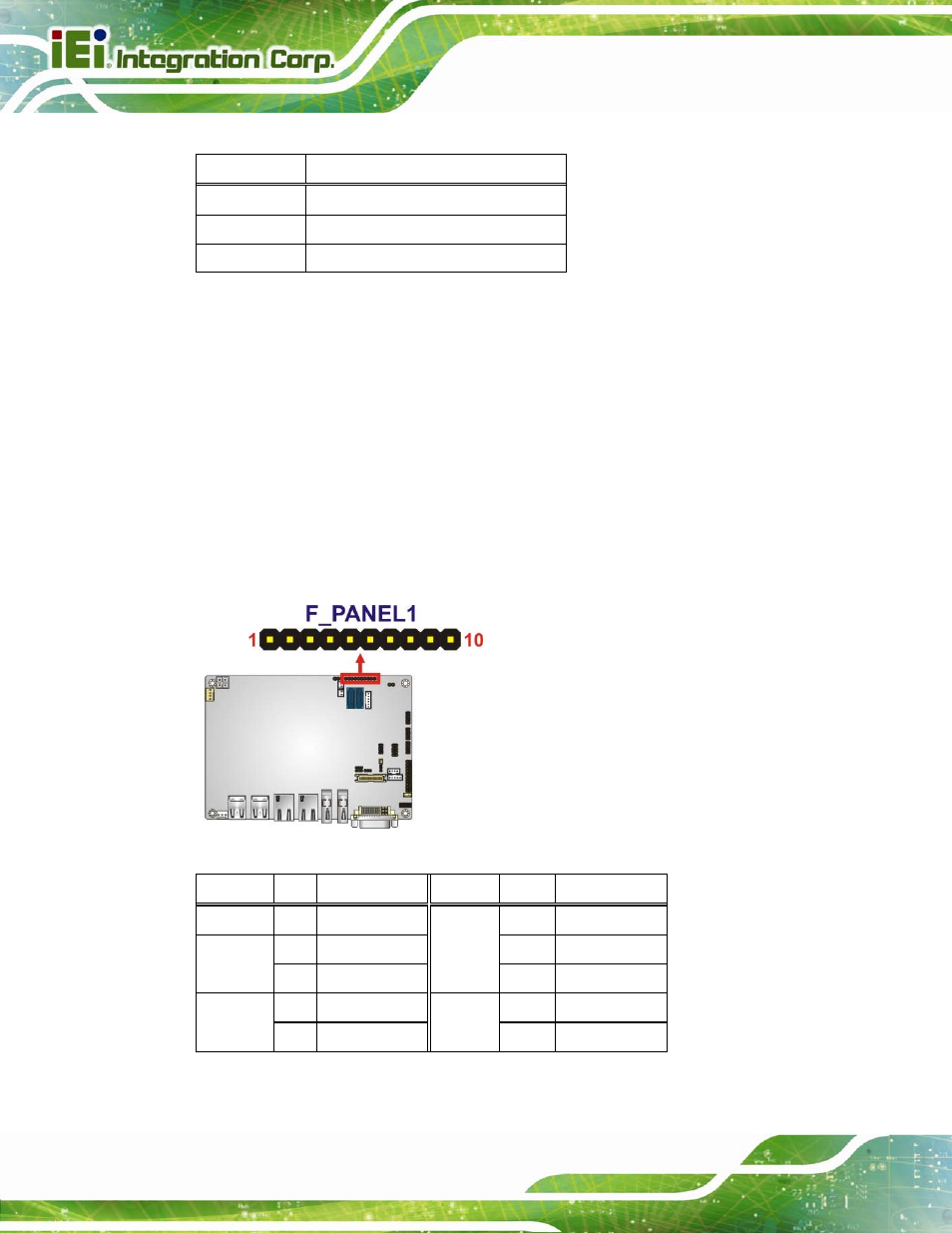

Figure 3-8: Front Panel Connector Location

Pin

Description

Pin

Description

1

NC

6

LED_PWR

2 GROUND

7 LED_PWR

Power

Button

3 PWR_BTN-

Power

LED

8 GROUND

4 IDE_LED_PWR

9 EXTRST-

HDD

LED

5 SATA_LED#

Reset

10 Ground

Table 3-8: Front Panel Connector Pinouts
