NANO-QM770 EPIC SBC
Page 51
Pin Description
Closed PCIe Mini (Default)
Open mSATA
Table 4-8: PCIe Mini/mSATA Mode Selection Jumper Settings

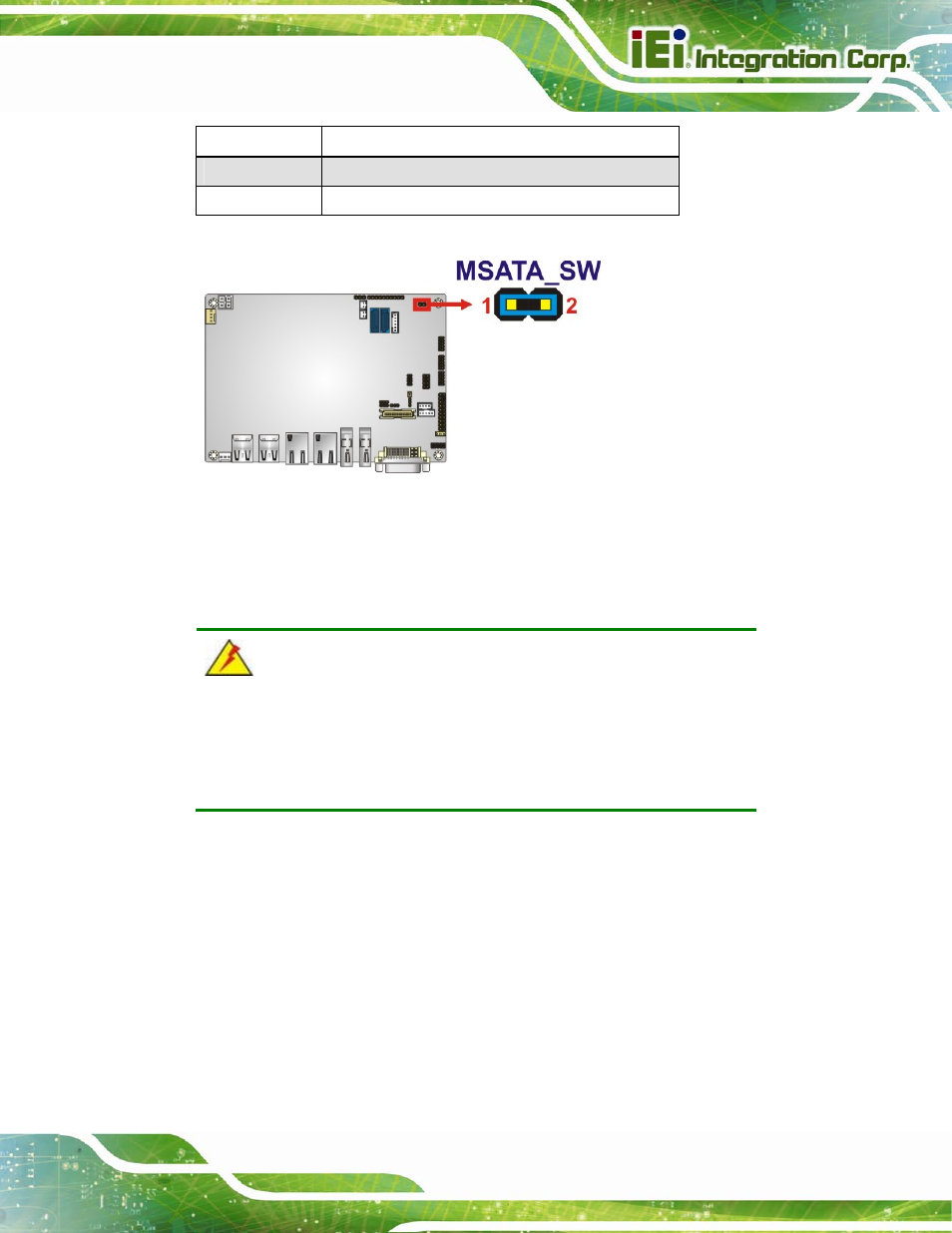

Figure 4-9: PCIe Mini/mSATA Mode Selection Jumper Location
4.6 Chassis Installation
4.6.1 Airflow
WARNING:
Airflow is critical for keeping components within recommended
operating termperatures. The chassis should have fans and vents as
necessary to keep things cool.
The NANO-QM770 must be installed in a chassis with ventilation holes on the sides
allowing airflow to travel through the heat sink surface. In a system with an individual
power supply unit, the cooling fan of a power supply can also help generate airflow
through the board surface.
4.6.2 Motherboard Installation
To install the NANO-QM770 motherboard into the chassis please refer to the reference
material that came with the chassis.
