NANO-QM770 EPIC SBC

Page 28

3.2.12 RS-232 Serial Port Connectors (COM1, COM2)

CN Label:

COM1, COM2

CN Type:

10-pin header

CN Location:

See Figure 3-14

CN Pinouts:

See Table 3-14

The 10-pin serial port connectors provide two RS-232 serial communications channels.

The COM serial port connectors can be connected to external RS-232 serial port devices.

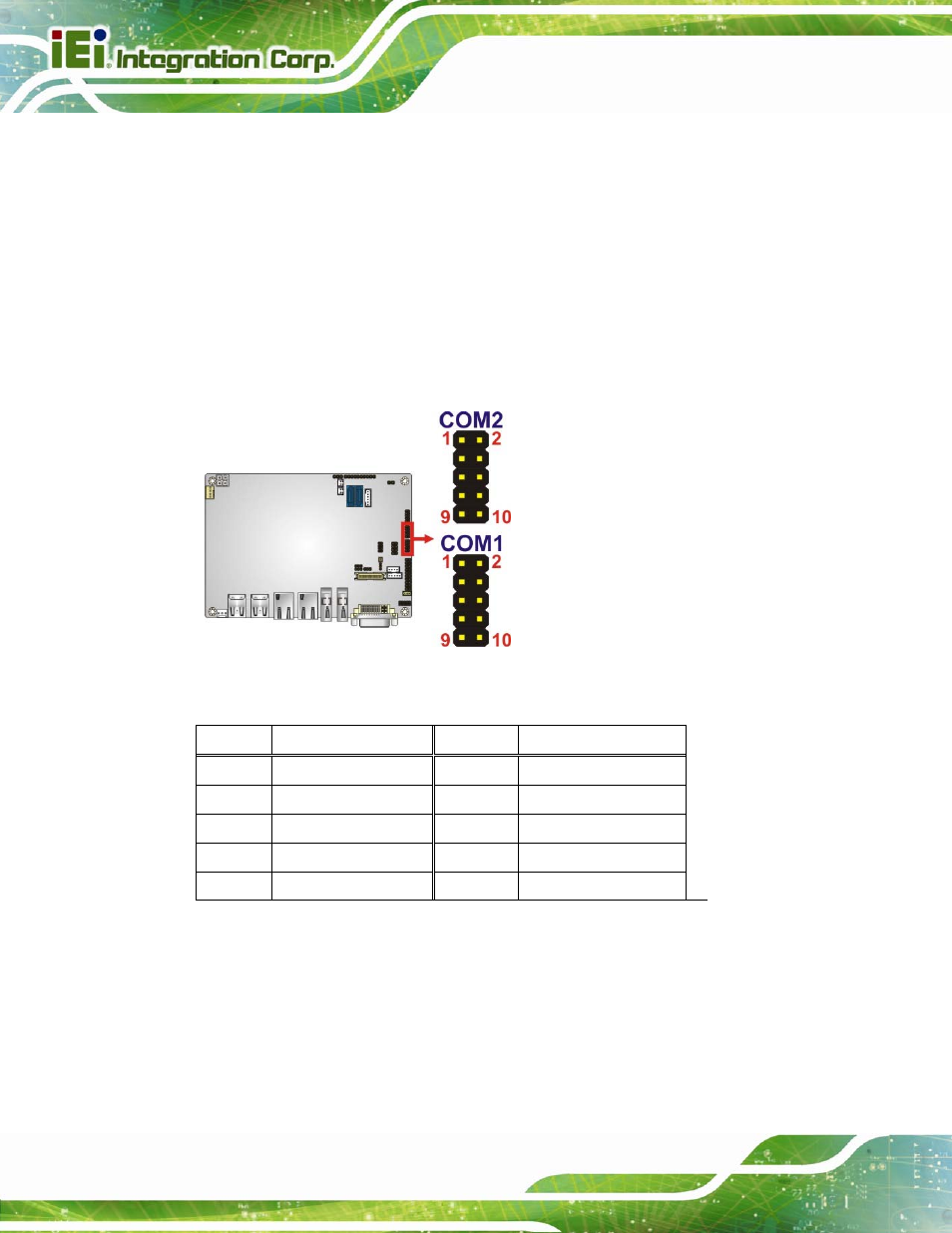

Figure 3-14: RS-232 Serial Port Connector Locations

Pin Description

1 -NDCD2

6 -NCTS2

2 -NDSR2

7 -NDTR2

3 NSIN2

8 -XRI2

4 -NRTS2

9 GND

5 NSOUT2

10 GND

Table 3-14: Serial Port Connector Pinouts

3.2.13 RS-422/485 Serial Port Connector (COM3)

CN Label:

COM3

CN Type:

4-pin wafer

CN Location:

See Figure 3-15
