NANO-QM770 EPIC SBC

Page 3

ƒ EPIC form factor

ƒ RoHS

compliant

ƒ Intel® AMT 8.0 support

ƒ Dual

GbE

ƒ Supports HDMI, LVDS and DVI-I interface for triple independent display

(HDMI V1.3a compliant)

ƒ Six USB ports (two USB 2.0, four USB 3.0)

ƒ Three serial ports

ƒ PCIe Mini card slot

1.4 Connectors

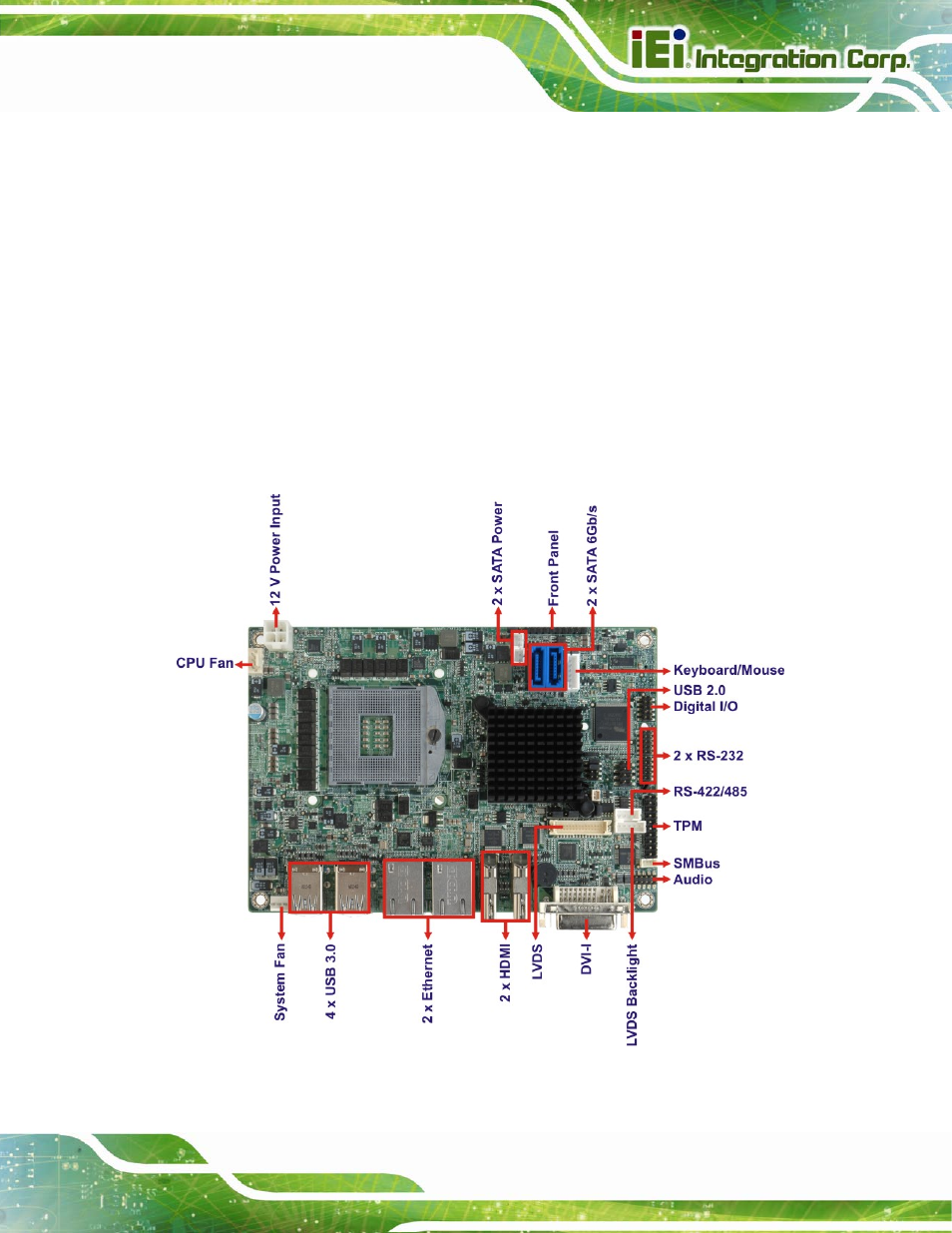

The connectors on the NANO-QM770 are shown in the figure below.

Figure 1-2: Connectors (Front)
