NANO-QM770 EPIC SBC
Page 56

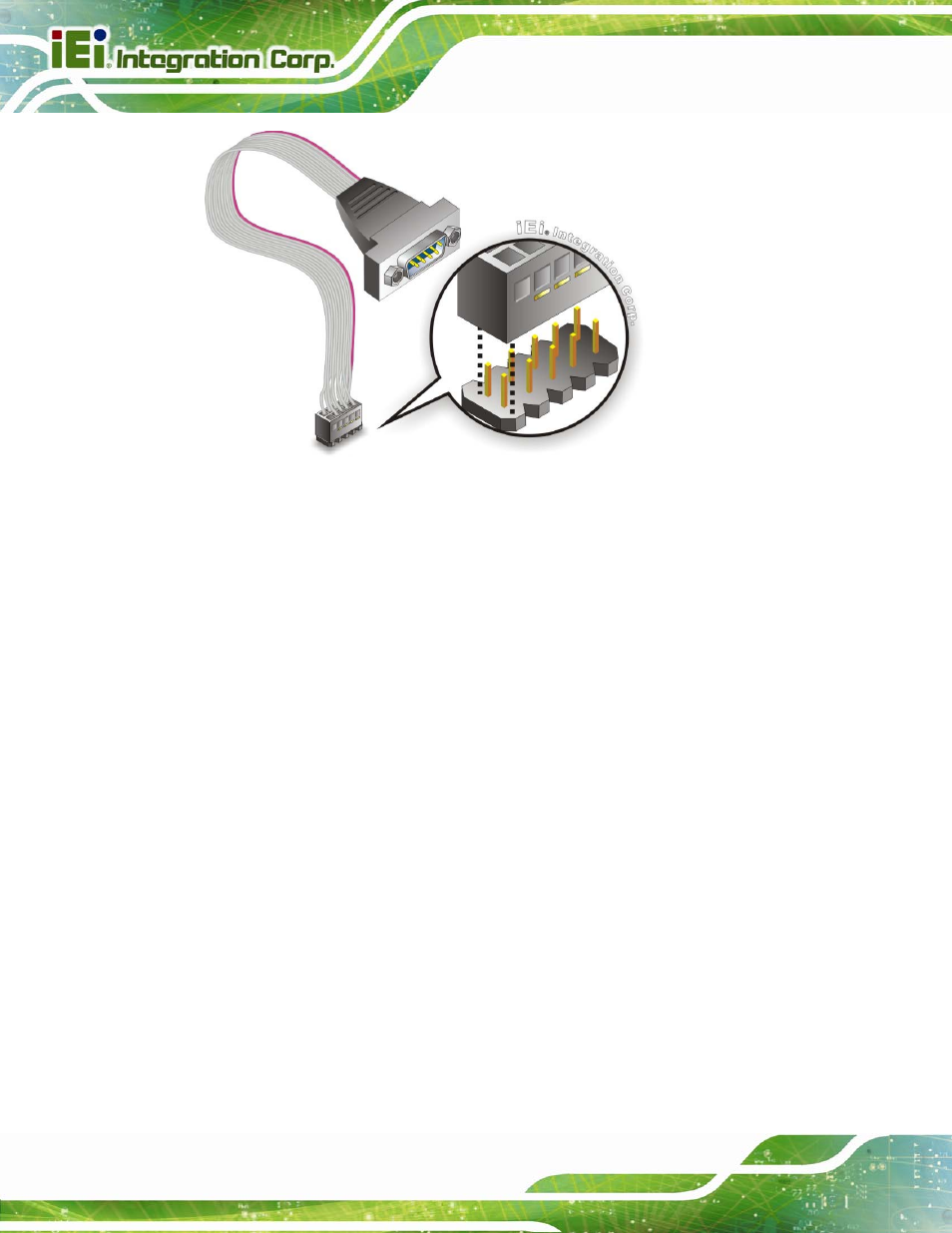

Figure 4-14: Single RS-232 Cable Installation
Step 3: Secure the bracket. The single RS-232 connector has two retention screws
that must be secured to a chassis or bracket.
Step 4: Connect the serial device. Once the single RS-232 connector is connected to
a chassis or bracket, a serial communications device can be connected to the
system. Step 0:
4.8 External Peripheral Interface Connection
Devices can be connected to the external connectors. To install external devices, follow
the directions in the subsections below.
4.8.1 DVI Display Device Connection
The NANO-QM770 has a single female DVI-I connector on the external peripheral
interface panel. The DVI-I connector is connected to a digital display device. To connect a
digital display device to the NANO-QM770, please follow the instructions below.
Step 1: Locate the DVI-I connector. The location of the DVI-I connector is shown in
another chapter.
