NANO-QM770 EPIC SBC

Page 29

CN Pinouts:

See Table 3-15

This connector provides RS-422 or RS-485 communications.

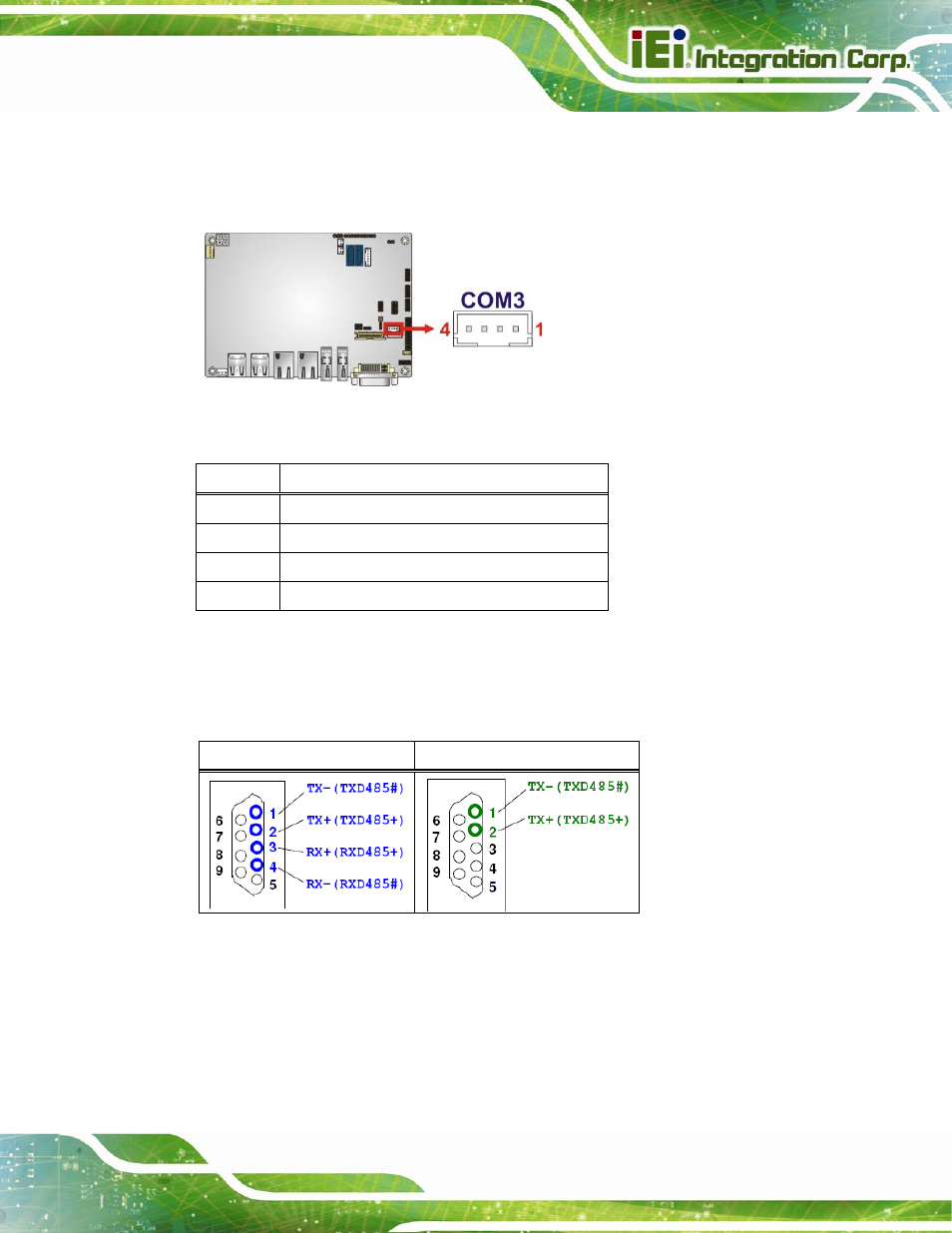

Figure 3-15: RS-422/485 Serial Port Connector Location

Pin Description

1 RXD485#

2 RXD485+

3 TXD485+

4 TXD485#

Table 3-15: RS-422/485 Serial Port Connector Pinouts

Use the optional RS-422/485 cable to connect to a serial device. The pinouts of the DB-9

connector are listed below.

RS-422 Pinouts

RS-485 Pinouts

Table 3-16: DB-9 RS-422/485 Pinouts

3.2.14 SATA Drive Connectors

CN Label:

S_ATA1, S_ATA2

CN Type:

7-pin SATA drive connectors
