NANO-QM770 EPIC SBC
Page 53
Step 3: Connect Power Cable to Power Supply. Connect one of the 4-pin (1x4) Molex
type power cable connectors to an AT power supply. See Figure 4-11.

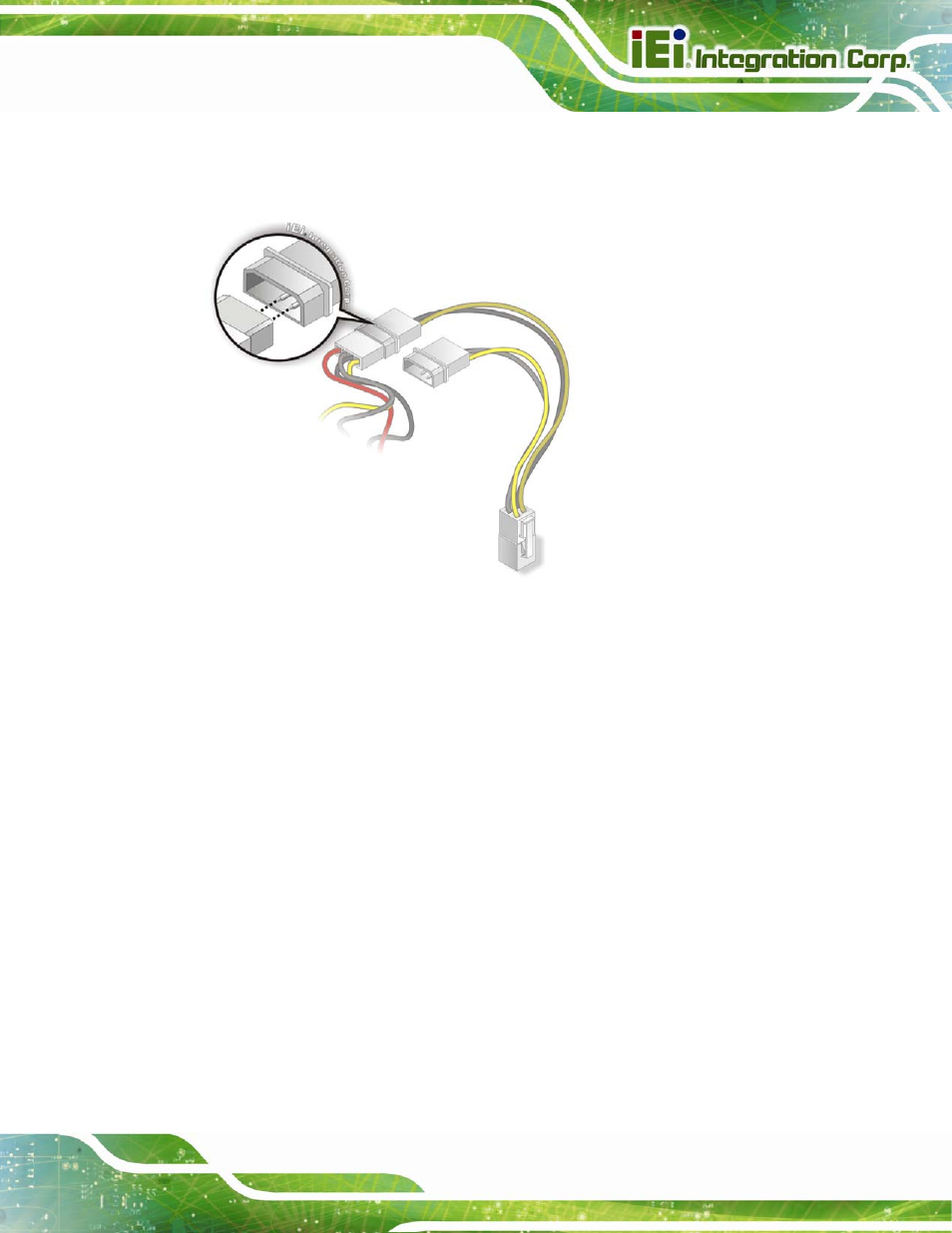

Figure 4-11: Connect Power Cable to Power Supply
4.7.2 Audio Kit Installation
The Audio Kit that came with the NANO-QM770 connects to the audio connector on the
NANO-QM770. The audio kit consists of three audio jacks. Mic-in connects to a
microphone. Line-in provides a stereo line-level input to connect to the output of an audio
device. Line-out, a stereo line-level output, connects to two amplified speakers. To install
the audio kit, please refer to the steps below:
Step 1: Locate the audio connector. The location of the 10-pin audio connector is
shown in Chapter 3.
Step 2: Align pin 1. Align pin 1 on the on-board connector with pin 1 on the audio kit
connector. Pin 1 on the audio kit connector is indicated with a white dot. See
Figure 4-12.
