NANO-QM770 EPIC SBC

Page 43

4.3 SO-DIMM Installation

To install an SO-DIMM, please follow the steps below and refer to Figure 4-1.

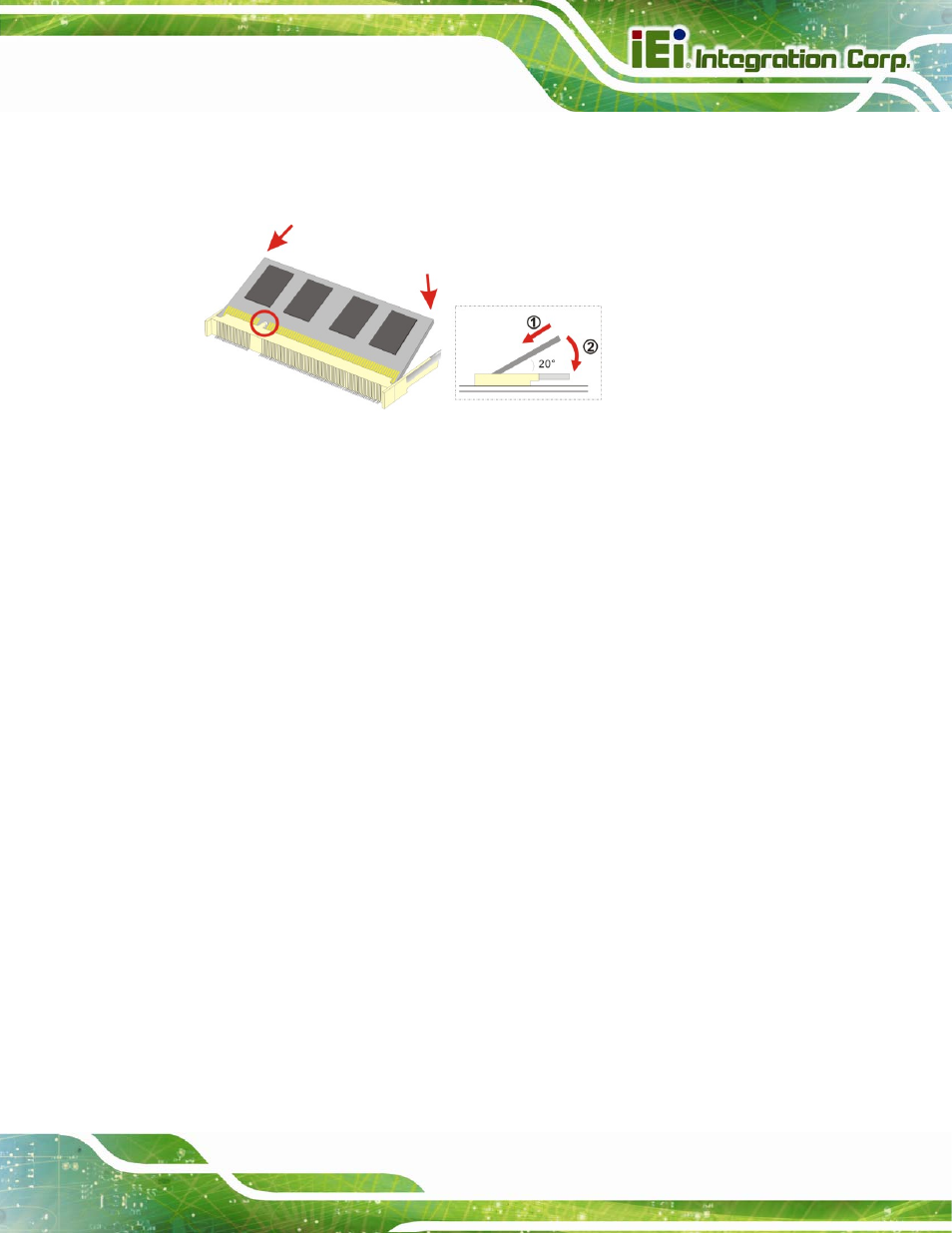

Figure 4-1: SO-DIMM Installation

Step 1:

Locate the SO-DIMM socket. Place the board on an anti-static mat.

Step 2:

Align the SO-DIMM with the socket. Align the notch on the memory with the

notch on the memory socket.

Step 3:

Insert the SO-DIMM. Push the memory in at a 20º angle. (See Figure 4-1)

Step 4:

Seat the SO-DIMM. Gently push downwards and the arms clip into place. (See

Figure 4-1)

4.4 PCIe Mini Card Installation

A PCIe Mini card slot is located on the solder side of the NANO-QM770. To install the

PCIe Mini card, please refer to the diagram and instructions below.
