CN Pinouts:

See Table 3-24

The LAN connector connects to a local network.

PIN

DESCRIPTION

PIN

DESCRIPTION

1

MDIA3-

5

MDIA1+

2

MDIA3+

6

MDIA2+-

3

MDIA2-

7

MDIA0-

4

MDIA1-

8

MDIA0+

Table 3-24: LAN Pinouts

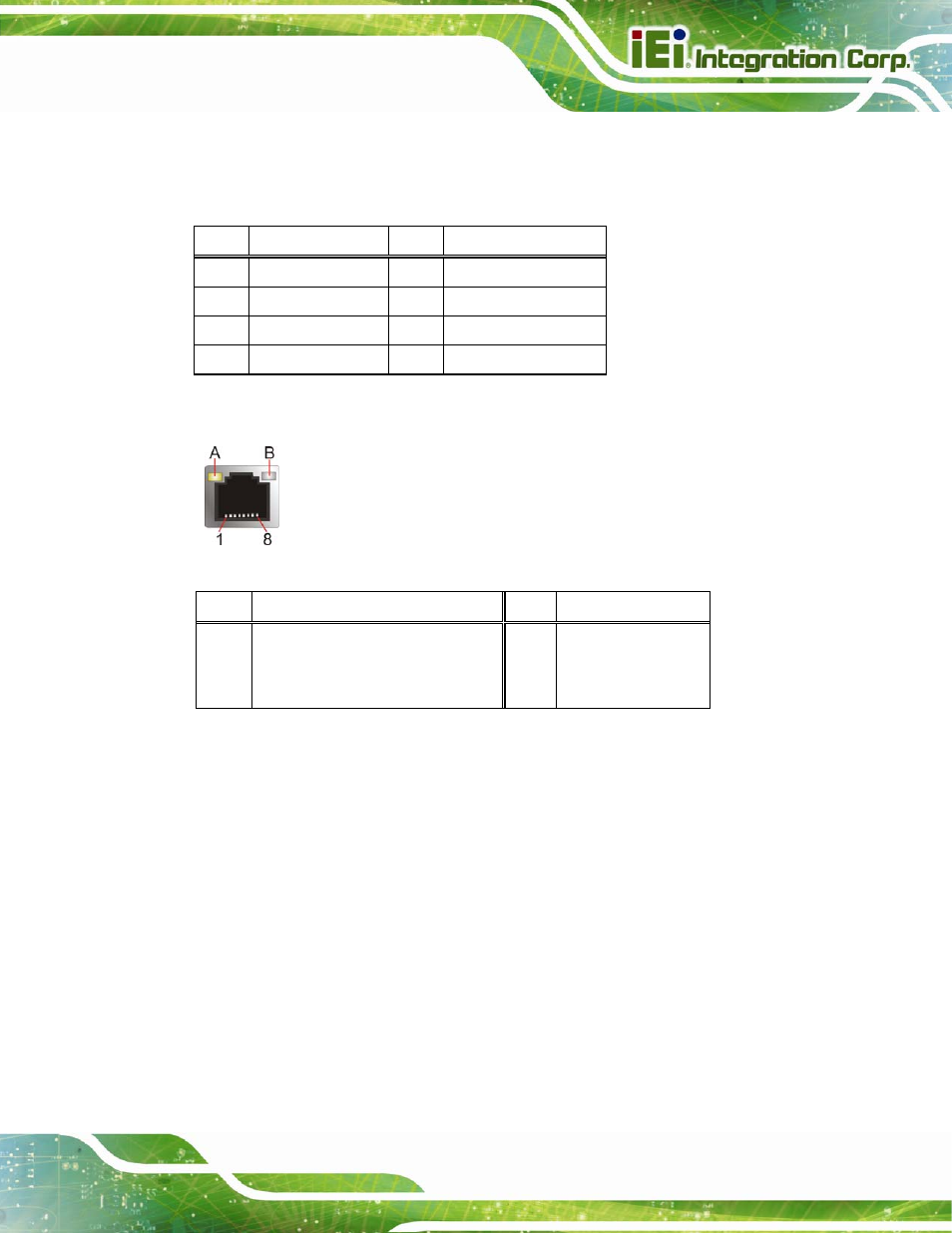

Figure 3-25: Ethernet Connector

LED Description

LED Description

A on:

linked

blinking: data is being sent/received

B

off: 10 Mb/s

green: 100 Mb/s

orange: 1000 Mb/s

Table 3-25: Connector LEDs

3.3.3 HDMI Connectors

CN Label:

HDMI1, HDMI2

CN Type:

HDMI connector

CN Location:

See Figure 3-23

CN Pinouts:

See Table 3-26 and Figure 3-26

The HDMI connector connects to a display device with HDMI interface.
