NANO-QM770 EPIC SBC

Page 38

Pin Description Pin Description

1 HDMI_DATA2 13

N/C

2 GND

14

N/C

3 HDMI_DATA2#

15

HDMI_SCL

4 HDMI_DATA1 16

HDMI_SDA

5 GND

17

GND

6 HDMI_DATA1#

18

+5V

7 HDMI_DATA0 19

HDMI_HPD

8 GND

20

HDMI_GND

9 HDMI_DATA0#

21

HDMI_GND

10 HDMI_CLK

22 HDMI_GND

11 GND

23 HDMI_GND

12 HDMI_CLK#

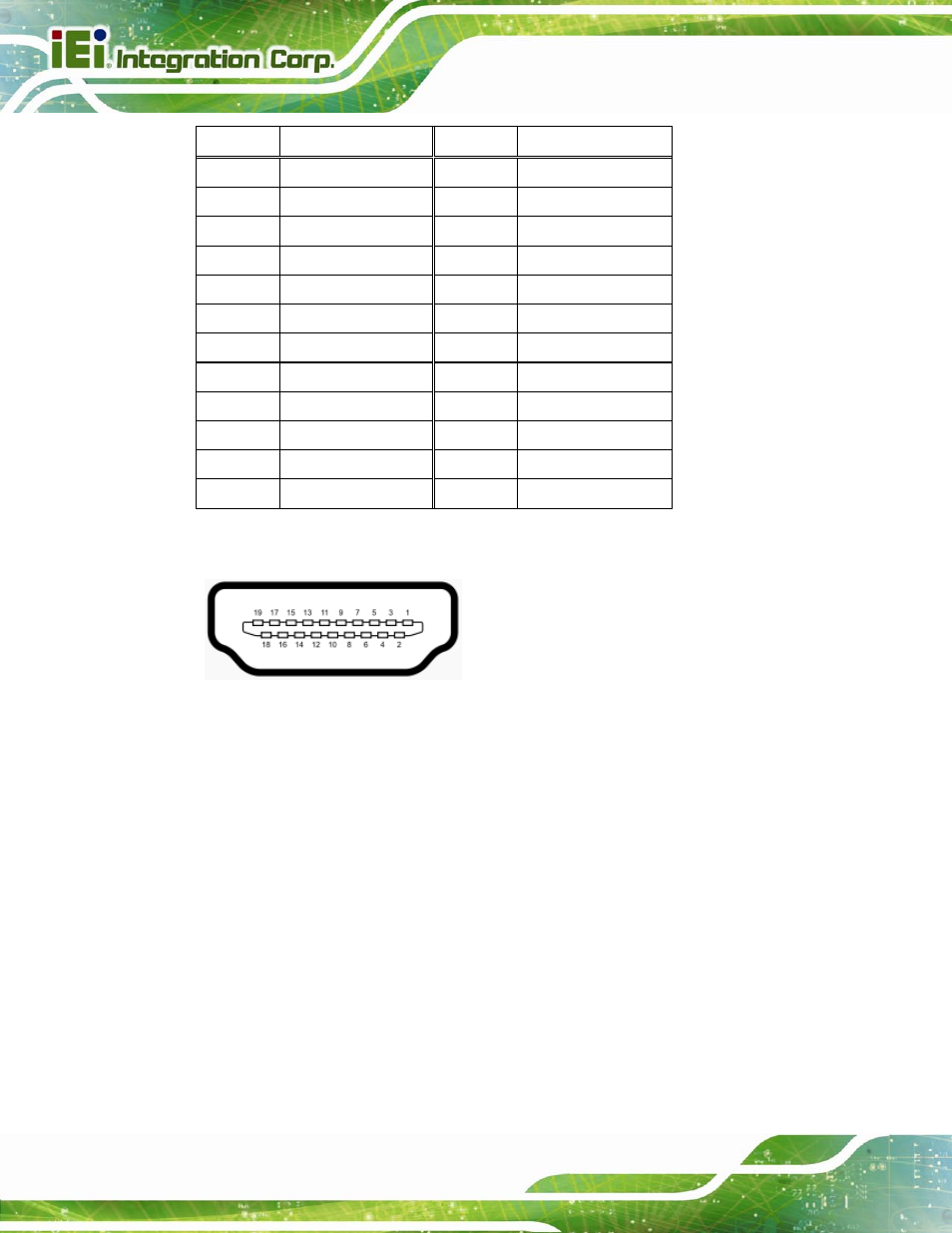

Table 3-26: HDMI Connector Pinouts

Figure 3-26: HDMI Connector

3.3.4 USB 3.0 Connectors

CN Label:

USB_CON1, USB_CON2

CN Type:

USB 3.0 port

CN Location:

See Figure 3-23

CN Pinouts:

See Table 3-27

The USB 3.0 connector can be connected to a USB device.
