NANO-QM770 EPIC SBC
Page 49
4.5.5 LVDS Voltage Selection
Jumper Label: J_VLVDS1
Jumper Type: 3-pin header
Jumper Settings: See Table 4-6
Jumper Location: See Figure 4-7
Selects the voltage of the LVDS connector.
Pin Description
Short 1-2 +3.3 V (Default)
Short 2-3 +5 V
Table 4-6: LVDS Voltage Selection Jumper Settings

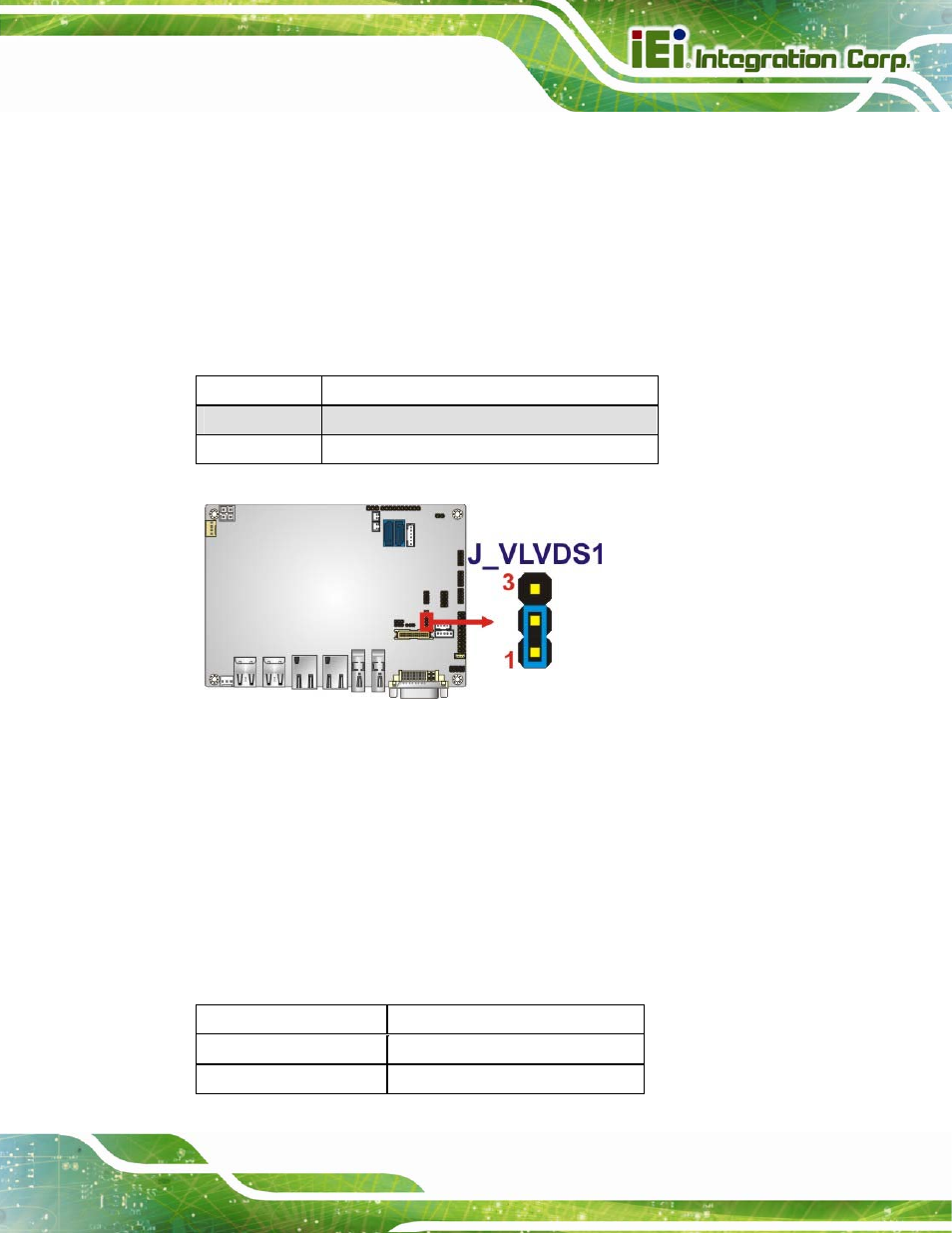

Figure 4-7: LVDS Voltage Selection Jumper Location
4.5.6 LVDS Resolution Selection
Jumper Label: J_PID1
Jumper Type: 8-pin header
Jumper Settings: See Table 4-7
Jumper Location: See Figure 4-8
Selects the resolution of the LCD panel connected to the LVDS connector.
Pin Description
OPEN 640 X 480 (18bit)
1-2 800 X 600 (18bit)
