NANO-QM770 EPIC SBC

Page 47

Pin Description

Short 1-2

Keep CMOS Setup (Default)

Short 2-3

Clear CMOS Setup

Table 4-3: Clear CMOS Jumper Settings

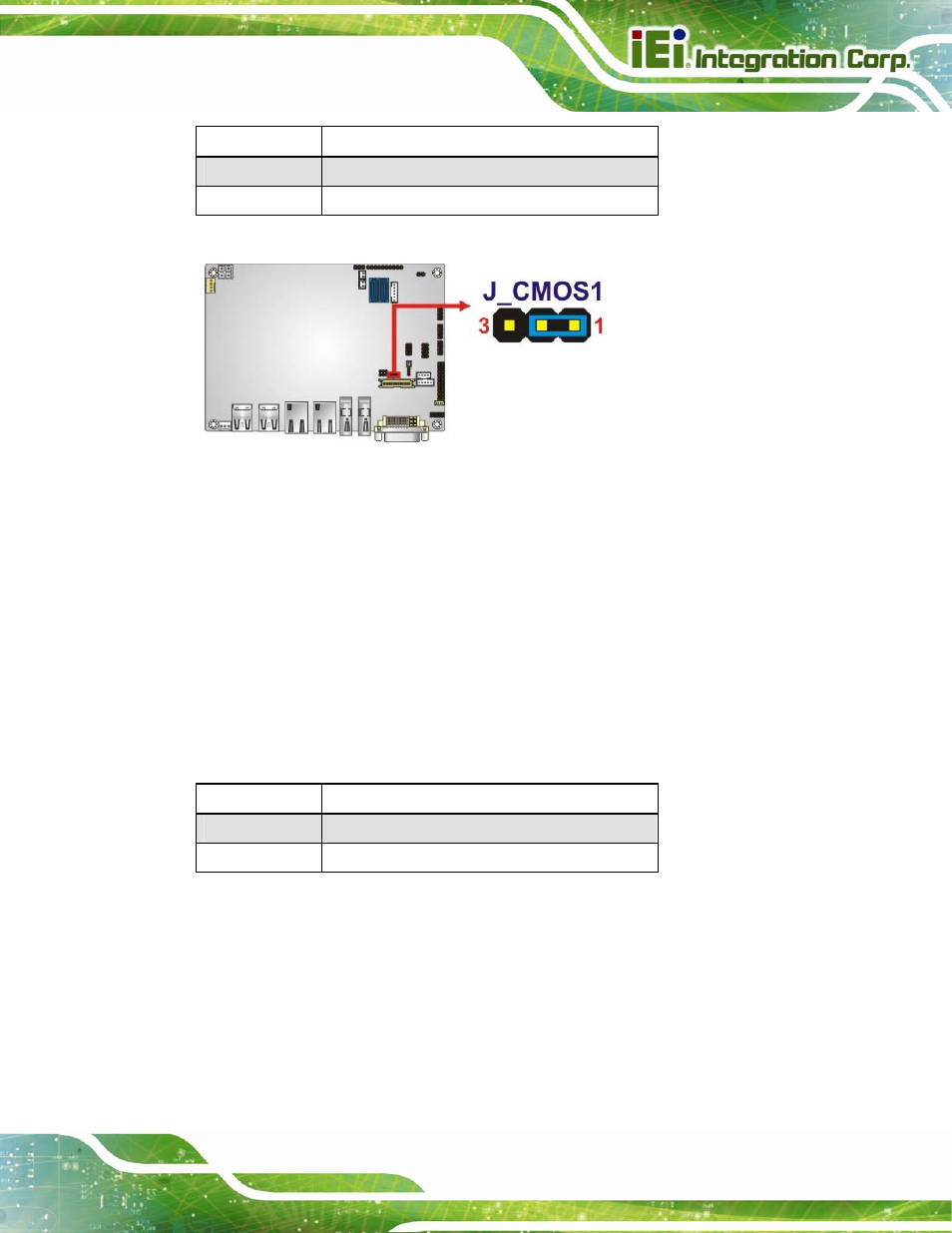

Figure 4-4: Clear CMOS Jumper Location

4.5.3 Clear ME RTC Registers

Jumper Label:

ME_RTC1

Jumper Type:

3-pin header

Jumper Settings:

See Table 4-4

Jumper Location:

See Figure 4-5

Resets the RTC registers used for the Intel® Management Engine when the on-board

battery is changed.

Pin Description

Short 1-2

Save ME RTC registers (Default)

Short 2-3

Clear ME RTC registers

Table 4-4: Clear ME RTC Registers Jumper Settings
