NANO-QM770 EPIC SBC

Page 27

Pin Description

Pin

Description

41 N/C

42

N/C

43 N/C

44

N/C

45 N/C

46

N/C

47 N/C

48

1.5V

49 N/C

50

GND

51 N/C

52

VCC3

Table 3-12: PCIe Mini Card Slot Pinouts

3.2.11 Power Connector (12V)

CN Label:

PWR1

CN Type:

4-pin connector

CN Location:

See Figure 3-13

CN Pinouts:

See Table 3-13

The power connector is connected to an external power supply and supports 12V power

input. Power is provided to the system, from the power supply through this connector.

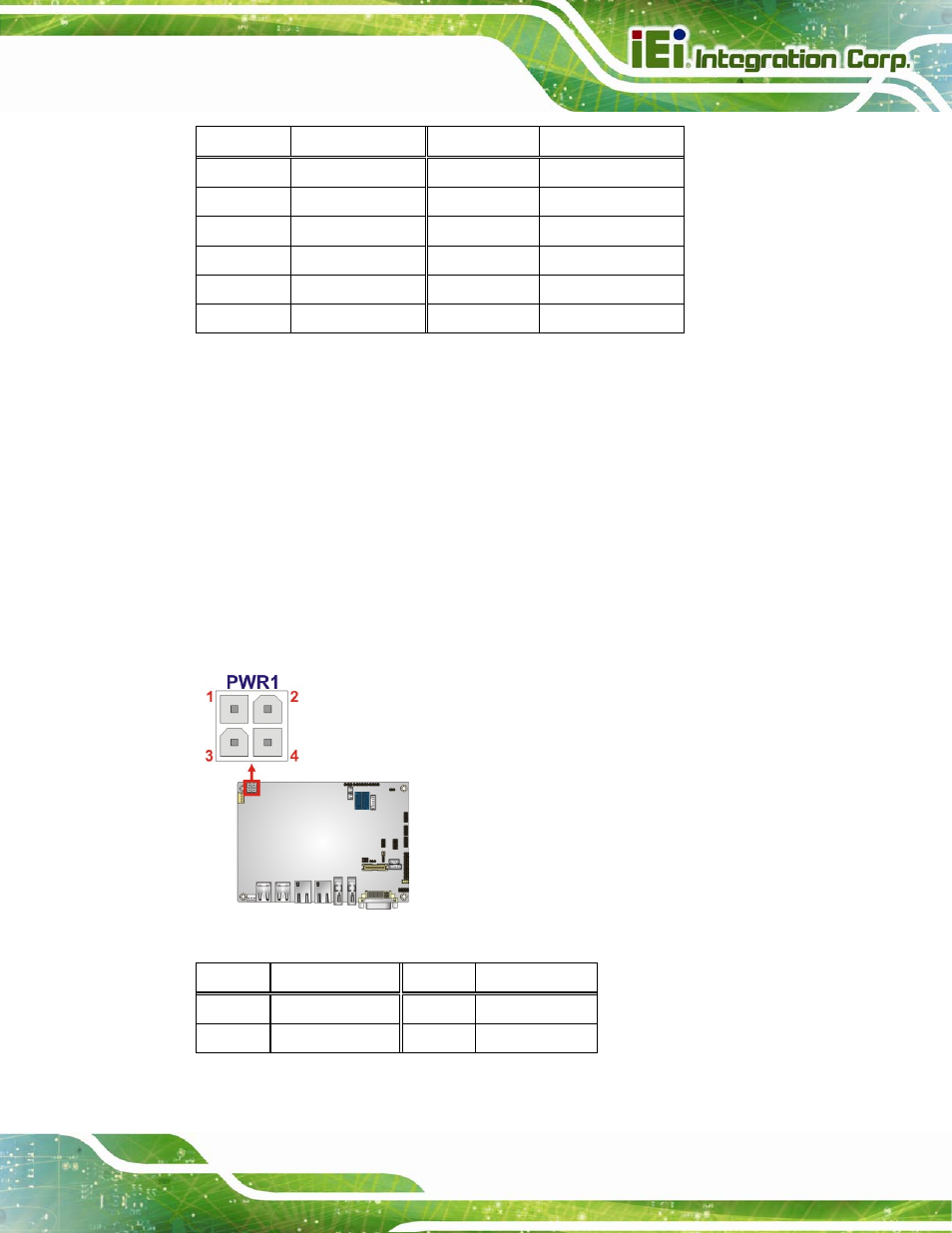

Figure 3-13: Power Connector Location

Pin Description Pin Description

1 Ground

2 Ground

3 +12V

4 +12V

Table 3-13: Power Connector Pinouts
