NANO-QM770 EPIC SBC

Page 23

3.2.7 Keyboard/Mouse Connector

CN Label:

KB_MS1

CN Type:

6-pin wafer

CN Location:

See Figure 3-9

CN Pinouts:

See Table 3-9

The keyboard/mouse connector connects to a PS/2 Y-cable that can be connected to a

PS/2 keyboard and mouse.

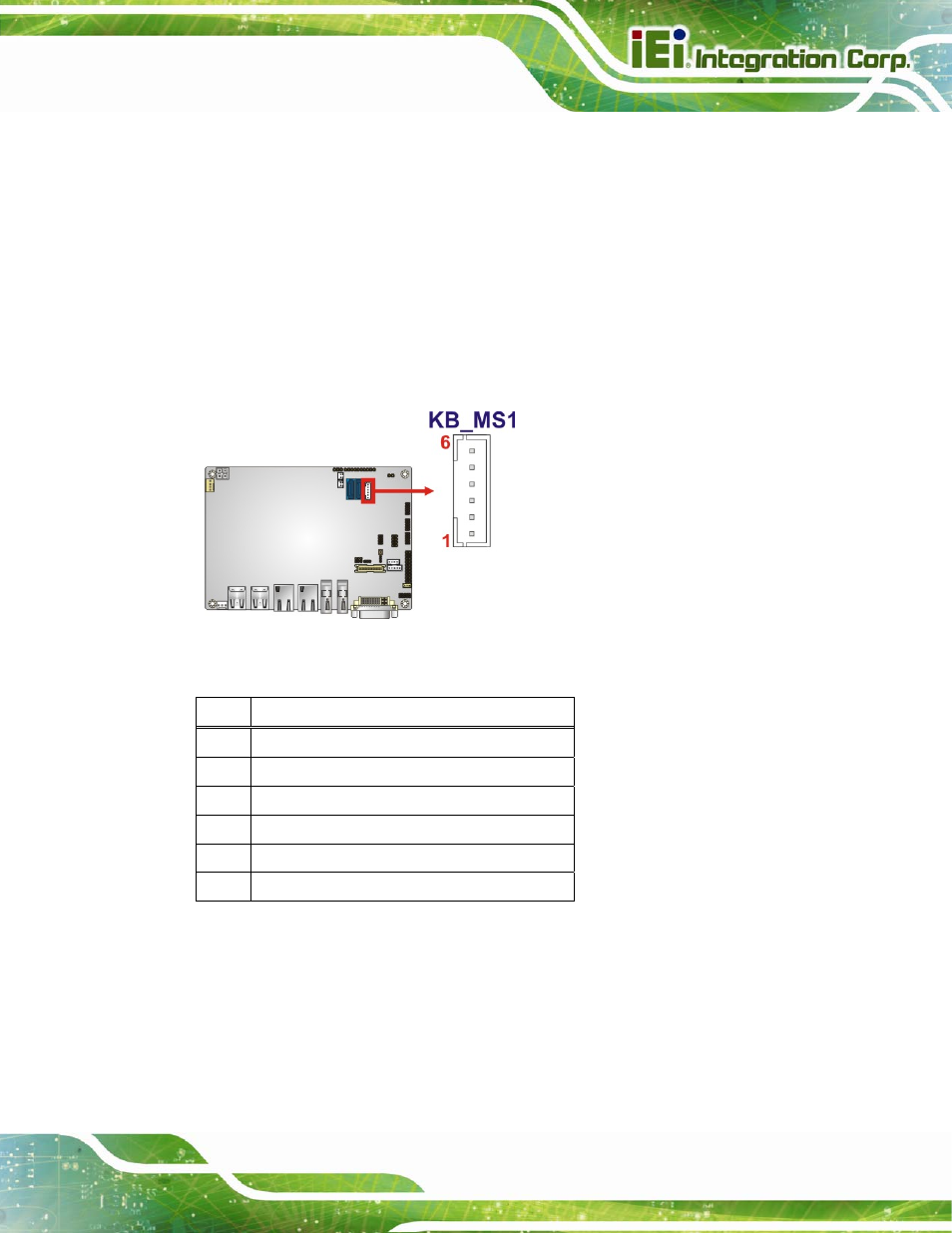

Figure 3-9: Keyboard/Mouse Connector Location

Pin Description

1 VCC5_KBMS

2 Mouse

Data

3 Mouse

Clock

4 Keyboard

Data

5 Keyboard

Clock

6 GND

Table 3-9: Keyboard/Mouse Connector Pinouts

3.2.8 LVDS Connector

CN Label:

LVDS1

CN Type:

30-pin crimp

CN Location:

See Figure 3-10
