NANO-QM770 EPIC SBC

Page 48

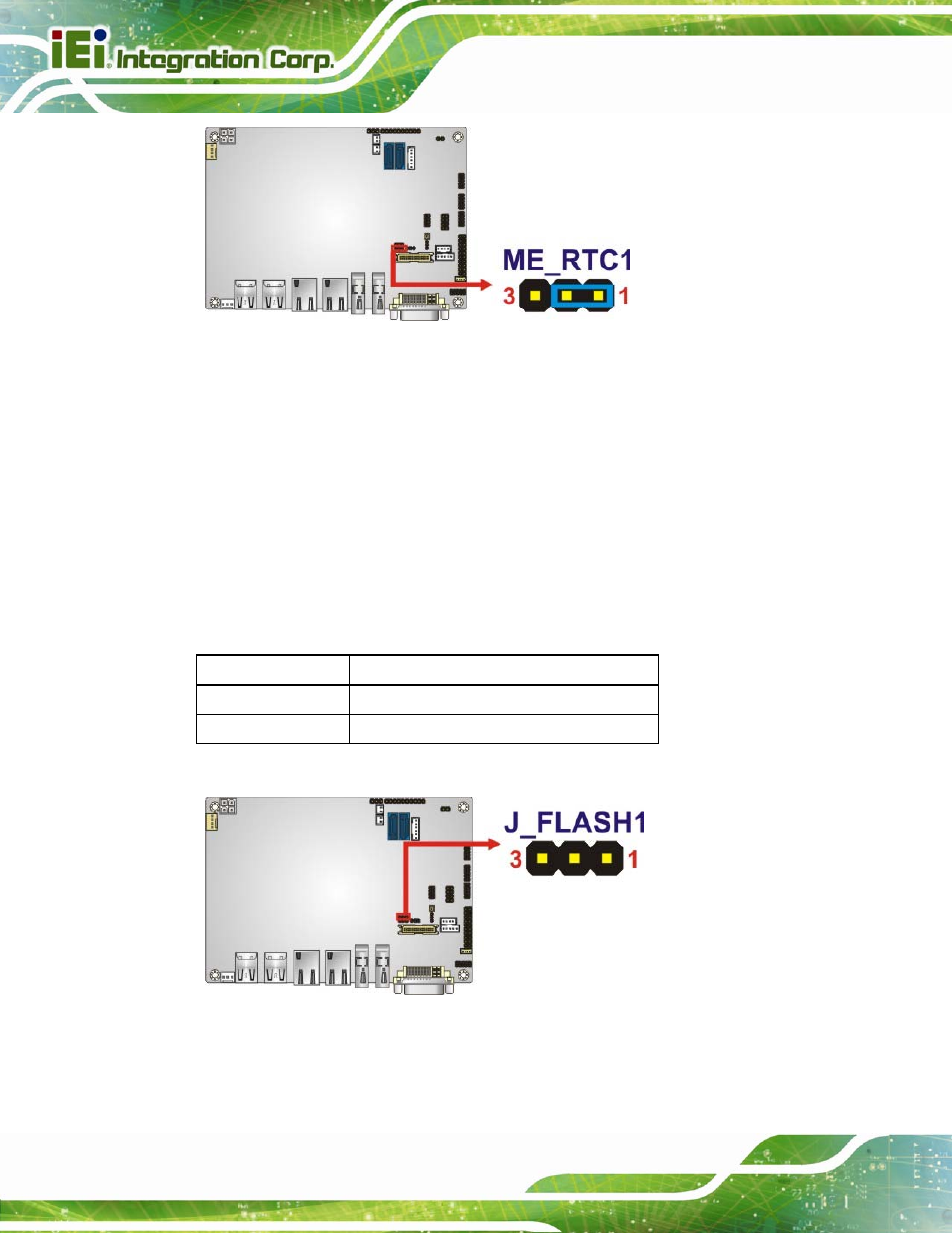

Figure 4-5: Clear ME RTC Registers Jumper Location

4.5.4 Flash Descriptor Security Override

Jumper Label:

J_FLASH1

Jumper Type:

3-pin header

Jumper Settings:

See Table 4-5

Jumper Location:

See Figure 4-6

The Flash Descriptor Security Override jumper specifies whether to override the flash

descriptor.

Setting Description

Short 1-2

No override

Short 2-3

Override

Table 4-5: Flash Descriptor Security Override Jumper Settings

Figure 4-6: Flash Descriptor Security Override Jumper Location
