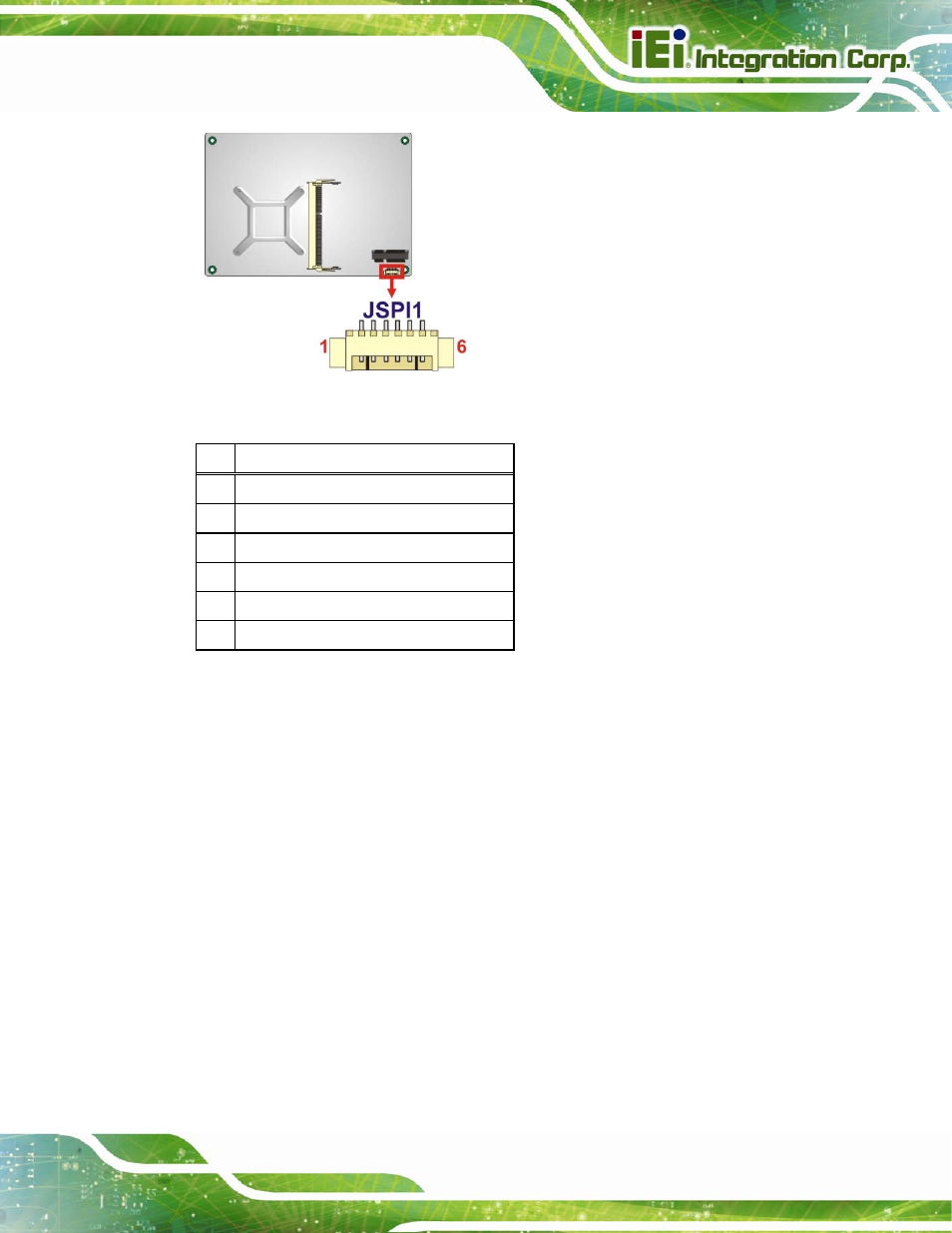

Figure 3-20: SPI Flash Connector Location
Pin Description
1 +V3.3M_SPI_CON
2 SPI_CS
3
SPI_SO_SW
4 SPI_CLK_SW
5 SPI_SI_SW
6 GND
Table 3-20: SPI Flash Connector Pinouts
3.2.19 TPM Connector
CN Label: TPM1
CN Type: 20-pin header
CN Location: See Figure 3-21
CN Pinouts: See Table 3-21
The Trusted Platform Module (TPM) connector secures the system on bootup.
