IMBA-C2260-i2 ATX Motherboard

Page 75

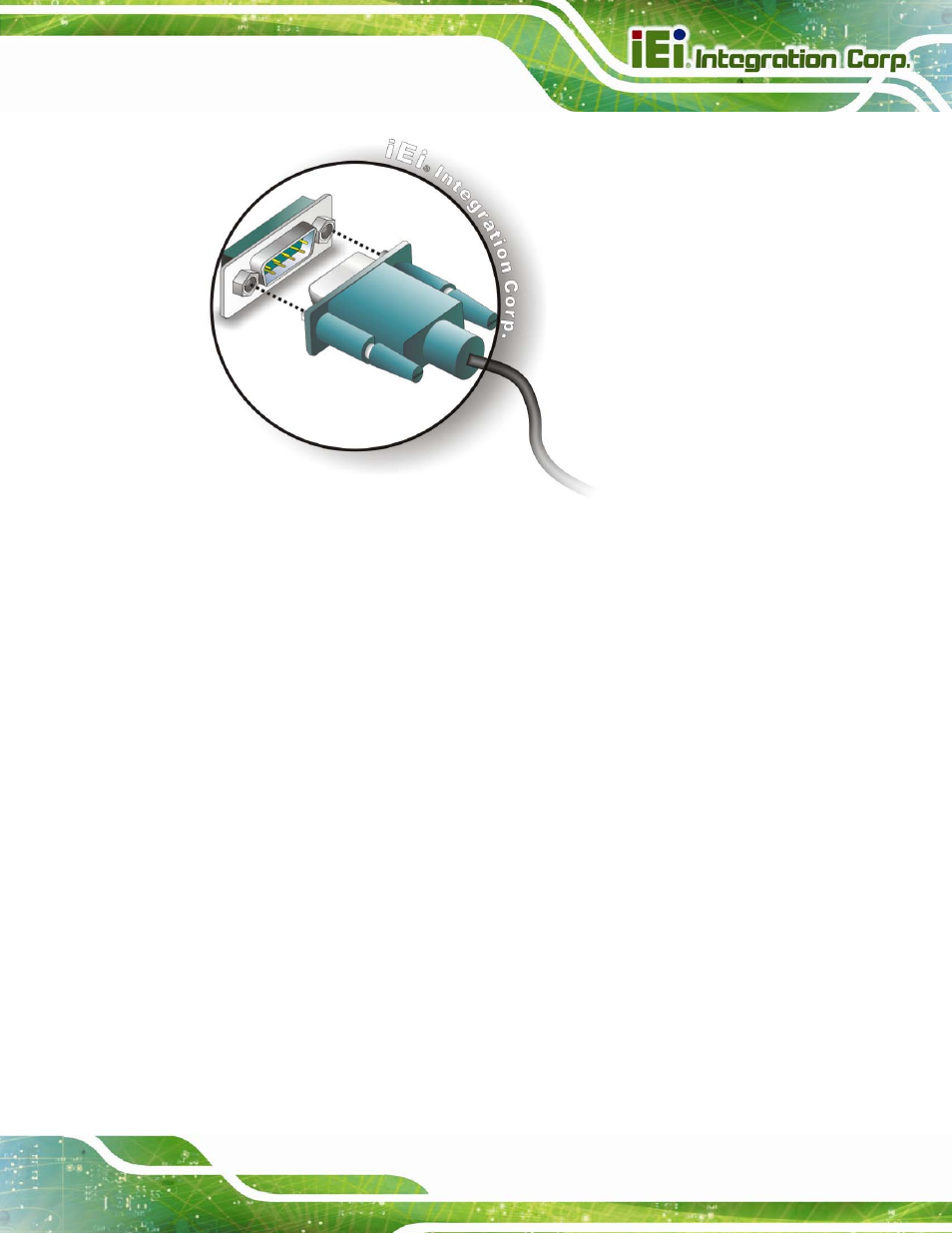

Figure 4-20: Serial Device Connector

Step 3:

Secure the connector. Secure the serial device connector to the external

interface by tightening the two retention screws on either side of the connector.

Step 0:

4.7.5 USB Device Connection

The external USB Series "A" receptacle connectors provide easier and quicker access to

external USB devices. Follow the steps below to connect USB devices to the

IMBA-C2260-i2.

Step 1:

Locate the USB Series "A" receptacle connectors. The locations of the USB

Series "A" receptacle connectors are shown in Chapter 3.

Step 2:

Insert a USB Series "A" plug.

Insert the USB Series "A" plug of a device into

the USB Series "A" receptacle on the external peripheral interface. See

Figure 4-21.

Step 0:
